0362-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Socket Depth [z]	Socket Depth [z]	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Termination	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Contact Finish	Contact Material	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]
Mill-Max Manufacturing Corp. 0362-0-15-15-23-14-10-0	-55 C	125 °C	0.102 in	2.59 mm	0.293 in	7.44 mm	No Tail	0.25 Ám	10 Áin	2.24 mm	0.088 "	0.293 in	7.44 mm	Solder	0.045 "	1.65 mm	0.065 "	1.14 mm	Gold	Beryllium Copper
Mill-Max Manufacturing Corp. 0362-0-15-01-23-01-10-0	-55 C	125 °C	0.102 in	2.59 mm	0.293 in	7.44 mm	No Tail	5.08 Ám	200 Áin	2.24 mm	0.088 "	0.293 in	7.44 mm	Solder	0.045 "	1.65 mm	0.065 "	1.14 mm	Tin-Lead	Beryllium Copper
Mill-Max Manufacturing Corp. 0362-0-15-80-23-14-10-0	-55 C	125 °C	0.102 in	2.59 mm	0.293 in	7.44 mm	No Tail	0.25 Ám	10 Áin	2.24 mm	0.088 "	0.293 in	7.44 mm	Solder	0.045 "	1.65 mm	0.065 "	1.14 mm	Gold	Beryllium Copper

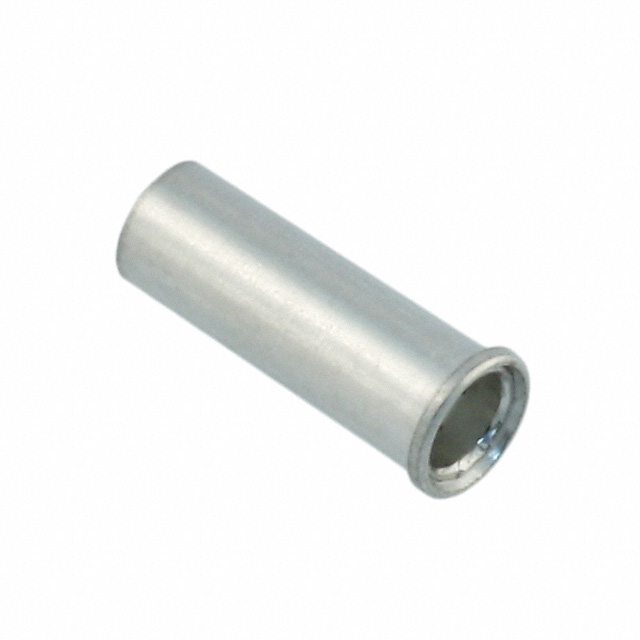

Mill-Max Manufacturing Corp. 0362-0-15-80-23-80-10-0	-55 C	125 °C	0.102 in	2.59 mm	0.293 in	7.44 mm	No Tail	5.08 Ám	200 Áin	2.24 mm	0.088 "	0.293 in	7.44 mm	Solder	0.045 "	1.65 mm	0.065 "	1.14 mm	Tin	Beryllium Copper
Mill-Max Manufacturing Corp. 0362-0-15-01-23-27-10-0	-55 C	125 °C	0.102 in	2.59 mm	0.293 in	7.44 mm	No Tail	0.76 Ám	30 Áin	2.24 mm	0.088 "	0.293 in	7.44 mm	Solder	0.045 "	1.65 mm	0.065 "	1.14 mm	Gold	Beryllium Copper
Mill-Max Manufacturing Corp. 0362-0-15-80-13-14-10-0	-55 C	125 °C	0.102 in	2.59 mm	0.293 in	7.44 mm	No Tail	0.25 Ám	10 Áin	2.24 mm	0.088 "	0.293 in	7.44 mm	Solder					Gold	Beryllium Copper	1.22 mm	0.064 in	0.048 in	1.63 mm
Mill-Max Manufacturing Corp. 0362-0-15-15-13-14-10-0	-55 C	125 °C	0.102 in	2.59 mm	0.293 in	7.44 mm	No Tail	0.25 Ám	10 Áin	2.24 mm	0.088 "	0.293 in	7.44 mm	Solder					Gold	Beryllium Copper	1.22 mm	0.064 in	0.048 in	1.63 mm
Mill-Max Manufacturing Corp. 0362-0-15-01-13-27-10-0	-55 C	125 °C	0.102 in	2.59 mm	0.293 in	7.44 mm	No Tail	0.76 Ám	30 Áin	2.24 mm	0.088 "	0.293 in	7.44 mm	Solder					Gold	Beryllium Copper	1.22 mm	0.064 in	0.048 in	1.63 mm
