R1G220 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

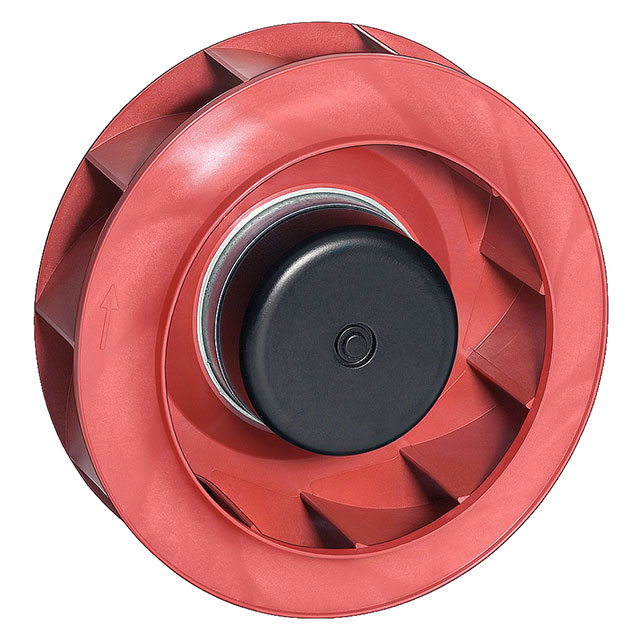

BLOWERS & CENTRIFUGAL FANS DC BACKWARD-CURVED MOTORIZED IMPELLER, 220MM ROUND, 24VDC, 620.9CFM, 106W, 76DBA
| Part | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Air Flow | Air Flow | Material - Blade | Operating Temperature [Min] | Operating Temperature [Max] | Weight | Weight | RPM | Fan Type | Noise | Power (Watts) | Bearing Type | Width | Voltage - Rated | Termination | Approval Agency | Size / Dimension [diameter] | Size / Dimension | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 16 VDC | 28 V | 5 A | 17.39 m³/min | 620.9 CFM | Polyamide (PA) Nylon | -25 °C | 60 °C | 3.1 lbs | 1.4 kg | 3150 RPM | Motorized Impellers | 76 dB(A) | 106 W | Ball | 71 mm | 24 VDC | 4 Wire Leads | CSA UL | 220 mm | Round | PWM Control Speed Sensor (Tach) |
