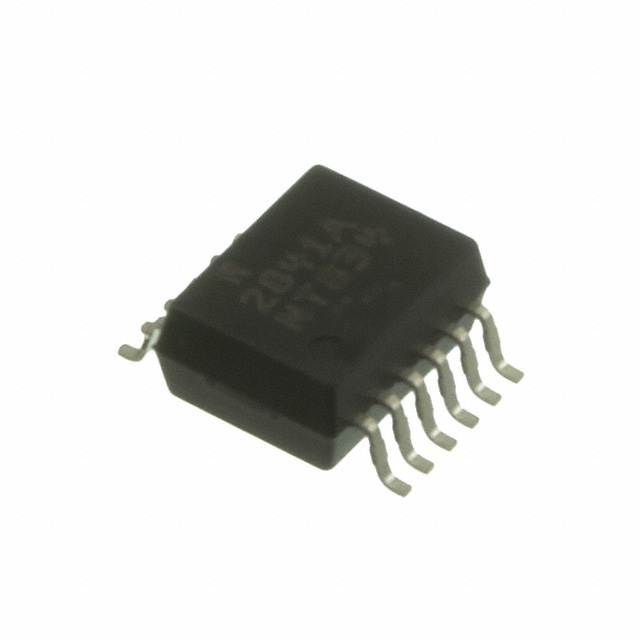

PS2841-4A Series

Ultra-small, 4-Channel, 12-pin, Ultra Shrink SOP Photocoupler

Manufacturer: Renesas Electronics Corporation

Catalog

Ultra-small, 4-Channel, 12-pin, Ultra Shrink SOP Photocoupler

Part	Voltage - Isolation	Voltage - Output (Max) [Max]	Package / Case	Package / Case	Package / Case	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Mounting Type	Vce Saturation (Max) [Max]	Input Type	Number of Channels	Current - DC Forward (If) (Max) [Max]	Output Type	Current - Output / Channel [custom]	Current Transfer Ratio (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Current Transfer Ratio (Min) [Min]
Renesas Electronics Corporation PS2841-4A-AX	1500 VAC	70 V	0.173 in	12-BSOP	4.4 mm	12-SSOP	1.1 V	110 µs	20 µs	Surface Mount	300 mV	DC	4	20 mA	1.81 mOhm	20 mA	400 %	100 °C	-40 °C	100 %
Renesas Electronics Corporation PS2841-4A-F3-AX	1500 VAC	70 V	0.173 in	12-BSOP	4.4 mm	12-SSOP	1.1 V	110 µs	20 µs	Surface Mount	300 mV	DC	4	20 mA	1.81 mOhm	20 mA	400 %	100 °C	-40 °C	100 %

Catalog

Ultra-small, 4-Channel, 12-pin, Ultra Shrink SOP Photocoupler

Description

The PS2841-4A and PS2841-4B are optically coupled isolators containing GaAs light emitting diodes and NPN silicon phototransistors. These products include four channels in a single package for high-density mounting applications. The PS2841-4A and PS2841-4B are the world's smallest class of photocouplers and realize about 50%reduction in mounting area compared with the PS280x and PS281x Series.
