PHB.2B Series
Manufacturer: LEMO
Beta
⌘K
CONN RCPT FMALE 2P GOLD SLDR CUP
| Part | Primary Material | Connector Type | Insert Material | Number of Positions | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Current Rating (Amps) | Backshell Material, Plating | Contact Finish - Mating | Features | Fastening Type | Shell Material | Material Flammability Rating | Shell Finish | Orientation | Color | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Ingress Protection | Shielding | Termination | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Metal | Receptacle Female Sockets | Polyetheretherketone (PEEK) | 2 | Bronze | 59 Áin | 1.5 Ám | Free Hanging (In-Line) | 0.122 in | 0.157 in | 4 mm | 3.1 mm | 25 A | Brass Chrome | Gold | Backshell | Push-Pull | Brass | UL94 V-0 | Chrome | B | Silver | -55 °C | 250 °C | 302 | IP50 | Shielded | ||||||

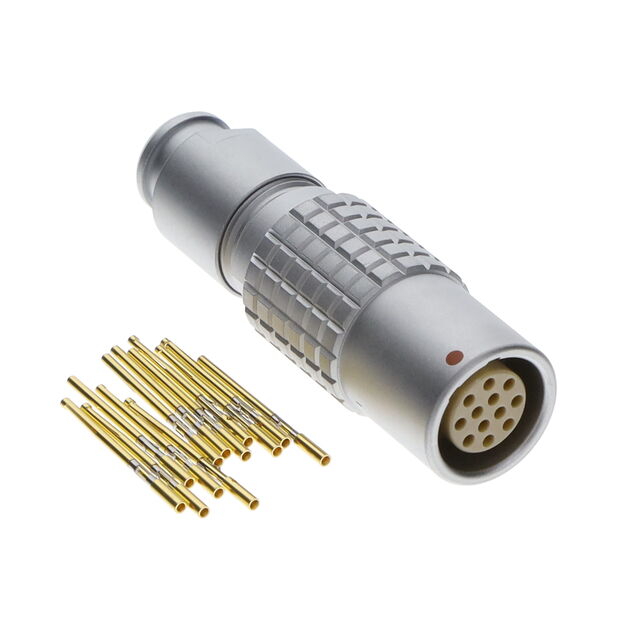

Metal | Receptacle Female Sockets | Polyetheretherketone (PEEK) | 12 | Bronze | 59 Áin | 1.5 Ám | Free Hanging (In-Line) | 7 A | Brass Chrome | Gold | Backshell | Push-Pull | Brass | UL94 V-0 | Chrome | B | Silver | -55 °C | 250 °C | 312 | IP50 | Shielded | Crimp | 6.2 mm | 5.2 mm | 0.205 in | 0.244 in |
