0973-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

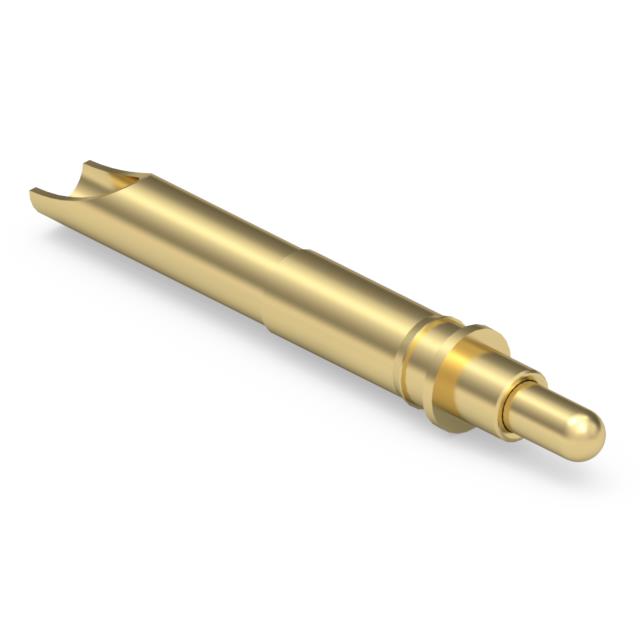

CONTACT SPRING LOADED IN-LINE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Recommended Working Height | Recommended Working Height | Maximum Working Height [Max] | Maximum Working Height [Max] | Current Rating (Amps) | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Operating Force - Mid Compression | Contact Type | Features | Mating Cycles | Plunger Size [diameter] | Plunger Size [diameter] | Contact Material | Minimum Working Height | Minimum Working Height | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.105 in | 2.66 mm | 0.145 in | 3.68 mm | 5.2 A | 0.085 in | 2.16 mm | 20 µin | 0.51 µm | Solder Cup Through Hole | 60 gf | Sleeve & Plunger (Pogo Pins) | 20 AWG | 1000000 | 0.042 in | 1.07 mm | Brass Alloy | 1.65 mm | 0.065 " | Gold |
