AFE78101 Series

Single-channel 14-bit voltage analog front end (AFE) for sensor transmitters

Catalog

Single-channel 14-bit voltage analog front end (AFE) for sensor transmitters

Part	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Mounting Type	Package / Case	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Number of Bits	Number of Channels [custom]

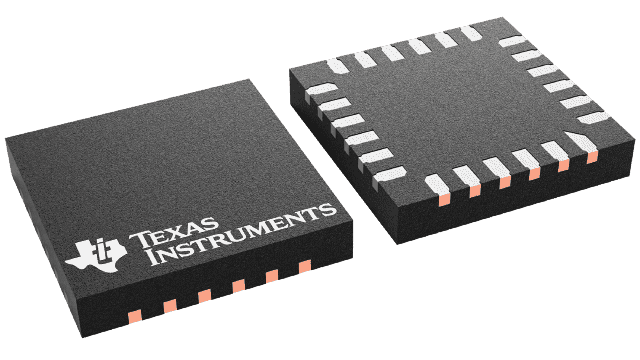

Texas Instruments AFE78101RRUR	4	24-UQFN	4	Surface Mount	24-WFQFN	1.71 V	5.5 V	1.89 V	1.71 V	12 14 16	2
Texas Instruments AFE78101RRUT	4	24-UQFN	4	Surface Mount	24-WFQFN	1.71 V	5.5 V	1.89 V	1.71 V	12 14 16	2

Catalog

Single-channel 14-bit voltage analog front end (AFE) for sensor transmitters

Key Features

• Functional Safety-CapableDocumentation available to aid functional safety system design:AFE88101,AFE78101Low quiescent current: 170 µA (typ)16-bit or 14-bit monotonic high-performance DAC1.8-V supply: 0.15 V to 1.25 V, 0.2 V to 1.0 V5-V supply: 0.3 V to 2.5 V, 0.4 V to 2.0 V4-LSB INL at 16 bits0.07% FSR (max) TUE from –40°C to +125°C12-bit 3.84-kSPS ADC for advanced diagnosticsIntegrated 1.25-V reference at 10 ppm/°CInternal 1.2288-MHz oscillator with clock outputDigital interfaces:Serial peripheral interface (SPI)Universal asynchronous receiver-transmitter (UART)Fault detection: CRC bit error checking, windowed watchdog timer, diagnostic ADCWide operating temperature: –55°C to +125°CFunctional Safety-CapableDocumentation available to aid functional safety system design:AFE88101,AFE78101Low quiescent current: 170 µA (typ)16-bit or 14-bit monotonic high-performance DAC1.8-V supply: 0.15 V to 1.25 V, 0.2 V to 1.0 V5-V supply: 0.3 V to 2.5 V, 0.4 V to 2.0 V4-LSB INL at 16 bits0.07% FSR (max) TUE from –40°C to +125°C12-bit 3.84-kSPS ADC for advanced diagnosticsIntegrated 1.25-V reference at 10 ppm/°CInternal 1.2288-MHz oscillator with clock outputDigital interfaces:Serial peripheral interface (SPI)Universal asynchronous receiver-transmitter (UART)Fault detection: CRC bit error checking, windowed watchdog timer, diagnostic ADCWide operating temperature: –55°C to +125°C

Description

The 16-bit AFE88101 and 14-bit AFE78101 ( AFEx8101) are highly-integrated, high-accuracy, extremely low-power digital-to-analog converters (DACs) with voltage outputs designed for sensor-transmitter applications. The AFEx8101 devices include most of the components required to design a 4‑mA to 20‑mA, 2‑wire (loop-powered) sensor transmitter. In addition to the highly accurate DAC, these devices include a 10‑ppm/°C voltage reference and a diagnostic analog-to-digital converter (ADC). To accommodate intrinsic and functional-safety concerns, external voltage-to-current conversion and power regulation are required. The internal diagnostic ADC is multiplexed to several internal nodes that enable an automatic self-health check. This check is capable of detecting errors or malfunctions of the internal bias sources, power regulator, voltage reference, DAC output, die temperature, and optional external voltage source. If any fault is detected from the diagnostic ADC, CRC frame-error checking, or windowed watchdog timer, the devices can optionally issue an interrupt, enter a fail-safe state corresponding to a standard NAMUR output value or user-specified custom value, or both. These devices operate from supplies as low as 1.71 V with a maximum quiescent current of 210 µA. The devices are specified over the temperature range of –40°C to +125°C, but are functional from –55°C to +125°C. The 16-bit AFE88101 and 14-bit AFE78101 ( AFEx8101) are highly-integrated, high-accuracy, extremely low-power digital-to-analog converters (DACs) with voltage outputs designed for sensor-transmitter applications. The AFEx8101 devices include most of the components required to design a 4‑mA to 20‑mA, 2‑wire (loop-powered) sensor transmitter. In addition to the highly accurate DAC, these devices include a 10‑ppm/°C voltage reference and a diagnostic analog-to-digital converter (ADC). To accommodate intrinsic and functional-safety concerns, external voltage-to-current conversion and power regulation are required. The internal diagnostic ADC is multiplexed to several internal nodes that enable an automatic self-health check. This check is capable of detecting errors or malfunctions of the internal bias sources, power regulator, voltage reference, DAC output, die temperature, and optional external voltage source. If any fault is detected from the diagnostic ADC, CRC frame-error checking, or windowed watchdog timer, the devices can optionally issue an interrupt, enter a fail-safe state corresponding to a standard NAMUR output value or user-specified custom value, or both. These devices operate from supplies as low as 1.71 V with a maximum quiescent current of 210 µA. The devices are specified over the temperature range of –40°C to +125°C, but are functional from –55°C to +125°C.
