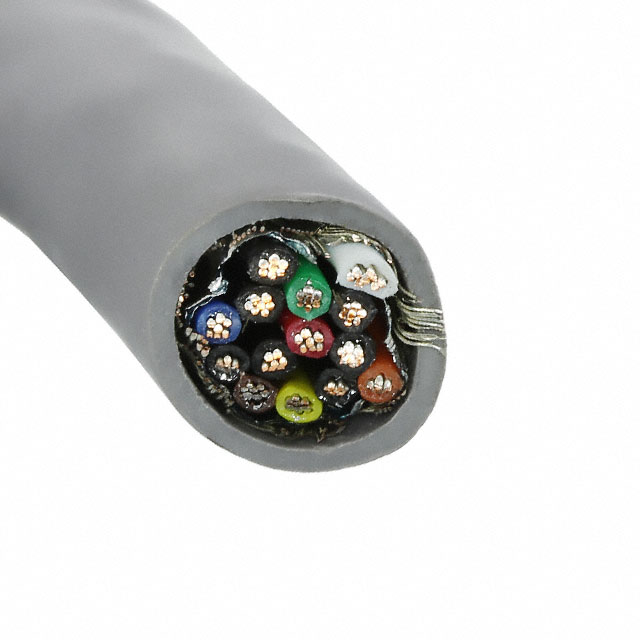

6378 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 14COND 22AWG 100'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Length [x] | Length [x] | Shield Type | Jacket (Insulation) Material | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Jacket Color | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Features | Number of Conductors | Conductor Insulation | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 0.813 mm | 0.032 in | 28 AWG | 7 | Copper Tinned | 100 ft | 30.5 m | Braid Foil | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 80 °C | -20 ░C | Multi-Pair | Slate | 22 AWG | 0.337 " | 8.56 mm | 300 VDC | Drain Wire | 14 | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 0.813 mm | 0.032 in | 28 AWG | 7 | Copper Tinned | Braid Foil | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 80 °C | -20 ░C | Multi-Pair | Slate | 22 AWG | 0.337 " | 8.56 mm | 300 VDC | Drain Wire | 14 | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft |
