KAS Series

Manufacturer: E-Switch

Catalog

DIP SWITCHES / SIP SWITCHES 3 POSITION PC PIN EXTENDED TAPE SEALED

Part	Mechanical Life	Electrical Life	Length [x]	Length [x]	Body Material	Height Above Board [z]	Height Above Board [z]	Actuator Level	Actuator Type	Voltage Rating	Current Rating (Amps)	Contact Material	Termination Style	Circuit	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Features	Contact Finish	Number of Positions	Length	Length	Height Above Board	Height Above Board
E-Switch KAS1103ET	2000 Cycles	2000 Steps	0.354 in	8.99 mm	Polybutylene Terephthalate (PBT) Glass Filled	6.99 mm	0.275 in	Raised	Slide (Standard)	24 VDC	25 mA	Phosphor Bronze	PC Pin	SPST	Through Hole	85 °C	-40 C	2.54 mm	0.1 "	Tape Seal	Gold
E-Switch KAS1107E	2000 Cycles	2000 Steps	0.754 in	19.14 mm	Polybutylene Terephthalate (PBT) Glass Filled	6.99 mm	0.275 in	Raised	Slide (Standard)	24 VDC	25 mA	Phosphor Bronze	PC Pin	SPST	Through Hole	85 °C	-40 C	2.54 mm	0.1 "		Gold	7
E-Switch KAS1109E	2000 Cycles	2000 Steps			Polybutylene Terephthalate (PBT) Glass Filled	6.99 mm	0.275 in	Raised	Slide (Standard)	24 VDC	25 mA	Phosphor Bronze	PC Pin	SPST	Through Hole	85 °C	-40 C	2.54 mm	0.1 "		Gold	9	24.23 mm	0.954 in

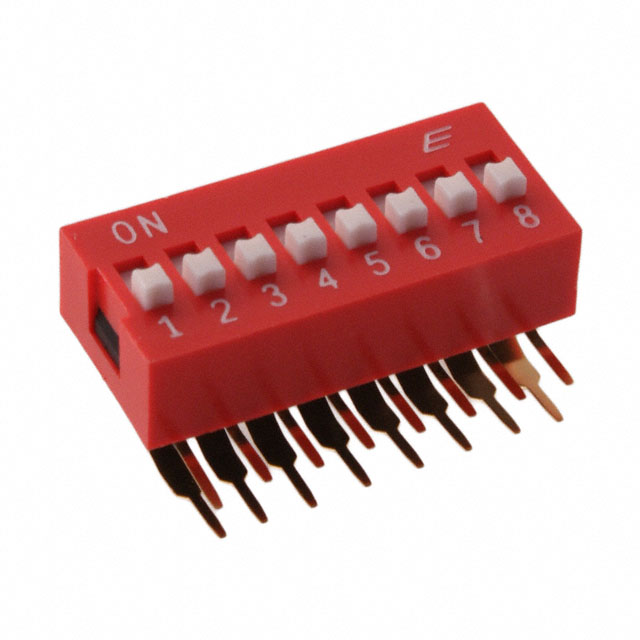

E-Switch KAS2108ET	2000 Cycles	2000 Steps			Polybutylene Terephthalate (PBT) Glass Filled			Raised	Slide (Standard)	24 VDC	25 mA	Phosphor Bronze	PC Pin	SPST	Right Angle Through Hole	85 °C	-40 C	2.54 mm	0.1 "	Tape Seal	Gold	8	21.7 mm	0.854 in	0.39 in	9.9 mm
E-Switch KAS2105ET								Raised	Slide (Standard)	24 VDC	25 mA	Phosphor Bronze	PC Pin	SPST	Right Angle Through Hole	85 °C	-40 C	2.54 mm	0.1 "	Tape Seal	Gold	5			0.39 in	9.9 mm
