sk Series
Manufacturer: NKK Switches
Beta
⌘K

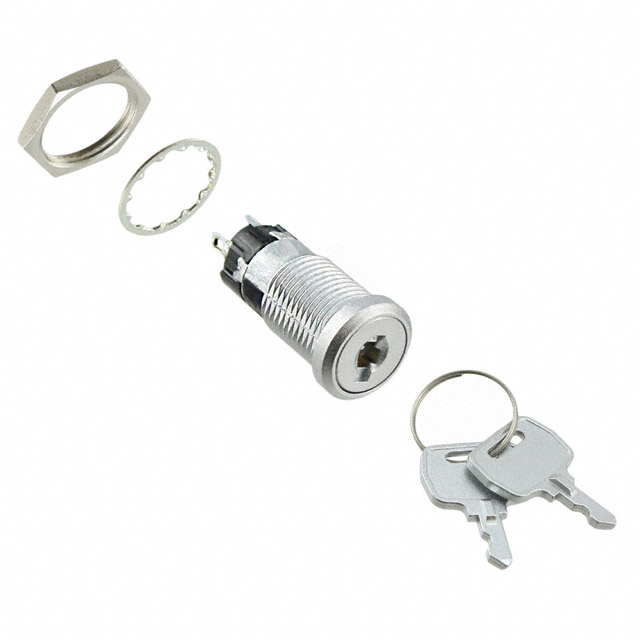

KEYLOCK SWITCH, ON-OFF-ON, SPDT, SK SERIES, 3 POSITION, SOLDER, 3 A
| Part | Mechanical Life | Depth Behind Flange | Electrical Life | Circuit | Termination Style | Key Removable Positions | Mounting Type | Contact Material | Switch Function | Voltage Rating - AC | Current Rating (Amps) | Angle of Throw | Operating Temperature [Min] | Operating Temperature [Max] | Panel Cutout Dimensions [diameter] | Contact Timing | Features | Actuator Type | Voltage Rating - DC | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 30000 Steps | 27 mm | 10000 Cycles | SPDT | Solder Lug | All | Panel Mount | Silver (Ag) | On-Off-On | 125 V | 3 A | 45 ° | -25 °C | 70 °C | 12 mm | Non-Shorting (BBM) | Epoxy Sealed Terminals | Flat Key | ||
 NKK Switches | SP3T | PC Pin | All | Through Hole | Beryllium Copper | On-On-On | 28 V | 0.4 VA | 45 ° | -25 °C | 70 °C | Non-Shorting (BBM) | Antistatic Process Sealed | Flat Key | 28 V | Tin |
