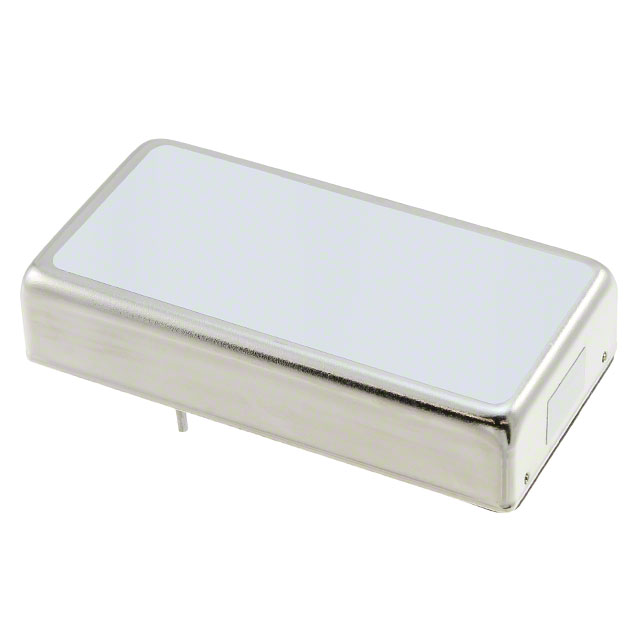

AEE00CC Series

Catalog

DC DC CONVERTER +/-15V 10W

Part	Features	Type	Applications	Package / Case	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Voltage - Input (Min) [Min]	Current - Output (Max)	Mounting Type	Voltage - Input (Max) [Max]	Number of Outputs	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1	Efficiency

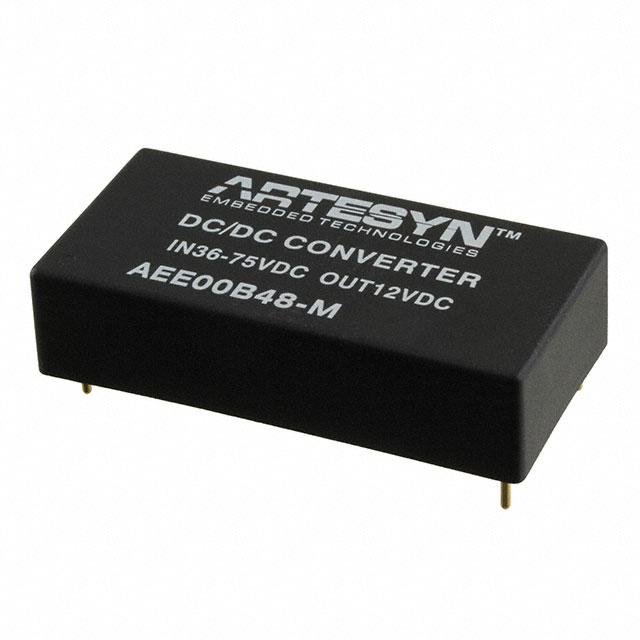

ARTESYN / Advanced Energy AEE00CC48-M	OCP OTP OVP SCP	Isolated Module	ITE (Commercial) Medical	5-DIP Module	-15 V	85 °C	-40 C	4.2 kV	36 V	333 mA	Through Hole	75 V	2	10 W	0.47 "	25.4 mm	1 "	50.8 mm	2 in	11.8 mm	15 V
ARTESYN / Advanced Energy AEE00CC36-LS	SCP	Isolated Module	ITE (Commercial)	5-DIP Module	-15 V	71 °C	-40 C	1.5 kV	18 V	500 mA	Through Hole	75 V	2	15 W	0.44 in	25.4 mm	1 "	50.8 mm	2 in	11.3 mm	15 V	84 %
ARTESYN / Advanced Energy AEE00CC18-LS	SCP	Isolated Module	ITE (Commercial)	5-DIP Module	-15 V	71 °C	-40 C	1.5 kV	9 V	500 mA	Through Hole	36 V	2	15 W	0.44 in	25.4 mm	1 "	50.8 mm	2 in	11.3 mm	15 V	84 %
