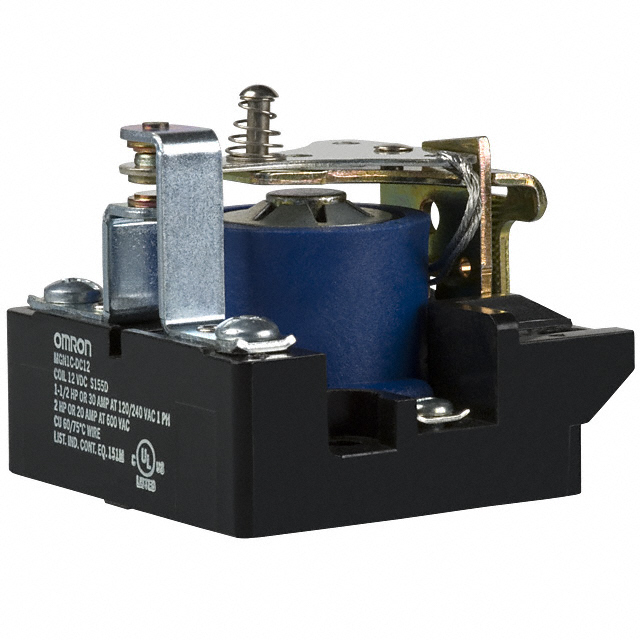

MGN1C Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 30A 120V
| Part | Coil Type | Must Operate Voltage | Relay Type | Mounting Type | Coil Resistance | Coil Voltage | Load - Max Switching | Operate Time | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Contact Rating (Current) | Termination Style | Switching Voltage | Release Time | Coil Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Non Latching | 102 VAC | General Purpose | Chassis Mount | 295 Ohms | 120 VAC | 840 W 18000 VA | 30 ms | SPDT (1 Form C) | -45 °C | 80 C | 30 A | Screw Terminal | 28 VDC 600 VAC | 30 ms | Class F |
