1658613 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

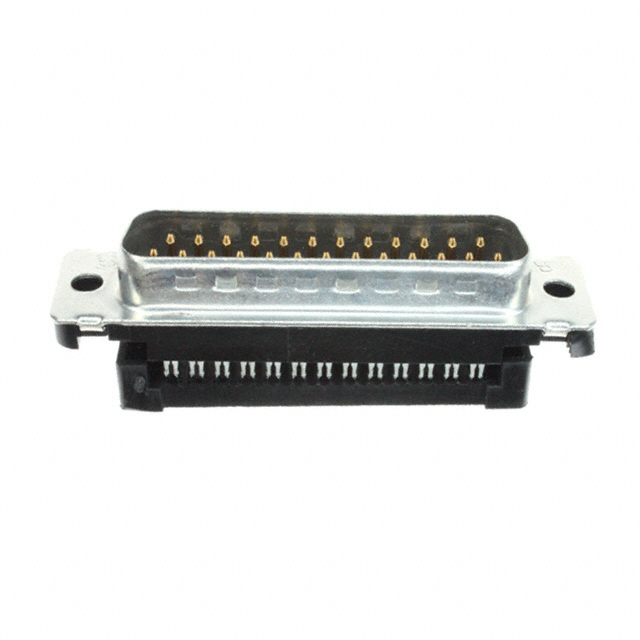

CONN D-SUB PLUG 25POS IDC
| Part | Flange Feature | Number of Rows | Connector Type | Material Flammability Rating | Dielectric Material | Color | Mounting Type | Current Rating (Amps) | Contact Type | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Connector Style | Termination | Features | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Material | Wire Gauge [Min] | Wire Gauge [Max] | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Housing/Shell (Unthreaded) | 2 | Male Pins Plug | UL94 V-0 | Thermoplastic | Black | Free Hanging (In-Line) | 1.25 A | Signal | Gold | 105 ░C | -55 °C | D-Sub | IDC Ribbon Cable | Feed Through Grounding Indents | B DB | 3 | Phosphor Bronze | 26 AWG | 28 AWG | Solid Stranded |
