D413 Series

Catalog

MICROSWITCH, SNAP ACTION, STRAIGHT LEVER, SPDT, QUICK CONNECT, 500 MA, 30 VDC

Part	Circuit	Switch Function	Mounting Type	Operating Force	Pretravel	Pretravel	Overtravel [custom]	Overtravel [custom]	Release Force	Termination Style	Electrical Life	Features	Voltage Rating - AC	Operating Position	Operating Position	Actuator Type	Current Rating (Amps)	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Differential Travel	Differential Travel

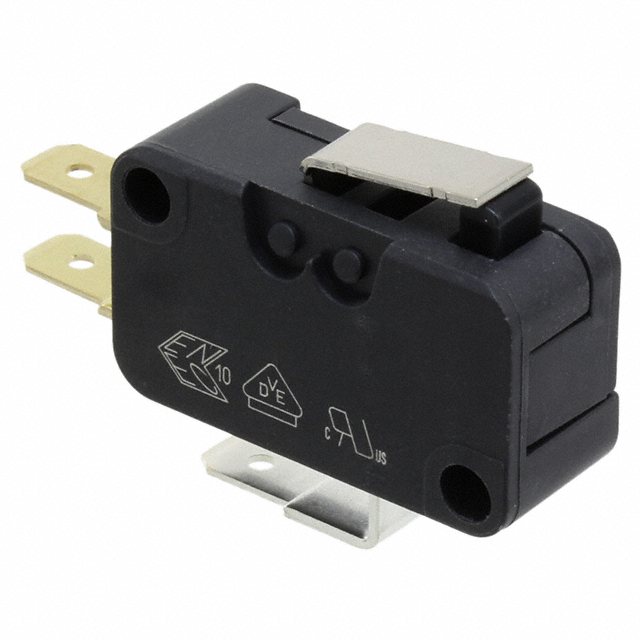

ZF Electronics D413-R1LA-G2	SPDT	On-Mom	Chassis Mount	194 gf	1.2 mm	0.047 in	0.035 "	0.9 mm	46 gf	Quick Connect	50000 Cycles	Explosion Proof	250 V	0.6 in	15.2 mm	Lever Straight	100 mA 500 mA	30 V	85 °C	-40 C	0.012 in	0.3 mm

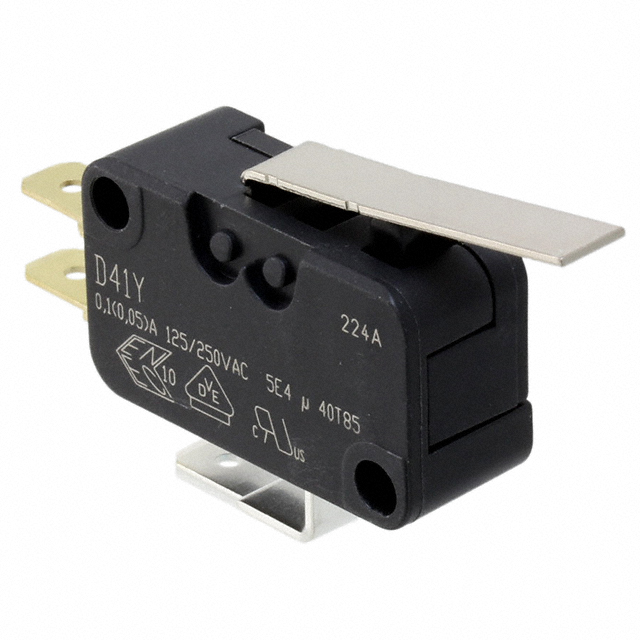

ZF Electronics D413-R1LD-G2	SPDT	On-Mom	Chassis Mount	88 gf	3.2 mm	0.125 in	0.09 "	2.3 mm	20 gf	Quick Connect	50000 Cycles	Explosion Proof	250 V	0.6 in	15.2 mm	Lever Straight	100 mA 500 mA	30 V	85 °C	-40 C	0.031 in	0.8 mm
ZF Electronics D413-R1RA-G2	SPDT	On-Mom	Chassis Mount	194 gf	1.2 mm	0.047 in	0.039 "	1 mm	41 gf	Quick Connect	50000 Cycles	Explosion Proof	250 V	0.806 in	20.5 mm	Lever Roller	100 mA 500 mA	30 V	85 °C	-40 C	0.016 in	0.4 mm
ZF Electronics D413-R1AA-G2	SPDT	On-Mom	Chassis Mount	173 gf	1.2 mm	0.047 in	0.051 "	1.3 mm	46 gf	Quick Connect	50000 Cycles	Explosion Proof	250 V	0.579 in	14.7 mm	Round (Pin Plunger)	100 mA 500 mA	30 V	85 °C	-40 C	0.012 in	0.3 mm
