104430 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

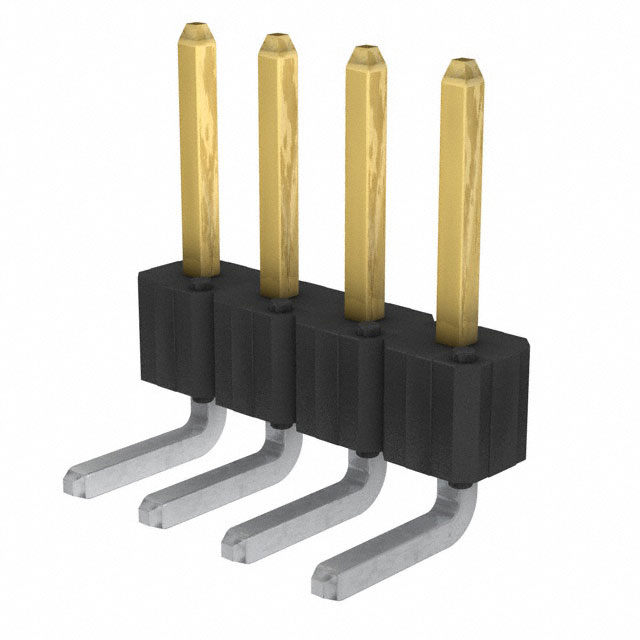

04 MODII HDR SRRA B/A W/HLDWN ROHS COMPLIANT: NO
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Contact Finish - Post | Material Flammability Rating | Termination | Pitch - Mating | Pitch - Mating | Contact Material | Number of Rows | Connector Type | Contact Shape | Style | Contact Length - Post [custom] | Contact Length - Post | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Insulation Height [z] | Insulation Height [z] | Voltage Rating | Insulation Material | Contact Length - Mating | Contact Length - Mating | Contact Type | Number of Positions | Fastening Type | Shrouding | Number of Positions Loaded | Current Rating (Amps) | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2.54 µm | 100 µin | 0.38 µm | 15 µin | Right Angle Through Hole | Tin-Lead | UL94 V-0 | Press-Fit Solder | 0.1 " | 2.54 mm | Copper Alloy | 1 | Header Breakaway | Square | Board to Board Cable | 0.11 in | 2.79 mm | 105 ░C | -65 ░C | Gold | 3.5 mm | 0.138 " | 30 VAC | Thermoplastic | 8.08 mm | 0.318 in | Male Pin | 4 | Push-Pull | Unshrouded | All | 3 A | Black |
 TE Connectivity AMP Connectors | 2.54 µm | 100 µin | 0.38 µm | 15 µin | Right Angle Through Hole | Tin | UL94 V-0 | Press-Fit Solder | 0.1 " | 2.54 mm | Copper Alloy | 1 | Header Breakaway | Square | Board to Board Cable | 0.11 in | 2.79 mm | 105 ░C | -65 ░C | Gold | 3.5 mm | 0.138 " | 30 VAC | Thermoplastic | 8.08 mm | 0.318 in | Male Pin | 40 | Push-Pull | Unshrouded | All | 3 A | Black |
TE Connectivity AMP Connectors | 2.54 µm | 100 µin | 0.38 µm | 15 µin | Right Angle Through Hole | Tin-Lead | UL94 V-0 | Press-Fit Solder | 0.1 " | 2.54 mm | Copper Alloy | 1 | Header Breakaway | Square | Board to Board Cable | 0.11 in | 2.79 mm | 105 ░C | -65 ░C | Gold | 3.5 mm | 0.138 " | 30 VAC | Thermoplastic | 8.08 mm | 0.318 in | Male Pin | Push-Pull | Unshrouded | All | 3 A | Black | |
 TE Connectivity AMP Connectors | 2.54 µm | 100 µin | 0.38 µm | 15 µin | Right Angle Through Hole | Tin | UL94 V-0 | Press-Fit Solder | 0.1 " | 2.54 mm | Copper Alloy | 1 | Header Breakaway | Square | Board to Board Cable | 0.11 in | 2.79 mm | 105 ░C | -65 ░C | Gold | 3.5 mm | 0.138 " | 30 VAC | Thermoplastic | 8.08 mm | 0.318 in | Male Pin | Push-Pull | Unshrouded | All | 3 A | Black |
