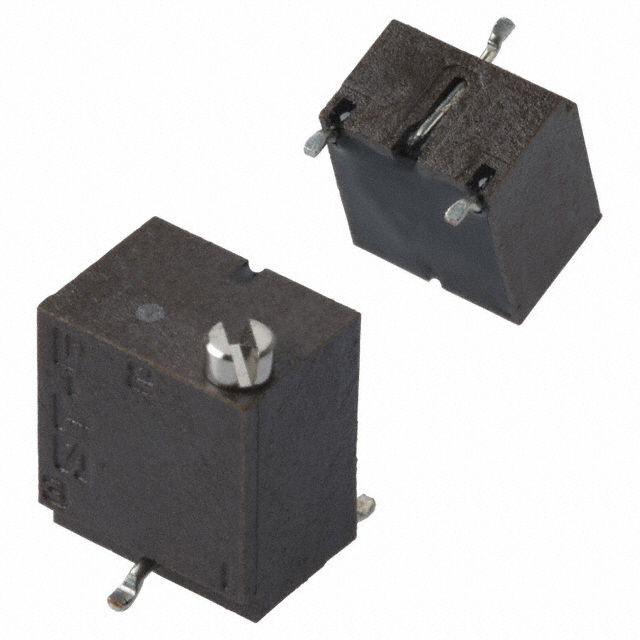

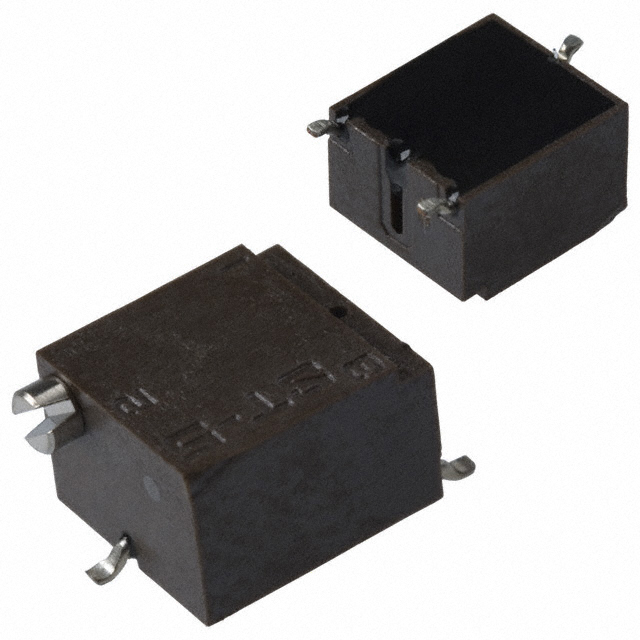

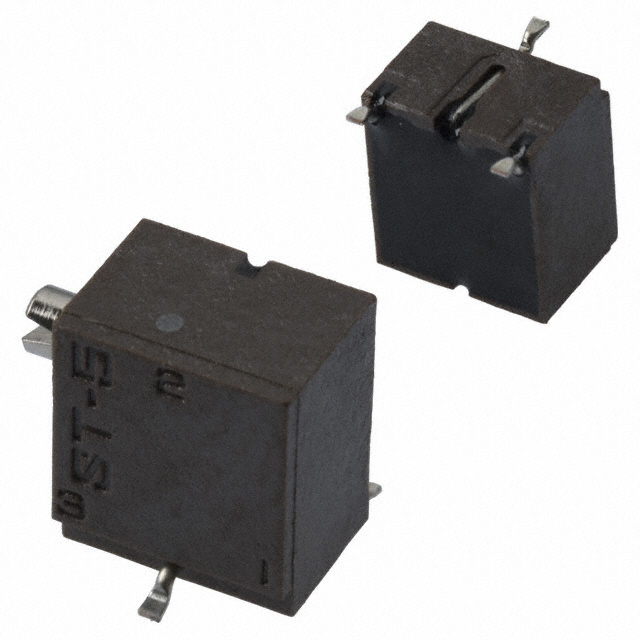

ST-5 Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER RESISTORS - SMD 200 KW 6MM SMD MULTI TURN GULL WING, SIDE ADJ.

Part	Resistance	Termination Style	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Resistive Material	Number of Turns	Adjustment Type	Mounting Type	Power (Watts)	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]
Nidec Components Corporation ST-5EMR204	200000 Ohms	Gull Wing	100 ppm/°C	0.266 in 6.75 mm	0.236 in 6 mm	10 %	Cermet	14	Side Adjustment	Surface Mount	0.25 W	0.25 W
Nidec Components Corporation ST-5EW201	200 Ohms	Gull Wing	100 ppm/°C	0.236 in	0.169 "	10 %	Cermet	14	Top Adjustment	Surface Mount	0.25 W	0.25 W	4.3 mm	6 mm
Nidec Components Corporation ST-5ER100	10 Ohms	Gull Wing	250 ppm/°C	0.266 in 6.75 mm	0.236 in 6 mm	10 %	Cermet	14	Side Adjustment	Surface Mount	0.25 W	0.25 W
Nidec Components Corporation ST-5EMW504		Gull Wing	100 ppm/°C	0.236 in	0.169 "	10 %	Cermet	14	Top Adjustment	Surface Mount	0.25 W	0.25 W	4.3 mm	6 mm
Nidec Components Corporation ST-5EP500	50 Ohms	Gull Wing	250 ppm/°C	0.266 in 6.75 mm	0.236 in 6 mm	10 %	Cermet	14	Side Adjustment	Surface Mount	0.25 W	0.25 W
Nidec Components Corporation ST-5ETR200	20 Ohms	Gull Wing	250 ppm/°C	0.266 in 6.75 mm	0.236 in 6 mm	10 %	Cermet	14	Side Adjustment	Surface Mount	0.25 W	0.25 W
Nidec Components Corporation ST-5EMR503	50000 Ohms	Gull Wing	100 ppm/°C	0.266 in 6.75 mm	0.236 in 6 mm	10 %	Cermet	14	Side Adjustment	Surface Mount	0.25 W	0.25 W
Nidec Components Corporation ST-5ETW204	200000 Ohms	Gull Wing	100 ppm/°C	0.236 in	0.169 "	10 %	Cermet	14	Top Adjustment	Surface Mount	0.25 W	0.25 W	4.3 mm	6 mm
Nidec Components Corporation ST-5ETP200	20 Ohms	Gull Wing	250 ppm/°C	0.266 in 6.75 mm	0.236 in 6 mm	10 %	Cermet	14	Side Adjustment	Surface Mount	0.25 W	0.25 W
Nidec Components Corporation ST-5EW200	20 Ohms	Gull Wing	250 ppm/°C	0.236 in	0.169 "	10 %	Cermet	14	Top Adjustment	Surface Mount	0.25 W	0.25 W	4.3 mm	6 mm
