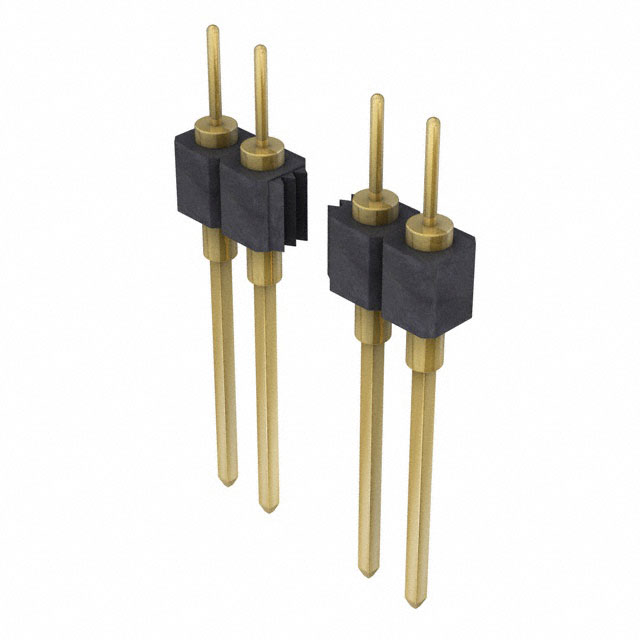

353-10 Series

Manufacturer: Preci-Dip

Catalog

CONN HEADER VERT 18POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Number of Positions	Mounting Type	Contact Shape	Connector Type	Voltage Rating	Insulation Color	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Fastening Type	Contact Finish - Post	Termination	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Type	Material Flammability Rating	Shrouding	Insulation Height	Insulation Height	Number of Rows	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating
Preci-Dip 353-10-118-00-001101	10 Áin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	18	Through Hole	Circular Square	Header	150 VDC	Black	Brass	-55 C	125 °C	3 A	Push-Pull	Gold	Wire Wrap	0.1 "	2.54 mm	0.51 in	12.95 mm	Male Pin	UL94 V-0	Unshrouded	0.116 "	2.95 mm	1	Gold	22.36 mm	0.88 in	All	0.25 µm	10 µin	3.73 mm	0.147 in
Preci-Dip 353-10-123-00-001101	10 Áin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	23	Through Hole	Circular Square	Header	150 VDC	Black	Brass	-55 C	125 °C	3 A	Push-Pull	Gold	Wire Wrap	0.1 "	2.54 mm	0.51 in	12.95 mm	Male Pin	UL94 V-0	Unshrouded	0.116 "	2.95 mm	1	Gold	22.36 mm	0.88 in	All	0.25 µm	10 µin	3.73 mm	0.147 in
Preci-Dip 353-10-138-00-001101	10 Áin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	38	Through Hole	Circular Square	Header	150 VDC	Black	Brass	-55 C	125 °C	3 A	Push-Pull	Gold	Wire Wrap	0.1 "	2.54 mm	0.51 in	12.95 mm	Male Pin	UL94 V-0	Unshrouded	0.116 "	2.95 mm	1	Gold	22.36 mm	0.88 in	All	0.25 µm	10 µin	3.73 mm	0.147 in
Preci-Dip 353-10-116-00-001101	10 Áin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	16	Through Hole	Circular Square	Header	150 VDC	Black	Brass	-55 C	125 °C	3 A	Push-Pull	Gold	Wire Wrap	0.1 "	2.54 mm	0.51 in	12.95 mm	Male Pin	UL94 V-0	Unshrouded	0.116 "	2.95 mm	1	Gold	22.36 mm	0.88 in	All	0.25 µm	10 µin	3.73 mm	0.147 in
Preci-Dip 353-10-107-00-001101	10 Áin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	7	Through Hole	Circular Square	Header	150 VDC	Black	Brass	-55 C	125 °C	3 A	Push-Pull	Gold	Wire Wrap	0.1 "	2.54 mm	0.51 in	12.95 mm	Male Pin	UL94 V-0	Unshrouded	0.116 "	2.95 mm	1	Gold	22.36 mm	0.88 in	All	0.25 µm	10 µin	3.73 mm	0.147 in
Preci-Dip 353-10-111-00-001101	10 Áin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	11	Through Hole	Circular Square	Header	150 VDC	Black	Brass	-55 C	125 °C	3 A	Push-Pull	Gold	Wire Wrap	0.1 "	2.54 mm	0.51 in	12.95 mm	Male Pin	UL94 V-0	Unshrouded	0.116 "	2.95 mm	1	Gold	22.36 mm	0.88 in	All	0.25 µm	10 µin	3.73 mm	0.147 in

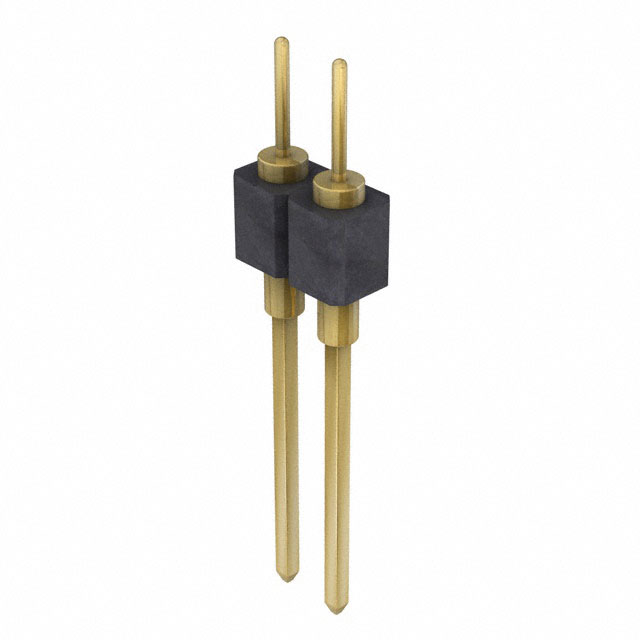

Preci-Dip 353-10-102-00-001101	10 Áin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2	Through Hole	Circular Square	Header	150 VDC	Black	Brass	-55 C	125 °C	3 A	Push-Pull	Gold	Wire Wrap	0.1 "	2.54 mm	0.51 in	12.95 mm	Male Pin	UL94 V-0	Unshrouded	0.116 "	2.95 mm	1	Gold	22.36 mm	0.88 in	All	0.25 µm	10 µin	3.73 mm	0.147 in
Preci-Dip 353-10-112-00-001101	10 Áin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	12	Through Hole	Circular Square	Header	150 VDC	Black	Brass	-55 C	125 °C	3 A	Push-Pull	Gold	Wire Wrap	0.1 "	2.54 mm	0.51 in	12.95 mm	Male Pin	UL94 V-0	Unshrouded	0.116 "	2.95 mm	1	Gold	22.36 mm	0.88 in	All	0.25 µm	10 µin	3.73 mm	0.147 in
Preci-Dip 353-10-141-00-001101	10 Áin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	41	Through Hole	Circular Square	Header	150 VDC	Black	Brass	-55 C	125 °C	3 A	Push-Pull	Gold	Wire Wrap	0.1 "	2.54 mm	0.51 in	12.95 mm	Male Pin	UL94 V-0	Unshrouded	0.116 "	2.95 mm	1	Gold	22.36 mm	0.88 in	All	0.25 µm	10 µin	3.73 mm	0.147 in
Preci-Dip 353-10-105-00-001101	10 Áin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	5	Through Hole	Circular Square	Header	150 VDC	Black	Brass	-55 C	125 °C	3 A	Push-Pull	Gold	Wire Wrap	0.1 "	2.54 mm	0.51 in	12.95 mm	Male Pin	UL94 V-0	Unshrouded	0.116 "	2.95 mm	1	Gold	22.36 mm	0.88 in	All	0.25 µm	10 µin	3.73 mm	0.147 in
