ADS1247 Series
Manufacturer: Texas Instruments
Beta
⌘K
24-BIT, 2KSPS, 4-CH DELTA-SIGMA ADC WITH PGA, VREF AND 2X IDACS FOR PRECISION SENSOR MEASUREMENT
| Part | Features | Reference Type | Architecture | Number of A/D Converters | Number of Inputs | Data Interface | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Configuration | Sampling Rate (Per Second) | Supplier Device Package | Number of Bits | Input Type | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Mounting Type | Package / Case [y] | Package / Case | Package / Case [x] | Utilized IC / Part | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | PGA Temperature Sensor | External Internal | Sigma-Delta | 1 | 2 3 | SPI | 5.25 V | 2.7 V | -40 °C | 105 ░C | MUX-PGA-ADC | 2k | 20-TSSOP | 24 | Differential Single Ended | 2.7 V | 5.25 V | Surface Mount | 4.4 mm | 20-TSSOP | 0.173 in | ||

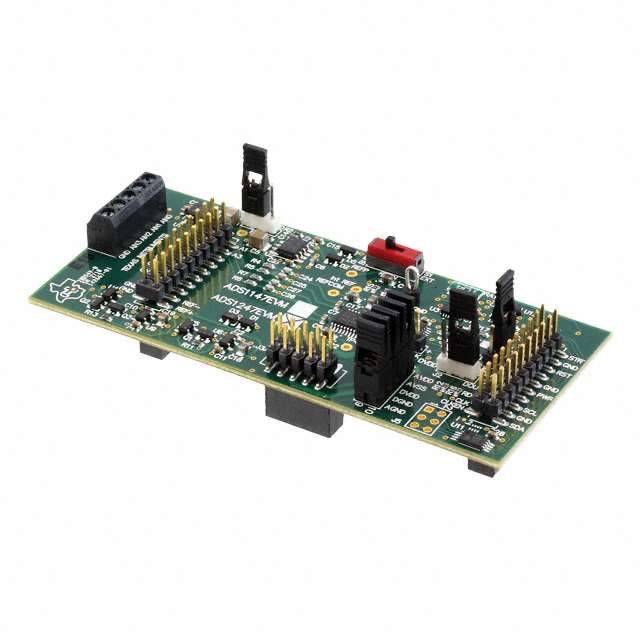

 Texas Instruments | 1 | SPI | 2k | 24 | ADS1247 | Board(s) |
