DCM37 Series

Catalog

CONN D-SUB RCPT 37POS R/A SOLDER

Part	Dielectric Material	Termination	Connector Type	Contact Type	Material Flammability Rating	Contact Finish	Voltage Rating	Flange Feature	Number of Rows	Number of Positions	Contact Material	Backset Spacing	Backset Spacing	Shell Size, Connector Layout	Mounting Type	Current Rating (Amps)	Connector Style	Shell Material, Finish	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shell Material, Finish [custom]	Shell Material, Finish [custom]	Contact Finish Thickness	Contact Finish Thickness	Ingress Protection
Amphenol ICC (FCI) DCM37S500	Thermoplastic	Solder	Receptacle Female Sockets	Signal	UL94 V-0	Gold	300 VDC	Housing/Shell (Unthreaded)	2	37	Phosphor Bronze	0.406 in	10.3 mm	4 (DC C)	Through Hole Right Angle	7.5 A	D-Sub	Steel Yellow Cadmium Plated	-55 °C	125 °C
Amphenol ICC (FCI) DCM37S500M	Thermoplastic	Solder	Receptacle Female Sockets	Signal	UL94 V-0	Gold	300 VDC	Housing/Shell (Unthreaded)	2	37	Phosphor Bronze	0.406 in	10.3 mm	4 (DC C)	Through Hole Right Angle	7.5 A	D-Sub	Steel Yellow Cadmium Plated	-55 °C	125 °C	Mounting Brackets
Amphenol ICC (FCI) DCM37SN	Thermoplastic		Receptacle Female Sockets	Signal	UL94 V-0	Gold	300 VDC	Housing/Shell (Unthreaded)	2	37	Brass			4 (DC C)	Free Hanging (In-Line)	7.5 A	D-Sub	Steel Yellow Cadmium Plated	-55 °C	155 °C
Amphenol ICC (FCI) DCM37P500MN	Thermoplastic Glass Filled	Solder	Male Pins Plug	Signal		Gold		Housing/Shell (Unthreaded)	2	37				4 (DC C)	Through Hole Right Angle	7.5 A	D-Sub		-55 °C	155 °C		Steel	Cadmium Plated

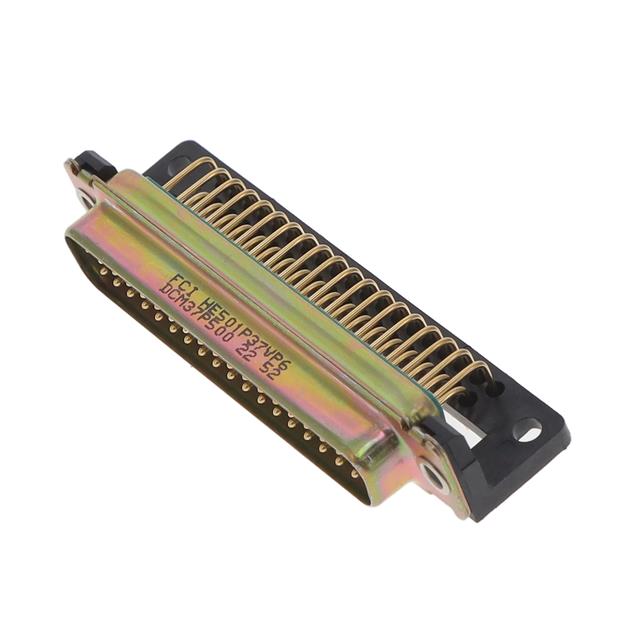

Amphenol ICC (FCI) DCM37P500	Thermoplastic	Solder	Male Pins Plug	Signal	UL94 V-0	Gold	300 VDC	Housing/Shell (Unthreaded)	2	37	Brass	0.406 in	10.3 mm	4 (DC C)	Through Hole Right Angle	7.5 A	D-Sub	Steel Yellow Cadmium Plated	-55 °C	125 °C
Amphenol ICC (FCI) DCM37S300N	Thermoplastic	Solder	Receptacle Female Sockets	Signal	UL94 V-0	Gold	300 VDC	Housing/Shell (Unthreaded)	2	37	Brass			4 (DC C)	Through Hole	7.5 A	D-Sub	Steel Yellow Cadmium Plated	-55 °C	155 °C
Amphenol ICC (FCI) DCM37P832N	Thermoplastic	Solder	Male Pins Plug	Signal	UL94 V-0	Gold	300 VDC	Housing/Shell (Unthreaded)	2	37	Phosphor Bronze	0.406 in	10.3 mm	4 (DC C)	Through Hole Right Angle	7.5 A	D-Sub	Steel Yellow Cadmium Plated	-55 °C	155 °C	Mounting Brackets			50 µin	1.27 µm
Amphenol ICC (FCI) DCM37P500N	Thermoplastic	Solder	Male Pins Plug	Signal	UL94 V-0	Gold	300 VDC	Housing/Shell (Unthreaded)	2	37	Brass	0.406 in	10.3 mm	4 (DC C)	Through Hole Right Angle	7.5 A	D-Sub	Steel Yellow Cadmium Plated	-55 °C	155 °C
Amphenol ICC (FCI) DCM37P300N	Thermoplastic	Solder	Male Pins Plug	Signal	UL94 V-0	Gold	300 VDC	Housing/Shell (Unthreaded)	2	37	Brass			4 (DC C)	Through Hole	7.5 A	D-Sub	Steel Yellow Cadmium Plated	-55 °C	155 °C
Amphenol ICC (FCI) DCM37P343	Thermoplastic	Solder	Male Pins Plug	Signal	UL94 V-0	Gold	300 VDC	Housing/Shell (Unthreaded)	2	37	Brass			4 (DC C)	Through Hole	7.5 A	D-Sub	Steel Yellow Cadmium Plated	-55 °C	125 °C						Harsh Environment
