9454-9513 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

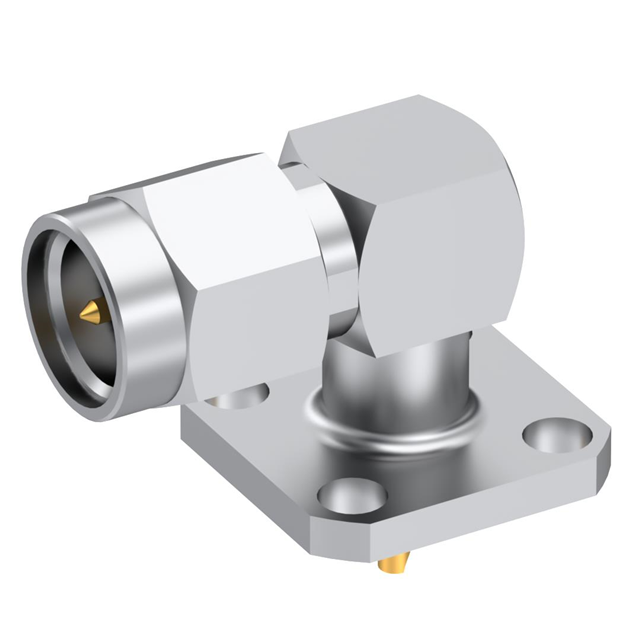

SMA / RIGHT ANGLE PLUG RECEPTACL
| Part | Body Material | Mating Cycles | Center Contact Plating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Number of Ports | Fastening Type | Center Contact Material | Housing Color | Features | Connector Type | Impedance | Mounting Type | Shield Termination | Connector Style | Contact Termination | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Stainless Steel | 500 | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Flange | 1 | Threaded | Beryllium Copper | Silver | Extended Insulation | Plug Male Pin | 50 Ohms | Panel Mount Right Angle | Solder | SMA | Solder Cup | 18 GHz |
