PEG127K Series

Manufacturer: KEMET

Catalog

CAP ALUM 110UF 40V AXIAL TH

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Capacitance	ESR (Equivalent Series Resistance)	Applications	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [diameter]	Size / Dimension [custom]	Ratings	Ripple Current @ High Frequency	Package / Case	Lifetime @ Temp.	Polarization	Ripple Current @ Low Frequency	Voltage - Rated	Tolerance [Min]	Tolerance [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension	Size / Dimension [x]	Size / Dimension [x]
KEMET PEG127KA3110QT1	-40 C	150 °C	Through Hole	110 µF	710 mOhm	Automotive	10 mm	20 mm	0.394 in	0.787 "	AEC-Q200	2.3 A	Axial Can	1600 Hrs	Polar	805 mA	40 V	-10 %	30 %

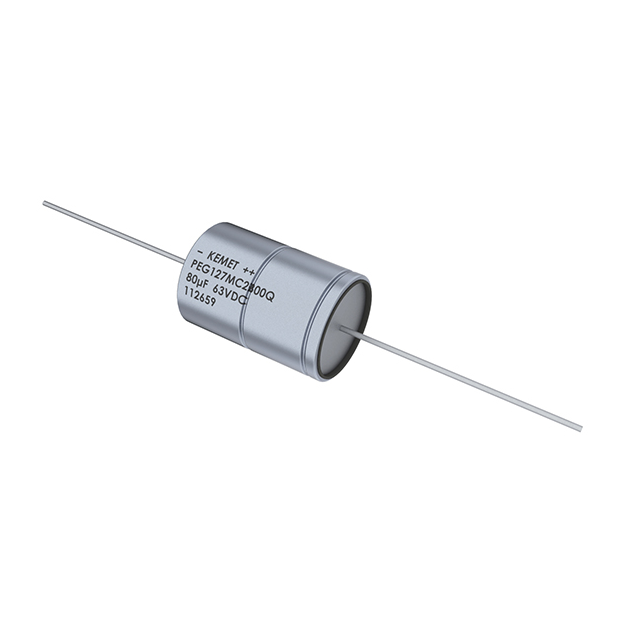

KEMET PEG127KC3270QL1	-40 C	150 °C	Through Hole	270 µF	301 mOhm	Automotive			0.512 in			3.7 A	Axial Can	5000 Hrs	Polar	1.295 A	40 V	-10 %	30 %	0.787 in	20 mm	13 mm
KEMET PEG127KB3220QT1	-40 C	150 °C	Through Hole	220 µF	360 mOhm	Automotive	10 mm		0.394 in		AEC-Q200		Axial Can	1600 Hrs	Polar	1.19 A	40 V	-10 %	30 %				29 mm	1.142 in
