M2023TN Series

Catalog

SWITCH ROCKER DPDT 6A 125V

Part	Electrical Life	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage Rating - AC	Actuator Type	Switch Function	Circuit	Voltage Rating - DC	Features	Termination Style	Actuator Marking	Current Rating (Amps)	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Color - Actuator/Cap
NKK Switches M2023TNW01	25000 Steps	50000 Cycles	85 °C	-30 ░C	Flange Panel Mount	125 V	Actuator Arm Cap Required	On-Off-On	DPDT	30 V	Epoxy Sealed Terminals	Solder Lug	Varies by Cap	3 A 6 A	CSA UL
NKK Switches M2023TNW01-FF	25000 Steps	50000 Cycles	85 °C	-30 ░C	Flange Panel Mount	125 V	Concave	On-Off-On	DPDT	30 V	Epoxy Sealed Terminals	Solder Lug	No Marking	3 A 6 A	CSA UL	12.4 mm	0.5 in	Green
NKK Switches M2023TNW03-FA	25000 Steps	50000 Cycles	85 °C	-30 ░C	Flange Panel Mount	125 V	Concave	On-Off-On	DPDT	30 V	Epoxy Sealed Terminals	PC Pin	No Marking	3 A 6 A	CSA UL	12.4 mm	0.5 in	Black
NKK Switches M2023TNW05-DA	25000 Steps	50000 Cycles	85 °C	-30 ░C	Flange Panel Mount	125 V	Concave	On-Off-On	DPDT	30 V	Epoxy Sealed Terminals	Wire Wrap	No Marking	3 A 6 A	CSA UL	10.1 mm	17.8 mm	Black
NKK Switches M2023TNW05/U	25000 Steps	50000 Cycles	85 °C	-30 ░C	Flange Panel Mount	125 V	Actuator Arm Cap Required	On-Off-On	DPDT		Epoxy Sealed Terminals	Wire Wrap	Varies by Cap	6 A	CSA UL

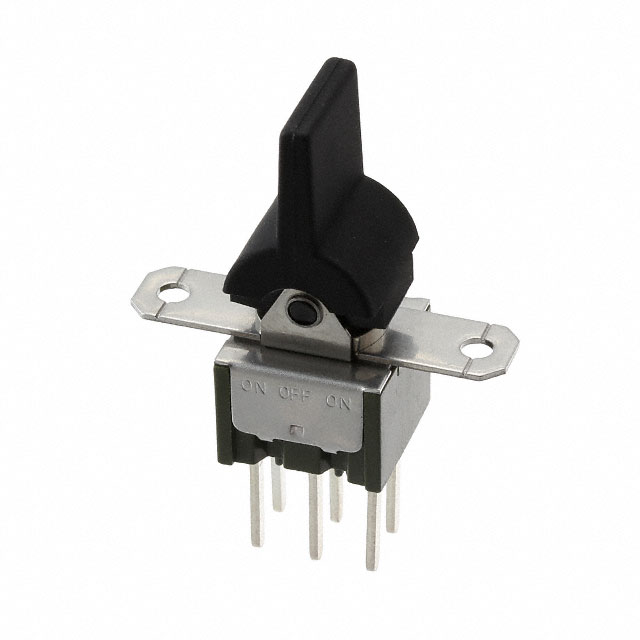

NKK Switches M2023TNW05/U-GA	25000 Steps	50000 Cycles	85 °C	-30 ░C	Flange Panel Mount	125 V	Paddle	On-Off-On	DPDT		Epoxy Sealed Terminals	Wire Wrap	No Marking	6 A	CSA UL	12.4 mm	0.5 in	Black

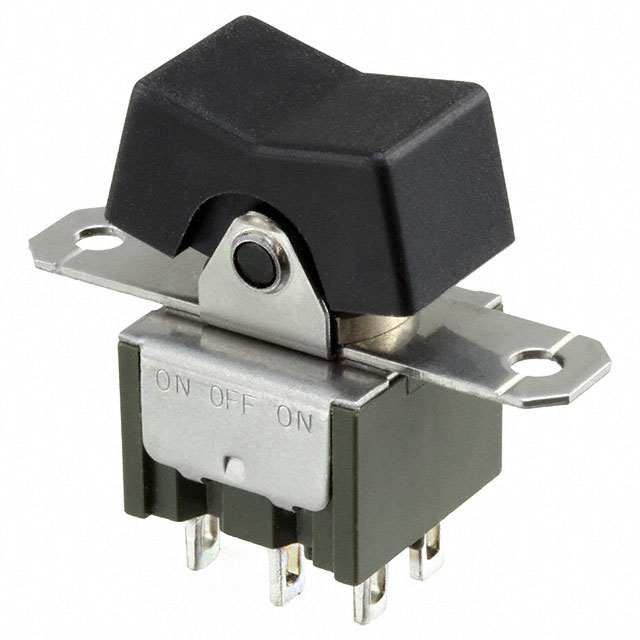

NKK Switches M2023TNW01-DA	25000 Steps	50000 Cycles	85 °C	-30 ░C	Flange Panel Mount	125 V	Concave	On-Off-On	DPDT	30 V	Epoxy Sealed Terminals	Solder Lug	No Marking	3 A 6 A	CSA UL	10.1 mm	17.8 mm	Black
NKK Switches M2023TNW01-DB	25000 Steps	50000 Cycles	85 °C	-30 ░C	Flange Panel Mount	125 V	Concave	On-Off-On	DPDT	30 V	Epoxy Sealed Terminals	Solder Lug	No Marking	3 A 6 A	CSA UL	10.1 mm	17.8 mm	White
NKK Switches M2023TNG01-DA	50000 Cycles	50000 Cycles	85 °C	-30 ░C	Flange Panel Mount	28 V	Concave	On-Off-On	DPDT	28 V	Epoxy Sealed Terminals	Solder Lug	No Marking	0.4 VA	CSA UL	10.1 mm	17.8 mm	Black
NKK Switches M2023TNG01-DB	50000 Cycles	50000 Cycles	85 °C	-30 ░C	Flange Panel Mount	28 V	Concave	On-Off-On	DPDT	28 V	Epoxy Sealed Terminals	Solder Lug	No Marking	0.4 VA	CSA UL	10.1 mm	17.8 mm	White
