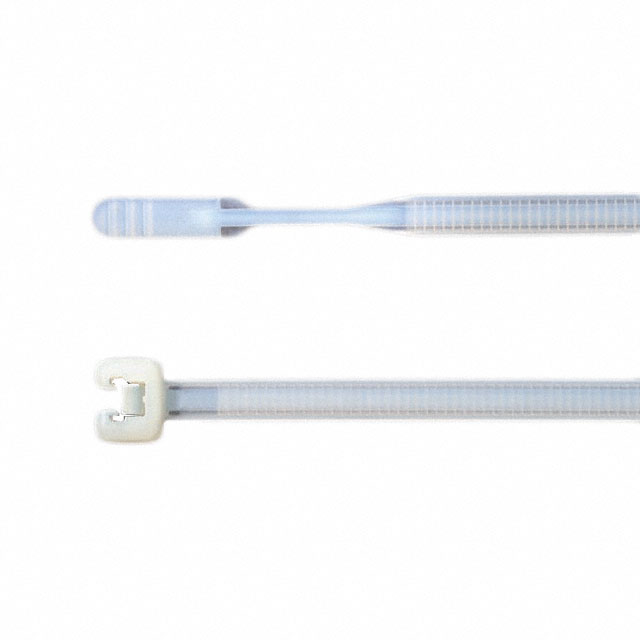

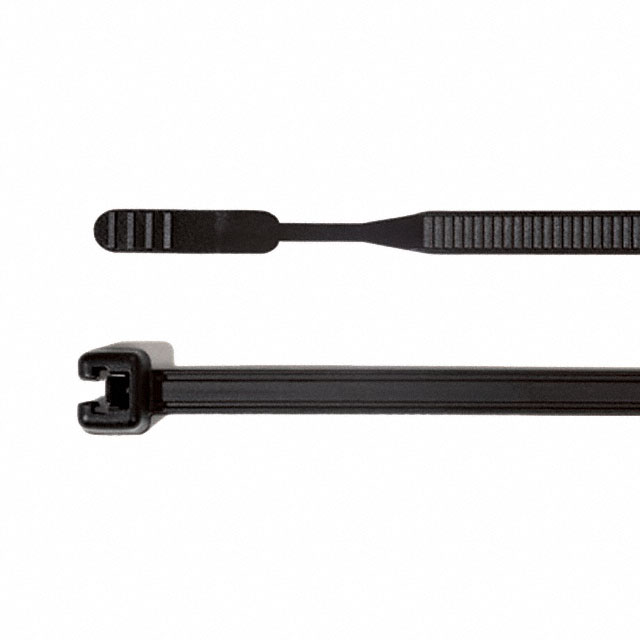

109-00 Series

Catalog

CBL TIE LOCKING NAT 30LBS 6.3"

Part	Length - Actual	Length - Actual	Length - Actual	Color	Tensile Strength	Tensile Strength	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Wire/Cable Tie Type	Length - Approximate [x]	Material	Width [x]	Width [x]	Features	Mounting Type	Length - Approximate	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Width [y]	Width [y]	Width	Width

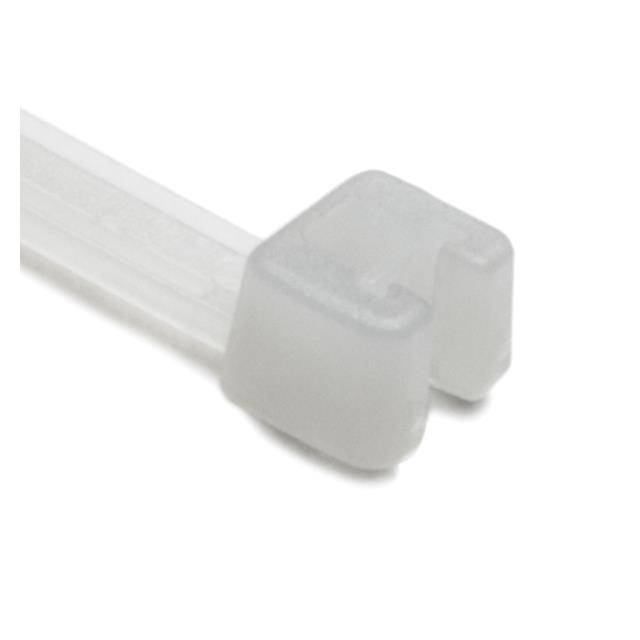

HELLERMANNTYTON 109-00010	0.525 ft	6.3 in	160 mm	Natural	13.61 kg	30 lbs	1.5 in	38.1 mm	Locking Standard	6.25 "	Polyamide (PA66) Nylon 6/6	0.142 in	3.61 mm	Halogen Free Pre-Lock	Free Hanging (In-Line)
HELLERMANNTYTON 109-00024				Natural	54.43 kg	120 lbs	2.76 in	70 mm	Locking Standard		Polyamide (PA66) Nylon 6/6	0.303 in	7.7 mm	Halogen Free Pre-Lock	Free Hanging (In-Line)	11.75 in	11.81 "	0.984 ft	300 mm
HELLERMANNTYTON 109-00057				Black	54.43 kg	120 lbs	5.12 in	130 mm	Locking Standard		Polyamide (PA66) Nylon 6/6	0.303 in	7.7 mm	Halogen Free Pre-Lock	Free Hanging (In-Line)	20.5 in		1.706 ft	520 mm

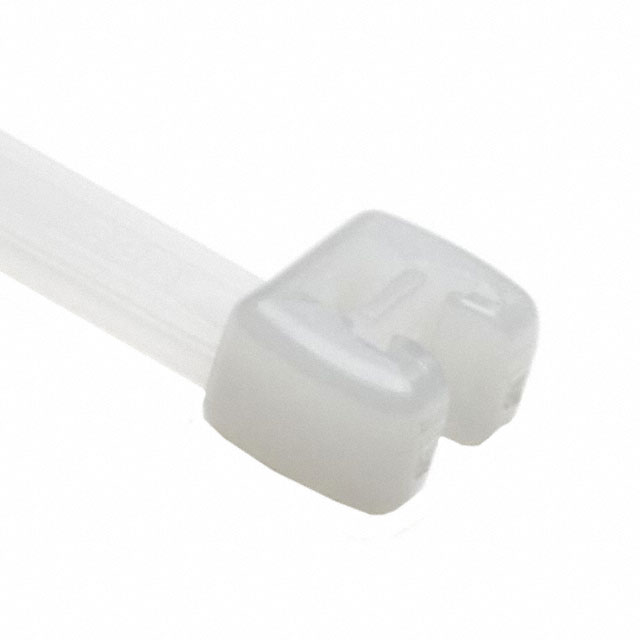

HELLERMANNTYTON 109-00134	0.689 ft	8.27 "	210 mm	Natural	22.68 kg	50 lbs	1.97 in	50 mm	Locking Standard		Polyamide (PA66) Nylon 6/6				Free Hanging (In-Line)	8.25 in				0.185 in	4.7 mm
HELLERMANNTYTON 109-00047	0.689 ft	8.27 "	210 mm	Black	22.68 kg	50 lbs	1.97 in	50 mm	Locking Standard		Polyamide (PA66) Nylon 6/6			Halogen Free Pre-Lock	Free Hanging (In-Line)	8.25 in				0.185 in	4.7 mm
HELLERMANNTYTON 109-00055				Black	54.43 kg	120 lbs	4.33 in	110 mm	Locking Standard	16.5 in	Polyamide (PA66) Nylon 6/6	0.303 in	7.7 mm	Halogen Free Pre-Lock	Free Hanging (In-Line)			1.378 ft	420 mm
HELLERMANNTYTON 109-00049	0.951 ft	11.42 in	290 mm	Black	22.68 kg	50 lbs	2.95 in	75 mm	Locking Standard		Polyamide (PA66) Nylon 6/6			Halogen Free Pre-Lock	Free Hanging (In-Line)	11.5 in				0.185 in	4.7 mm

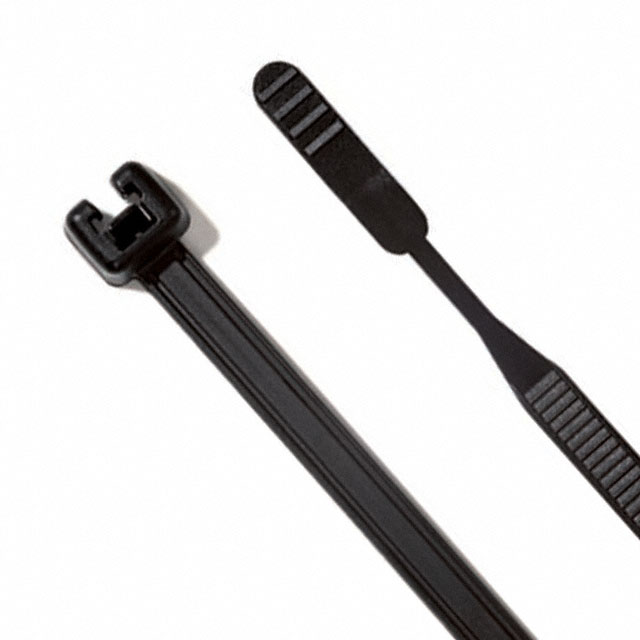

HELLERMANNTYTON 109-00115				Black	54.43 kg	120 lbs	5.12 in	130 mm	Locking Standard		Polyamide (PA66) Nylon 6/6	0.303 in	7.7 mm	Heat Stabilized	Free Hanging (In-Line)	20.5 in		1.706 ft	520 mm

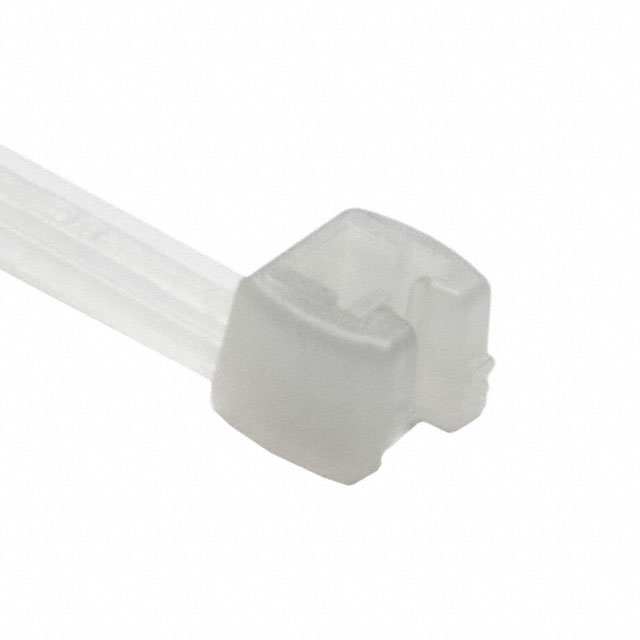

HELLERMANNTYTON 109-00123				Natural	8.16 kg	18 lbs	1.97 in	50 mm	Locking Standard		Polyamide (PA66) Nylon 6/6			Heat Stabilized	Free Hanging (In-Line)	7.75 "	7.68 "	0.64 ft	195 mm			2.6 mm	0.102 in
HELLERMANNTYTON 109-00053				Black	54.43 kg	120 lbs	2.76 in	70 mm	Locking Standard		Polyamide (PA66) Nylon 6/6	0.303 in	7.7 mm	Halogen Free Pre-Lock	Free Hanging (In-Line)	11.75 in	11.81 "	0.984 ft	300 mm
