AST223 Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

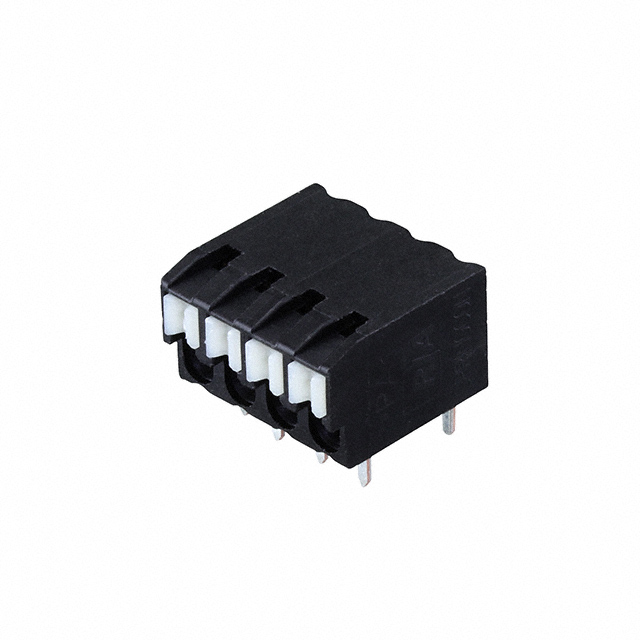

TERM BLK 4POS SIDE ENT 3.5MM PCB
| Part | Contact Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Clamp Material - Plating | Housing Material | Mating Orientation | Features | Wire Gauge [Max] | Wire Gauge [Min] | Pitch | Pitch | Positions Per Level | Mounting Type | Wire Termination | Color | Current | Voltage | Number of Levels | Positions Per Level [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | Nylon 6T Polyamide (PA6T) | Horizontal with Board | Push Button Actuated | 28 AWG | 16 AWG | 3.5 mm | 0.138 " | 4 | Through Hole | Screwless - Spring Cage Tension Clamp | Black | 10 A | 150 V | 1 | |
 METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | Nylon 6T Polyamide (PA6T) | Horizontal with Board | Push Button Actuated | 28 AWG | 16 AWG | 3.5 mm | 0.138 " | 5 | Through Hole | Screwless - Spring Cage Tension Clamp | Black | 10 A | 150 V | 1 | |
METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | Nylon 6T Polyamide (PA6T) | Horizontal with Board | Push Button Actuated | 28 AWG | 16 AWG | 3.5 mm | 0.138 " | 3 | Through Hole | Screwless - Spring Cage Tension Clamp | Black | 10 A | 150 V | 1 | |
METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | Nylon 6T Polyamide (PA6T) | Horizontal with Board | Push Button Actuated | 28 AWG | 16 AWG | 3.5 mm | 0.138 " | 11 | Through Hole | Screwless - Spring Cage Tension Clamp | Black | 10 A | 150 V | 1 | |
METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | Nylon 6T Polyamide (PA6T) | Horizontal with Board | Push Button Actuated | 28 AWG | 16 AWG | 3.5 mm | 0.138 " | 10 | Through Hole | Screwless - Spring Cage Tension Clamp | Black | 10 A | 150 V | 1 | |
METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | Nylon 6T Polyamide (PA6T) | Horizontal with Board | Push Button Actuated | 28 AWG | 16 AWG | 3.5 mm | 0.138 " | 2 | Through Hole | Screwless - Spring Cage Tension Clamp | Black | 10 A | 150 V | 1 | |
 METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | Nylon 6T Polyamide (PA6T) | Horizontal with Board | Push Button Actuated | 28 AWG | 16 AWG | 3.5 mm | 0.138 " | 1 | Through Hole | Screwless - Spring Cage Tension Clamp | Black | 10 A | 150 V | 1 | |
 METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | Nylon 6T Polyamide (PA6T) | Horizontal with Board | Push Button Actuated | 28 AWG | 16 AWG | 3.5 mm | 0.138 " | 8 | Through Hole | Screwless - Spring Cage Tension Clamp | Black | 10 A | 150 V | 1 | |
METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | Nylon 6T Polyamide (PA6T) | Horizontal with Board | Push Button Actuated | 28 AWG | 16 AWG | 3.5 mm | 0.138 " | Through Hole | Screwless - Spring Cage Tension Clamp | Black | 10 A | 150 V | 1 | 7 | |
METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | Nylon 6T Polyamide (PA6T) | Horizontal with Board | Push Button Actuated | 28 AWG | 16 AWG | 3.5 mm | 0.138 " | 9 | Through Hole | Screwless - Spring Cage Tension Clamp | Black | 10 A | 150 V | 1 |
