T18-D Series

Catalog

TIP,3.2D,FX-8801,907/900M/913,GL

Part	For Use With/Related Products	Length	Length	Tip Shape	Width [x]	Width [x]	Height	Height	Tip Type	Height [z]	Height [z]	Width	Width
American Hakko Products, Inc. T18-D32/P	FX-600 FX-8801 FX-900M FX-907 FX-913	0.571 "	14.5 mm	Chisel	3.2 mm	0.126 in	0.02 in	0.5 mm	Soldering
American Hakko Products, Inc. T18-D12/P	FX-600 FX-8801 FX-900M FX-907 FX-913	0.571 "	14.5 mm	Chisel	1.2 mm	0.047 in			Soldering	0.028 in	0.7 mm
American Hakko Products, Inc. T18-D16/P	FX-600 FX-8801 FX-900M FX-907 FX-913	0.571 "	14.5 mm	Chisel			0.02 in	0.5 mm	Soldering			0.063 "	1.6 mm
American Hakko Products, Inc. T18-DL32	FX-601 FX-8805	0.886 in	22.5 mm	Chisel	3.2 mm	0.126 in	0.039 in	1 mm	Soldering
American Hakko Products, Inc. T18-DL12/P	FX-600 FX-8801 FX-900M FX-907 FX-913	0.886 in	22.5 mm	Chisel	1.2 mm	0.047 in			Soldering	0.028 in	0.7 mm
American Hakko Products, Inc. T18-D24/P	FX-600 FX-8801 FX-900M FX-907 FX-913	0.571 "	14.5 mm	Chisel			0.02 in	0.5 mm	Soldering			0.094 in	2.4 mm

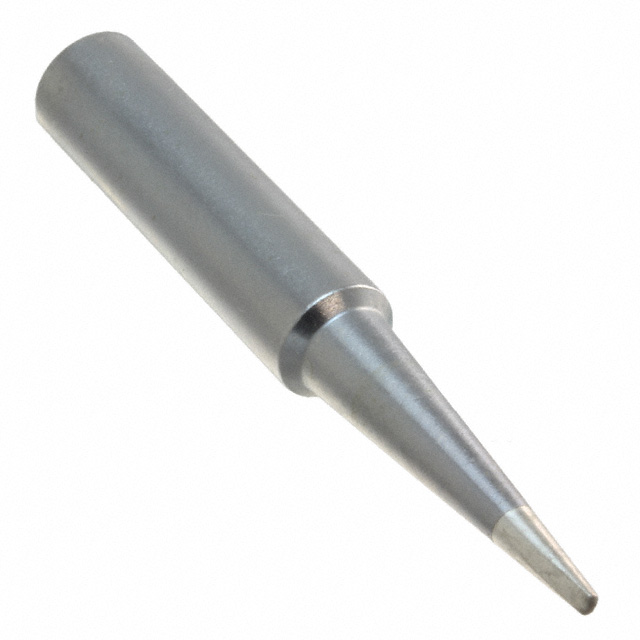

American Hakko Products, Inc. T18-DL12	900M 907 913 FX-600 FX-8801	0.886 in	22.5 mm	Chisel	1.19 mm	0.047 in			Soldering	0.028 in	0.7 mm
American Hakko Products, Inc. T18-D08/P	FX-600 FX-8801 FX-900M FX-907 FX-913	0.571 "	14.5 mm	Chisel	0.8 mm	0.031 in			Soldering	0.024 in	0.6 mm
