SST-40 Series

Catalog

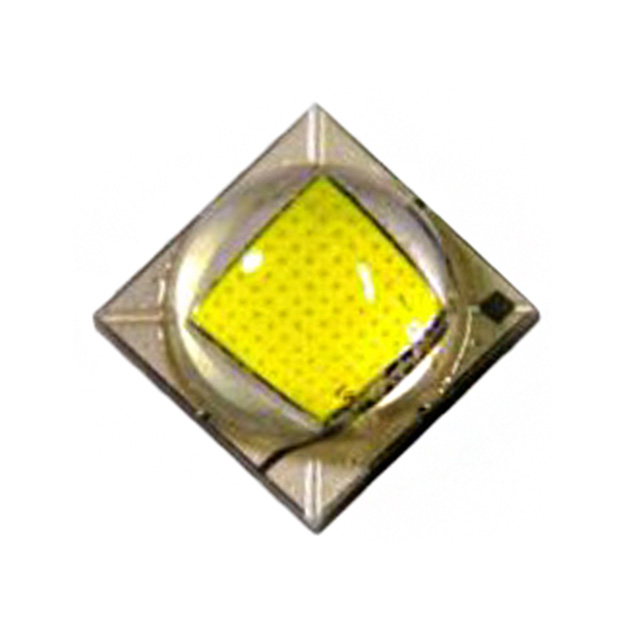

LED SST-40-W COOL WHT 6500K SMD

Part	Thermal Resistance of Package	Viewing Angle	Current - Max [Max]	Color	Supplier Device Package	CCT (K)	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Package / Case	Voltage - Forward (Vf) (Typ)	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Flux @ 85°C, Current - Test
Luminus Devices Inc. SST-40-WCS-F50-N3650	2.5 °C/W	120 °	5 A	Cool White	SMD	6500 K	2.86 mm	0.113 in	2020 (5050 Metric)	2.75 V	Surface Mount	4.95 mm	0.195 "	4.95 mm	0.195 in	161 lm/W	70	310 lm
Luminus Devices Inc. SST-40-WS65-F2-G2651
Luminus Devices Inc. SST-40-WCS-F50-N3651	2.5 °C/W	120 °	5 A	Cool White	SMD	6500 K	2.86 mm	0.113 in	2020 (5050 Metric)	2.75 V	Surface Mount	4.95 mm	0.195 "	4.95 mm	0.195 in	161 lm/W	70	310 lm
Luminus Devices Inc. SST-40-WCS-F50-N4700	2.5 °C/W	120 °	5 A	Cool White	SMD	7000 K	2.86 mm	0.113 in	2020 (5050 Metric)	2.75 V	Surface Mount	4.95 mm	0.195 "	4.95 mm	0.195 in	161 lm/W	70	310 lm
Luminus Devices Inc. SST-40-WS50-F2-G1502
Luminus Devices Inc. SST-40-WCS-F50-N2650	2.5 °C/W	120 °	5 A	Cool White	SMD	6500 K	2.86 mm	0.113 in	2020 (5050 Metric)	2.75 V	Surface Mount	4.95 mm	0.195 "	4.95 mm	0.195 in	161 lm/W	70	310 lm
Luminus Devices Inc. SST-40-WCS-F50-N2651	2.5 °C/W	120 °	5 A	Cool White	SMD	6500 K	2.86 mm	0.113 in	2020 (5050 Metric)	2.75 V	Surface Mount	4.95 mm	0.195 "	4.95 mm	0.195 in	161 lm/W	70	310 lm
Luminus Devices Inc. SST-40-WCS-F50-N4651	2.5 °C/W	120 °	5 A	Cool White	SMD	6500 K	2.86 mm	0.113 in	2020 (5050 Metric)	2.75 V	Surface Mount	4.95 mm	0.195 "	4.95 mm	0.195 in	161 lm/W	70	310 lm
