1241.1082 Series

Catalog

SWITCH TACTILE N.O. SPST ROUND BUTTON PC PINS 0.125A 48VDC >1000000CYCLES 2.5N THRU-HOLE BOX

Part	Actuator Material	Mechanical Life	Switch Travel	Circuit	Contact Rating @ Voltage	Mounting Type	Switch Function	Outline [x]	Outline [y]	Actuator Height off PCB, Vertical [z]	Illumination	Operating Force	Ingress Protection	Features	Actuator Type	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Actuator Height off PCB, Vertical

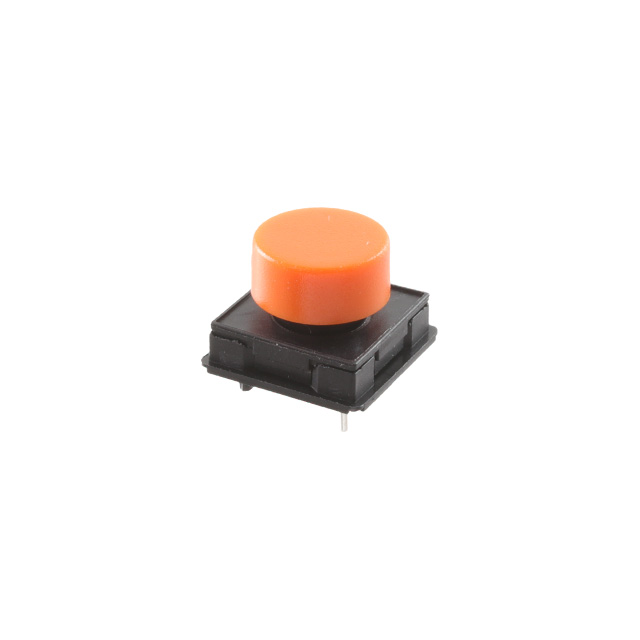

SCHURTER Inc. 1241.1082.2	Polycarbonate (PC)	1000000 Cycles	0.45 mm	SPST-NO	0.125 A 48 VDC	Through Hole	Off-Mom	12.65 mm	12.65 mm	9.25 mm	Non-Illuminated	0.25 kgf	IP40	Tactile Feedback	Round Button	Top Actuated	85 °C	-25 °C	PC Pin

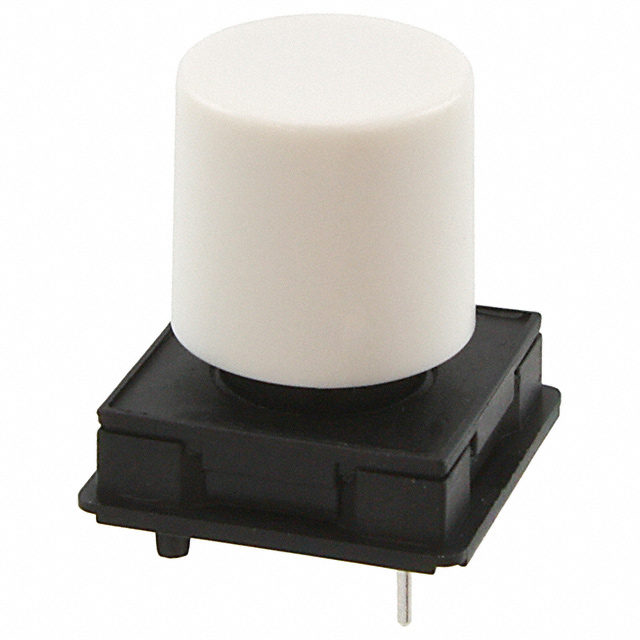

SCHURTER Inc. 1241.1082.8	Polycarbonate (PC)	1000000 Cycles	0.45 mm	SPST-NO	0.125 A 48 VDC	Through Hole	Off-Mom	12.65 mm	12.65 mm	13.75 mm	Non-Illuminated	0.25 kgf	IP40	Tactile Feedback	Round Button	Top Actuated	85 °C	-25 °C	PC Pin

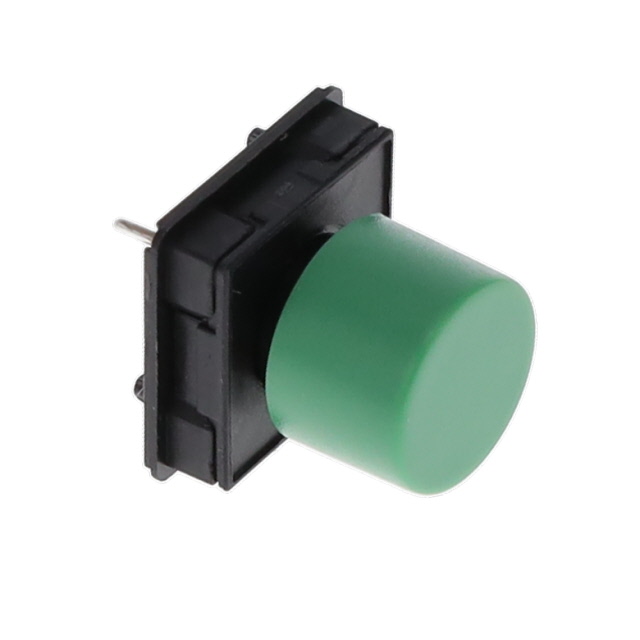

SCHURTER Inc. 1241.1082.5	Polycarbonate (PC)	1000000 Cycles	0.45 mm	SPST-NO	0.125 A 48 VDC	Through Hole	Off-Mom	12.65 mm	12.65 mm	11.5 mm	Non-Illuminated	0.25 kgf	IP40	Tactile Feedback	Round Button	Top Actuated	85 °C	-25 °C	PC Pin
SCHURTER Inc. 1241.1082.42

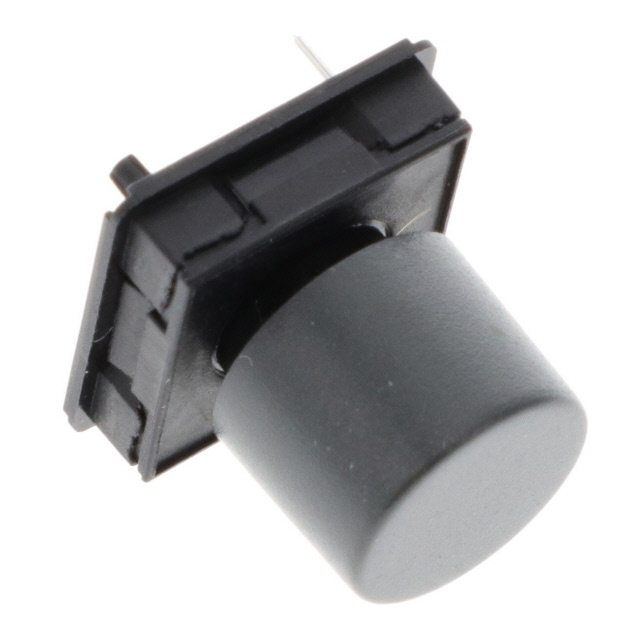

SCHURTER Inc. 1241.1082.6	Polycarbonate (PC)	1000000 Cycles	0.45 mm	SPST-NO	0.125 A 48 VDC	Through Hole	Off-Mom	12.65 mm	12.65 mm	12.25 mm	Non-Illuminated	0.25 kgf	IP40	Tactile Feedback	Round Button	Top Actuated	85 °C	-25 °C	PC Pin

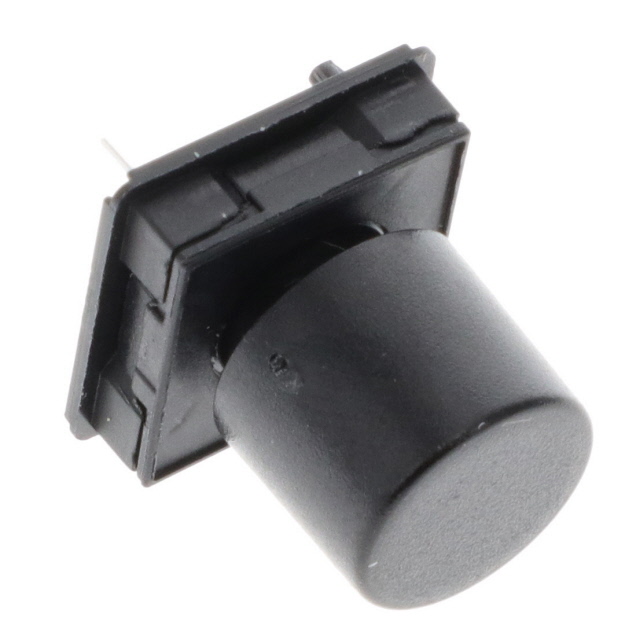

SCHURTER Inc. 1241.1082.7	Polycarbonate (PC)	1000000 Cycles	0.45 mm	SPST-NO	0.125 A 48 VDC	Through Hole	Off-Mom	12.65 mm	12.65 mm		Non-Illuminated	0.25 kgf	IP40	Tactile Feedback	Round Button	Top Actuated	85 °C	-25 °C	PC Pin	13 mm
