052793 Series

Manufacturer: Molex

Catalog

CONN FPC TOP 18POS 1MM R/A

Part	Contact Material	Mating Cycles	Voltage Rating	Features	Mounting Type	Cable End Type	Current Rating (Amps)	Height Above Board	Height Above Board	Contact Finish	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Pitch [x]	Pitch [x]	Termination	Connector/Contact Type	FFC, FCB Thickness	Flat Flex Type

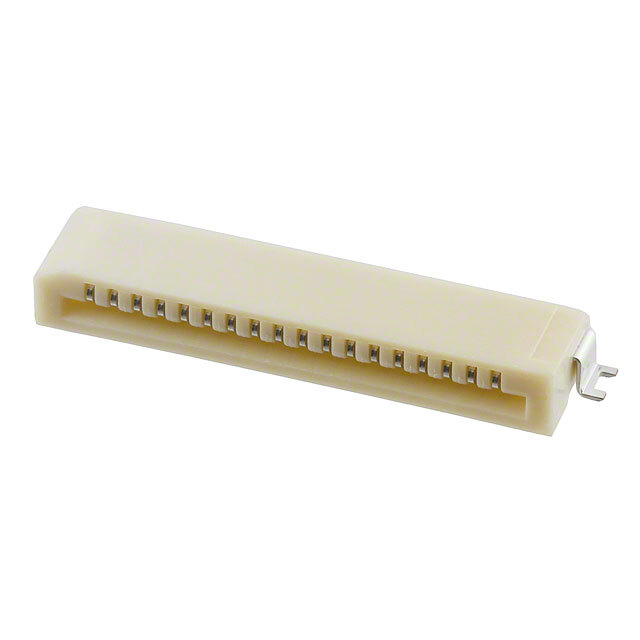

Molex 0527931870	Phosphor Bronze	10	50 V	Solder Retention	Surface Mount Right Angle	Straight	0.5 A	3.1 mm	0.122 in	Tin Bismuth	UL94 V-0	85 °C	-20 C	18	0.039 in	1 mm	Solder	Contacts Top	0.3 mm	FPC
Molex 0527930572	Phosphor Bronze	10	50 V	Solder Retention	Surface Mount Right Angle	Straight	0.5 A	3.1 mm	0.122 in	Gold	UL94 V-0	85 °C	-20 C		0.039 in	1 mm	Solder	Contacts Top	0.3 mm	FFC FPC
Molex 0527933072	Phosphor Bronze	10	50 V	Solder Retention	Surface Mount Right Angle	Straight	0.5 A	3.1 mm	0.122 in	Gold	UL94 V-0	85 °C	-20 C	30	0.039 in	1 mm	Solder	Contacts Top	0.3 mm	FPC

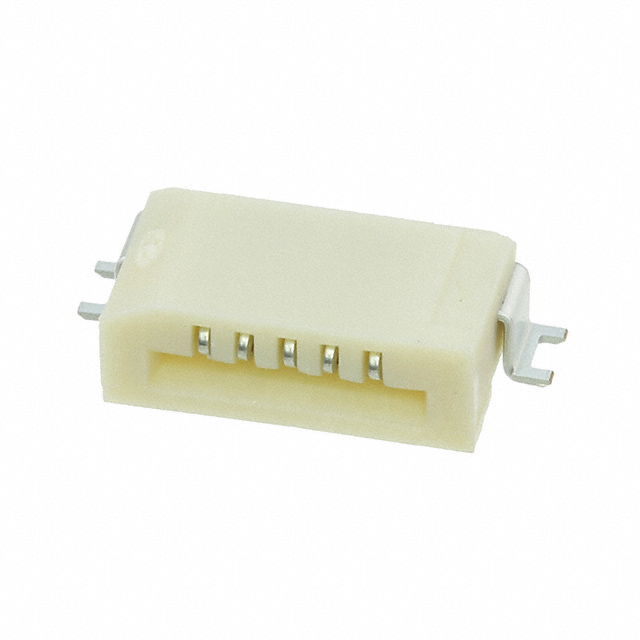

Molex 0527930570	Phosphor Bronze	10	50 V	Solder Retention	Surface Mount Right Angle	Straight	0.5 A	3.1 mm	0.122 in	Tin Bismuth	UL94 V-0	85 °C	-20 C		0.039 in	1 mm	Solder	Contacts Top	0.3 mm	FPC

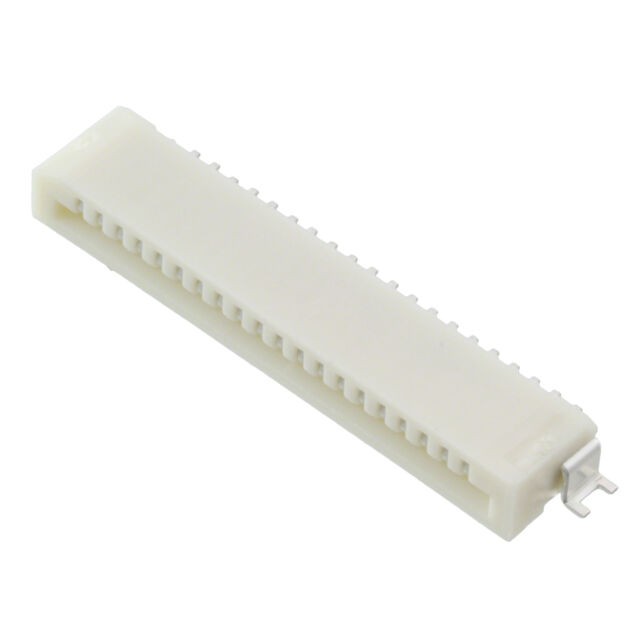

Molex 0527932070	Phosphor Bronze	10	50 V	Solder Retention	Surface Mount Right Angle	Straight	0.5 A	3.1 mm	0.122 in	Tin Bismuth	UL94 V-0	85 °C	-20 C	20	0.039 in	1 mm	Solder	Contacts Top	0.3 mm	FPC
Molex 0527932970	Phosphor Bronze	10	50 V	Solder Retention	Surface Mount Right Angle	Straight	0.5 A	3.1 mm	0.122 in	Tin Bismuth	UL94 V-0	85 °C	-20 C	29	0.039 in	1 mm	Solder	Contacts Top	0.3 mm	FPC

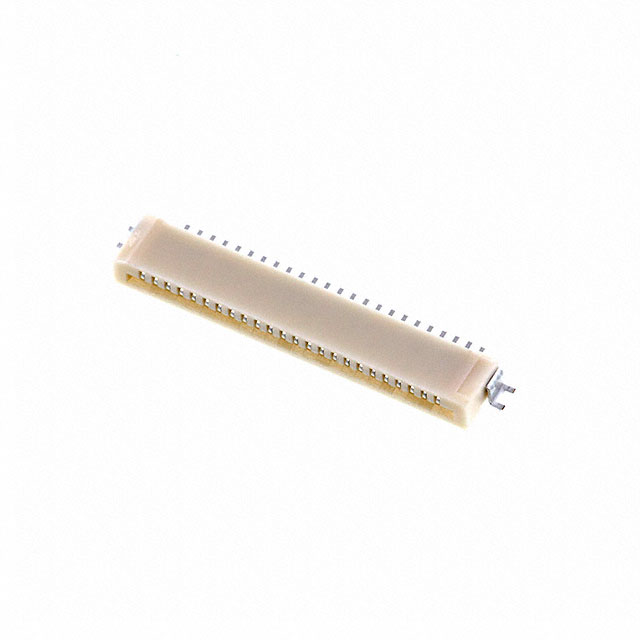

Molex 0527932470	Phosphor Bronze	10	50 V	Solder Retention	Surface Mount Right Angle	Straight	0.5 A	3.1 mm	0.122 in	Tin Bismuth	UL94 V-0	85 °C	-20 C	24	0.039 in	1 mm	Solder	Contacts Top	0.3 mm	FPC

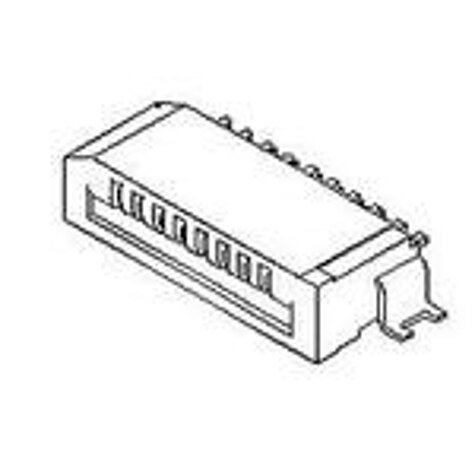

Molex 0527932570	Phosphor Bronze	10	50 V	Solder Retention	Surface Mount Right Angle	Straight	0.5 A	3.1 mm	0.122 in	Tin Bismuth	UL94 V-0	85 °C	-20 C		0.039 in	1 mm	Solder	Contacts Top	0.3 mm	FPC
Molex 0527930770	Phosphor Bronze	10	50 V	Solder Retention	Surface Mount Right Angle	Straight	0.5 A	3.1 mm	0.122 in	Tin Bismuth	UL94 V-0	85 °C	-20 C	7	0.039 in	1 mm	Solder	Contacts Top	0.3 mm	FPC

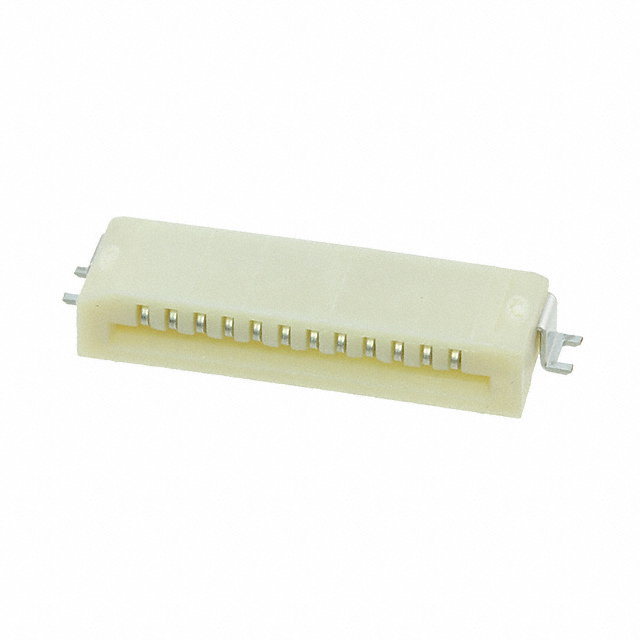

Molex 0527931270	Phosphor Bronze	10	50 V	Solder Retention	Surface Mount Right Angle	Straight	0.5 A	3.1 mm	0.122 in	Tin Bismuth	UL94 V-0	85 °C	-20 C	12	0.039 in	1 mm	Solder	Contacts Top	0.3 mm	FPC
