H2088 Series
Manufacturer: Harwin Inc.
Beta
⌘K

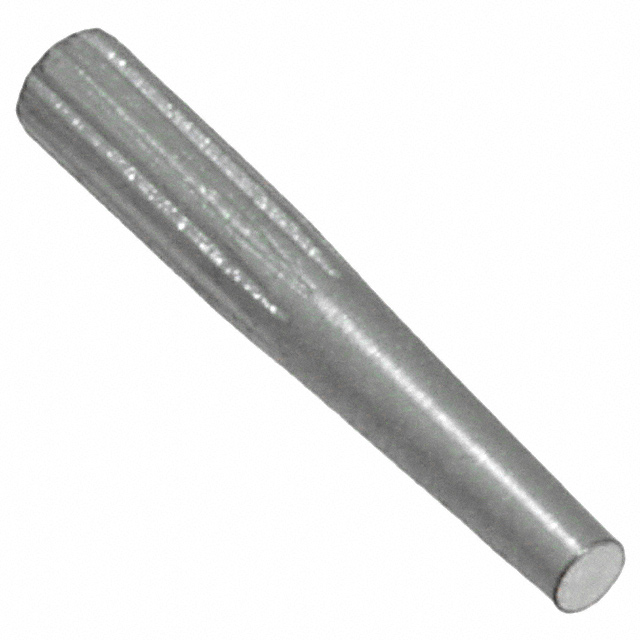

VERTICAL THROUGHBOARD TERMINAL PIN, SPLINE PIN ROHS COMPLIANT: YES
| Part | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Max] | Contact Finish | Mounting Type | Terminal Type | Length - Overall [x] | Length - Overall [x] | Contact Material | Board Thickness [Min] | Board Thickness [Max] | Board Thickness [Max] | Board Thickness [Min] | Insulation | Terminal Style | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 0.039 in 0.99 mm | 0.041 in 1.04 mm | Tin | Through Hole | PC Pin | 7.14 mm | 0.281 in | Brass | 0.063 " | 0.094 in | 2.39 mm | 1.6 mm | Non-Insulated | Single End | Staking Flare |
