93939 Series

Catalog

CONN HEADER R/A 28POS 2.54MM

Part	Contact Shape	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Mounting Type	Shrouding	Number of Rows	Contact Finish - Post	Current Rating (Amps)	Contact Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Connector Type	Voltage Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Number of Positions	Fastening Type	Contact Finish - Mating
Amphenol ICC (FCI) 93939-428HLF	Square	UL94 V-0	0.12 in	3.05 mm	Through Hole Right Angle	Unshrouded	2	Tin	5 A	Male Pin	All	0.1 in	2.54 mm	Header	110 VDC	2.54 mm	0.1 in	Black	0.16 in	4.06 mm	4.83 mm	0.19 in	Solder	2.54 çm	100 çin	Phosphor Bronze	28	Push-Pull
Amphenol ICC (FCI) 93939-124HLF	Square	UL94 V-0	0.12 in	3.05 mm	Through Hole Right Angle	Unshrouded	2	Tin	5 A	Male Pin	All	0.1 in	2.54 mm	Header	110 VDC	2.54 mm	0.1 in	Black	0.16 in	4.06 mm	4.83 mm	0.19 in	Solder	0.76 Ám	30 Áin	Phosphor Bronze	24	Push-Pull	Gold or Gold GXT™

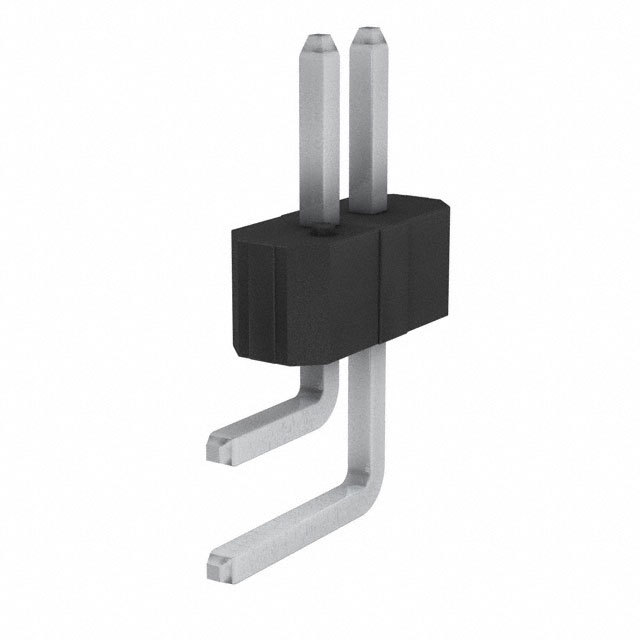

Amphenol ICC (FCI) 93939-402HLF	Square	UL94 V-0	0.12 in	3.05 mm	Through Hole Right Angle	Unshrouded	2	Tin	5 A	Male Pin	All			Header	110 VDC	2.54 mm	0.1 in	Black	0.16 in	4.06 mm	4.83 mm	0.19 in	Solder	2.54 çm	100 çin	Phosphor Bronze	2	Push-Pull
Amphenol ICC (FCI) 93939-412HLF	Square	UL94 V-0	0.12 in	3.05 mm	Through Hole Right Angle	Unshrouded	2	Tin	5 A	Male Pin	All	0.1 in	2.54 mm	Header	110 VDC	2.54 mm	0.1 in	Black	0.16 in	4.06 mm	4.83 mm	0.19 in	Solder	2.54 çm	100 çin	Phosphor Bronze	12	Push-Pull
Amphenol ICC (FCI) 93939-438HLF	Square	UL94 V-0	0.12 in	3.05 mm	Through Hole Right Angle	Unshrouded	2	Tin	5 A	Male Pin	All	0.1 in	2.54 mm	Header	110 VDC	2.54 mm	0.1 in	Black	0.16 in	4.06 mm	4.83 mm	0.19 in	Solder	2.54 çm	100 çin	Phosphor Bronze	38	Push-Pull
Amphenol ICC (FCI) 93939-442HLF	Square	UL94 V-0	0.12 in	3.05 mm	Through Hole Right Angle	Unshrouded	2	Tin	5 A	Male Pin	All	0.1 in	2.54 mm	Header	110 VDC	2.54 mm	0.1 in	Black	0.16 in	4.06 mm	4.83 mm	0.19 in	Solder	2.54 çm	100 çin	Phosphor Bronze	42	Push-Pull
Amphenol ICC (FCI) 93939-408HLF	Square	UL94 V-0	0.12 in	3.05 mm	Through Hole Right Angle	Unshrouded	2	Tin	5 A	Male Pin	All	0.1 in	2.54 mm	Header	110 VDC	2.54 mm	0.1 in	Black	0.16 in	4.06 mm	4.83 mm	0.19 in	Solder	2.54 çm	100 çin	Phosphor Bronze	8	Push-Pull
Amphenol ICC (FCI) 93939-158HLF	Square	UL94 V-0	0.12 in	3.05 mm	Through Hole Right Angle	Unshrouded	2	Tin	5 A	Male Pin	All	0.1 in	2.54 mm	Header	110 VDC	2.54 mm	0.1 in	Black	0.16 in	4.06 mm	4.83 mm	0.19 in	Solder	0.76 Ám	30 Áin	Phosphor Bronze	58	Push-Pull	Gold or Gold GXT™
Amphenol ICC (FCI) 93939-170HLF	Square	UL94 V-0	0.12 in	3.05 mm	Through Hole Right Angle	Unshrouded	2	Tin	5 A	Male Pin	All	0.1 in	2.54 mm	Header	110 VDC	2.54 mm	0.1 in	Black	0.16 in	4.06 mm	4.83 mm	0.19 in	Solder	0.76 Ám	30 Áin	Phosphor Bronze	70	Push-Pull	Gold or Gold GXT™
Amphenol ICC (FCI) 93939-128HLF	Square	UL94 V-0	0.12 in	3.05 mm	Through Hole Right Angle	Unshrouded	2	Tin	5 A	Male Pin	All	0.1 in	2.54 mm	Header	110 VDC	2.54 mm	0.1 in	Black	0.16 in	4.06 mm	4.83 mm	0.19 in	Solder	0.76 Ám	30 Áin	Phosphor Bronze	28	Push-Pull	Gold or Gold GXT™
