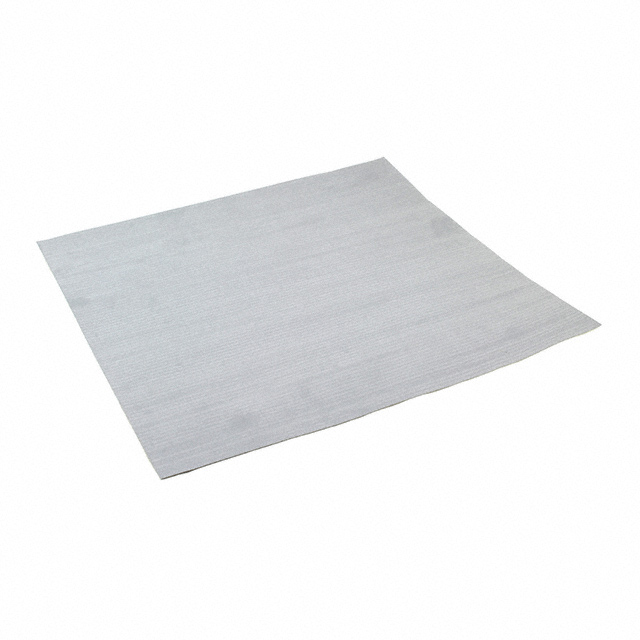

SPK4 Series

Manufacturer: Bergquist

Catalog

THERM PAD 25.4MMX19.05MM GRAY

Part	Shelf Life	Thermal Conductivity	Backing, Carrier	Material	Outline [x]	Outline [y]	Thermal Resistivity	Usage	Color	Shape	Thickness	Thickness	Shelf Life Start	Shelf Life	Adhesive

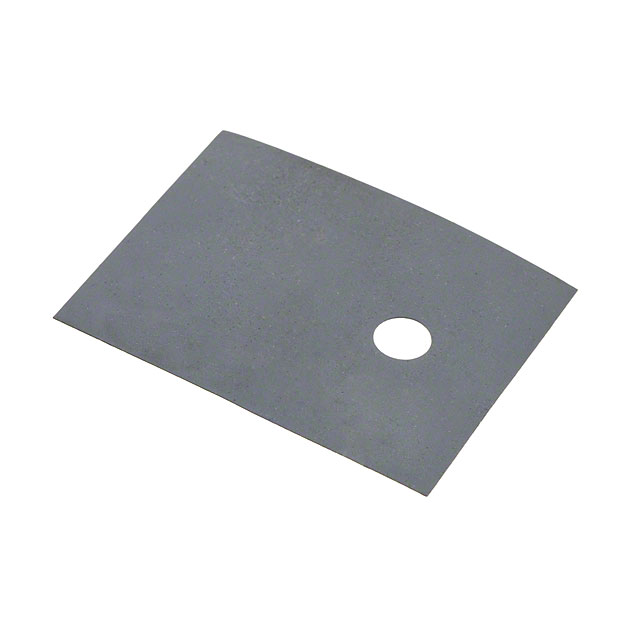

Bergquist SPK4-0.006-00-104	12 Months	0.9 W/m-K	Polyimide	Silicone Rubber	25.4 mm	19.05 mm	0.48 °C/W	TO-218 TO-220 TO-247	Gray	Rectangular	0.006 in	0.152 mm

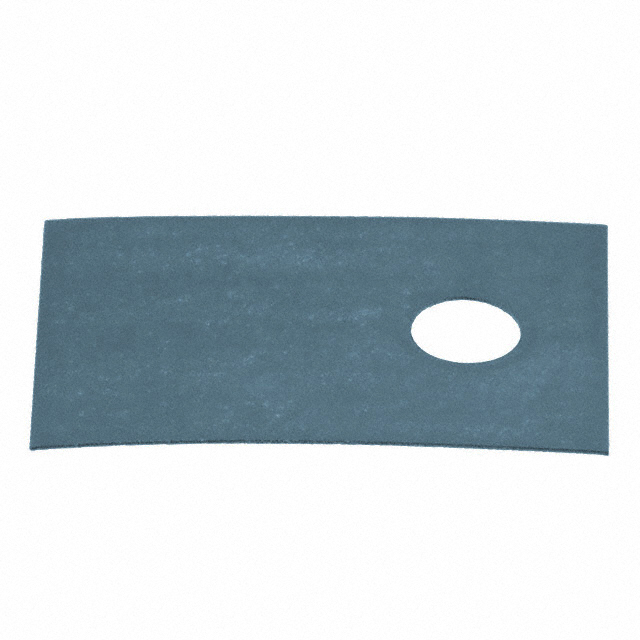

Bergquist SPK4-0.006-00-58	12 Months	0.9 W/m-K	Polyimide	Silicone Rubber	19.05 mm	12.7 mm	0.48 °C/W	TO-220	Gray	Rectangular	0.006 in	0.152 mm	Date of Manufacture
Bergquist SPK4-0.006-00-70		0.9 W/m-K	Polyimide	Silicone Rubber	35.81 mm	20.57 mm	0.48 °C/W	Multi	Gray	Rectangular	0.006 in	0.152 mm
Bergquist SPK4-0.006-00-54		0.9 W/m-K	Polyimide	Silicone Rubber	19.05 mm	12.7 mm	0.48 °C/W	TO-220	Gray	Rectangular	0.006 in	0.152 mm
Bergquist SPK4-0.006-AC-97		0.9 W/m-K	Polyimide	Silicone Rubber	22.61 mm	20.45 mm	0.48 °C/W	RH-10	Gray	Rectangular	0.006 in	0.152 mm		6 Months	Adhesive - One Side
Bergquist 2191342		0.9 W/m-K	Polyimide	Silicone Rubber	304.8 mm	292.1 mm	0.48 °C/W		Gray	Rectangular	0.006 in	0.152 mm
