214525 Series
Manufacturer: Molex
Beta
⌘K

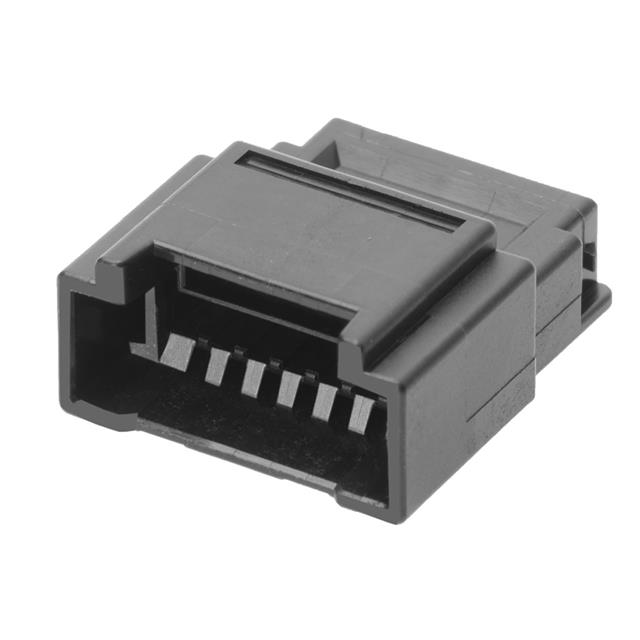

1.25MM PITCH, MICRO-LOCK PLUS PLUG CRIMP HOUSING, SINGLE ROW, 8 CIRCUITS, UL 94V-0, LOW-HALOGEN, BLACK
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Pitch [x] | Pitch [x] | Contact Type | Color | Fastening Type | Connector Type | Number of Rows | Contact Termination | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Free Hanging (In-Line) | -40 °C | 105 ░C | Nylon Polyamide (PA) | 0.049 in | 1.25 mm | Male Pin | Black | Locking Ramp | Plug | 1 | Crimp | 8 |
Molex | Free Hanging (In-Line) | -40 °C | 105 ░C | Nylon Polyamide (PA) | 0.049 in | 1.25 mm | Male Pin | Black | Locking Ramp | Plug | 1 | Crimp | 9 |
 Molex | Free Hanging (In-Line) | -40 °C | 105 ░C | Nylon Polyamide (PA) | 0.049 in | 1.25 mm | Male Pin | Black | Locking Ramp | Plug | 1 | Crimp | 7 |
 Molex | Free Hanging (In-Line) | -40 °C | 105 ░C | Nylon Polyamide (PA) | 0.049 in | 1.25 mm | Male Pin | Black | Locking Ramp | Plug | 1 | Crimp |
