337-011 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 11POS 0.156
| Part | Termination Rows | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Termination | Card Type | Contact Type | Contact Material | Read Out | Mounting Type | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row | Contact Finish | Pitch | Pitch | Gender | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Color | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Solder | Non Specified - Single Edge | Cantilever | Copper Alloy | Single | Through Hole | 11 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 11 | Gold | 3.96 mm | 0.156 in | Female | 4-40 Threaded Insert Top Mount Opening | -40 C | 105 ░C | Green | 1 | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Solder | Non Specified - Single Edge | Cantilever | Copper Alloy | Single | Through Hole | 11 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 11 | Gold | 3.96 mm | 0.156 in | Female | Flush Mount Side Opening Unthreaded | -40 C | 105 ░C | Green | 1 | 0.128 " | 3.25 mm | |

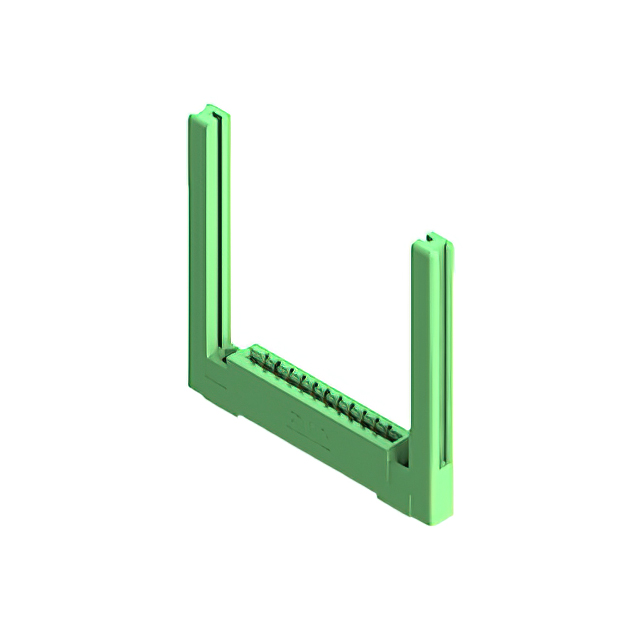

 EDAC Inc. | 1 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Wire Wrap | Non Specified - Single Edge | Cantilever | Copper Alloy | Single | Right Angle Through Hole | 11 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 11 | Gold | 3.96 mm | 0.156 in | Female | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | Green | 1 | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Solder | Non Specified - Single Edge | Cantilever | Copper Alloy | Single | Through Hole | 11 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 11 | Gold | 3.96 mm | 0.156 in | Female | Flush Mount Side Opening Unthreaded | -40 C | 105 ░C | Green | 1 | 0.128 " | 3.25 mm | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Wire Wrap | Non Specified - Single Edge | Cantilever | Copper Alloy | Single | Through Hole | 11 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 11 | Gold | 3.96 mm | 0.156 in | Female | Side Mount Opening Unthreaded | -40 C | 105 ░C | Green | 1 | 0.128 " | 3.25 mm | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Wire Wrap | Non Specified - Single Edge | Cantilever | Copper Alloy | Single | Right Angle Through Hole | 11 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 11 | Gold | 3.96 mm | 0.156 in | Female | M3 Threaded Insert Top Mount Opening | -40 C | 105 ░C | Green | 1 | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Solder | Non Specified - Single Edge | Cantilever | Copper Alloy | Single | Through Hole | 11 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 11 | Gold | 3.96 mm | 0.156 in | Female | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | Green | 1 | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Wire Wrap | Non Specified - Single Edge | Cantilever | Copper Alloy | Single | Through Hole | 11 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 11 | Gold | 3.96 mm | 0.156 in | Female | Flush Mount Side Opening Unthreaded | -40 C | 105 ░C | Green | 1 | 0.128 " | 3.25 mm | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Solder | Non Specified - Single Edge | Cantilever | Copper Alloy | Single | Through Hole | 11 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 11 | Gold | 3.96 mm | 0.156 in | Female | Flush Mount Top Opening Unthreaded | -40 C | 105 ░C | Green | 1 | 0.156 " | 3.96 mm | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Solder | Non Specified - Single Edge | Cantilever | Copper Alloy | Single | Through Hole | 11 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 11 | Gold | 3.96 mm | 0.156 in | Female | -40 C | 105 ░C | Green | 1 | 0.128 " | 3.25 mm |
