PCA9306 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K

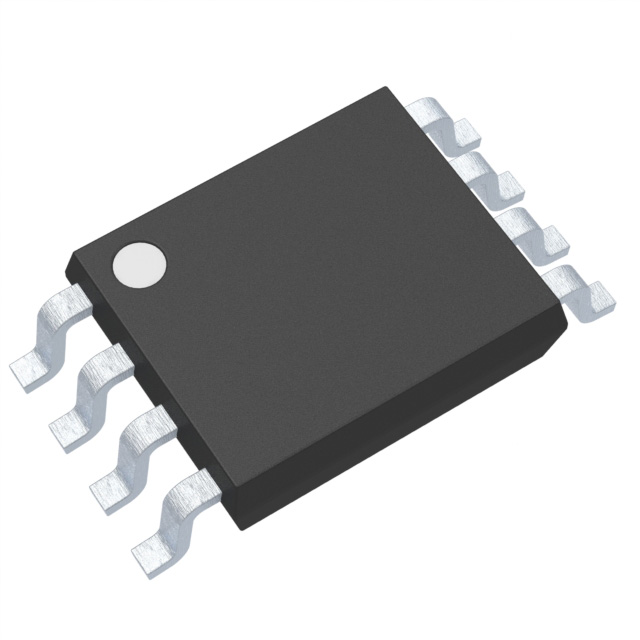

IC TRANSLTR BIDIRECTIONAL 8VSSOP
| Part | Voltage - VCCA [Max] | Voltage - VCCA [Min] | Channels per Circuit | Mounting Type | Package / Case [y] | Package / Case | Package / Case [y] | Output Type | Translator Type | Number of Circuits | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - VCCB [Min] | Voltage - VCCB [Max] | Channel Type | Features | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Freescale Semiconductor - NXP | 3.6 V | 1 V | 2 | Surface Mount | 2.3 mm | 8-VFSOP | 0.091 in | Open Drain | Voltage Level | 1 | 105 °C | -40 °C | 1.8 V | 5.5 V | Bidirectional | Auto-Direction Sensing | |

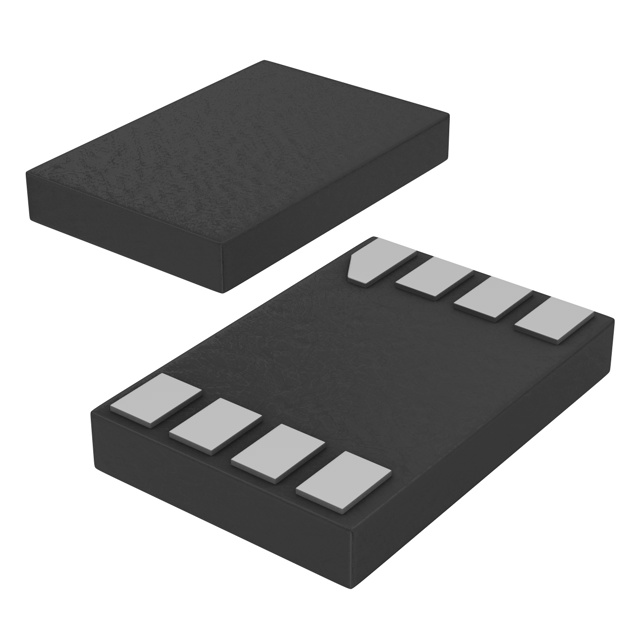

 Freescale Semiconductor - NXP | 3.6 V | 1 V | 2 | Surface Mount | 8-XFDFN | Open Drain | Voltage Level | 1 | 105 °C | -40 °C | 1.8 V | 5.5 V | Bidirectional | Auto-Direction Sensing | 8-XSON SOT996-2 (2x3) | ||
Freescale Semiconductor - NXP | 3.6 V | 1 V | 2 | Surface Mount | 2.3 mm | 8-VFSOP | 0.091 in | Open Drain | Voltage Level | 1 | 105 °C | -40 °C | 1.8 V | 5.5 V | Bidirectional | Auto-Direction Sensing |
