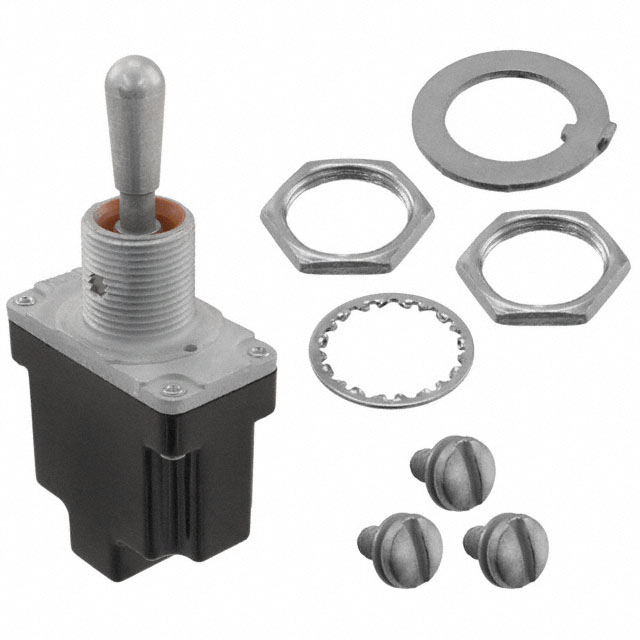

1TL8 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH TOGGLE SPDT 10A 125V
| Part | Actuator Material | Actuator Length [x] | Panel Cutout Dimensions [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Switch Function | Bushing Thread | Mounting Type | Termination Style | Actuator Type | Circuit | Ingress Protection | Current Rating (Amps) | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Nickel Plated | 17.27 mm | 12.4 mm | -65 ░C | 71 °C | 125 V | Mom-Off-Mom | 15/32-32 | Panel Mount | Screw Terminal | Standard Round | SPDT | Environment Sealed | 10 A | Non-Illuminated |
 Honeywell Sensing and Productivity Solutions | Nickel Plated | 26.67 mm | 12.4 mm | -65 ░C | 71 °C | 125 V | Off-Mom | 15/32-32 | Panel Mount | Screw Terminal | Locking Lever | SPST-NO | Environment Sealed | 10 A | Non-Illuminated |
Honeywell Sensing and Productivity Solutions | Nickel Plated | 26.67 mm | 12.4 mm | -65 ░C | 71 °C | 125 V | On-Off-On | 15/32-32 | Panel Mount | Screw Terminal | Locking Lever | SPDT | Environment Sealed | 15 A | Non-Illuminated |
Honeywell Sensing and Productivity Solutions | Nickel Plated | 26.67 mm | 12.4 mm | -65 ░C | 71 °C | 125 V | On-Off | 15/32-32 | Panel Mount | Screw Terminal | Locking Lever | SPST | Environment Sealed | 15 A | Non-Illuminated |
Honeywell Sensing and Productivity Solutions | Nickel Plated | 17.27 mm | 12.4 mm | -65 ░C | 71 °C | 125 V | On-Off | 15/32-32 | Panel Mount | Screw Terminal | Standard Round | SPST | Environment Sealed | 15 A | Non-Illuminated |
Honeywell Sensing and Productivity Solutions | Nickel Plated | 26.67 mm | 12.4 mm | -65 ░C | 71 °C | 125 V | Mom-Off-Mom | 15/32-32 | Panel Mount | Screw Terminal | Locking Lever | SPDT | Environment Sealed | 10 A | Non-Illuminated |
Honeywell Sensing and Productivity Solutions | Nickel Plated | 26.67 mm | 12.4 mm | -65 ░C | 71 °C | 125 V | On-Off-On | 15/32-32 | Panel Mount | Screw Terminal | Locking Lever | SPDT | Environment Sealed | 15 A | Non-Illuminated |
Honeywell Sensing and Productivity Solutions | Nickel Plated | 26.67 mm | 12.4 mm | -65 ░C | 71 °C | 125 V | Mom-Off-Mom | 15/32-32 | Panel Mount | Screw Terminal | Locking Lever | SPDT | Environment Sealed | 10 A | Non-Illuminated |
Honeywell Sensing and Productivity Solutions | 28.2 mm | 12.4 mm | -65 ░C | 71 °C | 125 V | Mom-Off-Mom | 15/32-32 | Panel Mount | Screw Terminal | Locking Lever | SPDT | Environment Sealed | 10 A | Non-Illuminated | |
Honeywell Sensing and Productivity Solutions | Nickel Plated | 26.67 mm | 12.4 mm | -65 ░C | 71 °C | 125 V | On-Off-Mom | 15/32-32 | Panel Mount | Screw Terminal | Locking Lever | SPDT | Environment Sealed | 10 A | Non-Illuminated |
