M13308 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

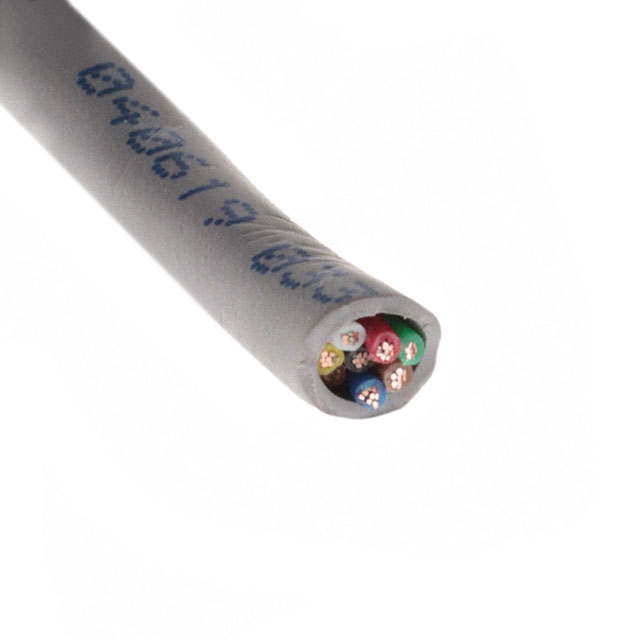

CABLE 8COND 22AWG SLATE 100'
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Cable Type | Jacket Color | Voltage | Wire Gauge | Conductor Insulation | Number of Conductors [custom] | Ratings | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 28 AWG | 7 | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Slate | 300 VDC | 22 AWG | Poly-Vinyl Chloride (PVC) | 8 | UL Style 2576 | 100 ft | 30.5 m | 0.23 in | 5.84 mm | Copper Tinned | 80 °C | -20 ░C |
