2842115 Series

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 5P,2MM,BRK HDR,SRRT,2.8,0.38AU,TB W/CAP

Part	Contact Material	Insulation Height	Insulation Height	Features	Mounting Type	Current Rating (Amps)	Termination	Voltage Rating	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Connector Type	Shrouding	Number of Rows	Number of Positions Loaded	Fastening Type	Contact Finish - Post	Material Flammability Rating	Contact Finish - Mating	Insulation Material	Contact Length - Post [x]	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions

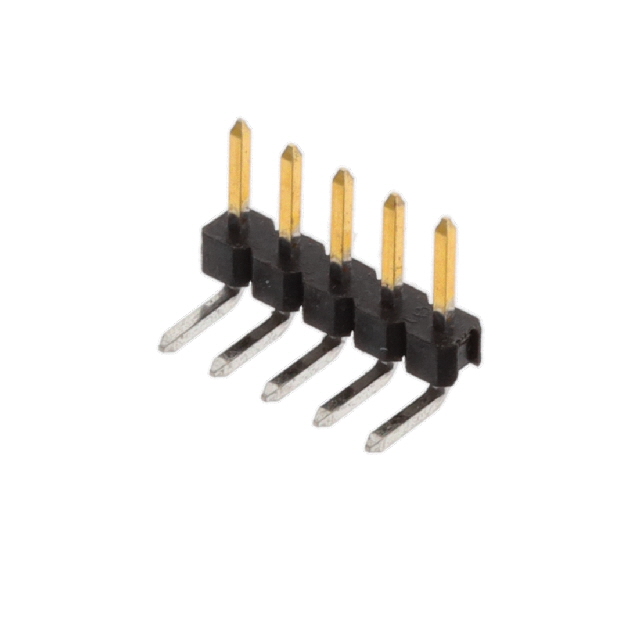

TE Connectivity Raychem Cable Protection 2842115-5	Copper Alloy	1.5 mm	0.059 "	Pick and Place	Through Hole Right Angle	2 A	Solder	125 VAC	4 mm	0.157 in	125 °C	-40 °C	0.079 in	2 mm	Male Pin	Black	2 çm	78.7 çin	Square	Breakaway Header	Unshrouded	1	All	Push-Pull	Tin	UL94 V-0	Gold	Thermoplastic	0.11 in	2.79 mm	15 µin	0.38 µm
TE Connectivity Raychem Cable Protection 1-2842115-0	Copper Alloy	1.5 mm	0.059 "	Pick and Place	Through Hole Right Angle	2 A	Solder	125 VAC	4 mm	0.157 in	125 °C	-40 °C	0.079 in	2 mm	Male Pin	Black	2 çm	78.7 çin	Square	Breakaway Header	Unshrouded	1	All	Push-Pull	Tin	UL94 V-0	Gold	Thermoplastic	0.11 in	2.79 mm	15 µin	0.38 µm	10
