MC-V07-116 Series
Manufacturer: Floyd Bell Inc
Beta
⌘K
BUZZER PIEZO 35.81MM PNL MNT
| Part | Mounting Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Technology | Approval Agency | Termination | Termination | Termination | Driver Circuitry | Input Type | Frequency | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Current - Supply [Max] | Current - Supply [Min] | Port Location | Operating Mode | Ingress Protection | Sound Pressure Level (SPL) | Voltage Range [Min] | Voltage Range [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

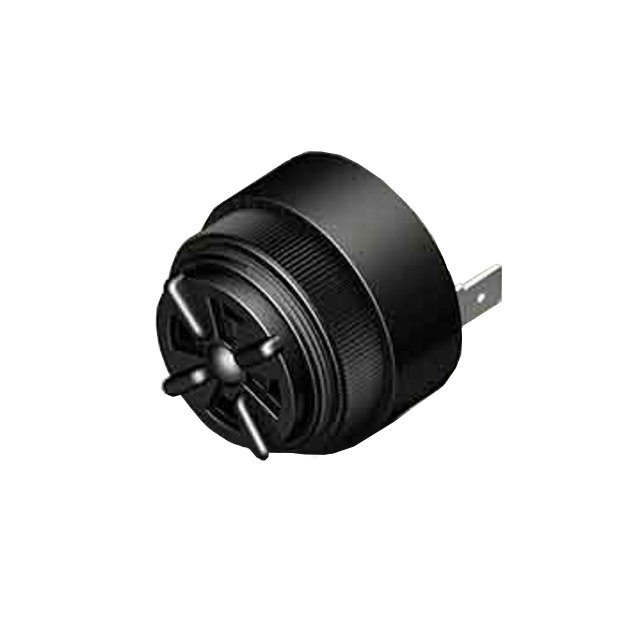

 Floyd Bell Inc | Panel Mount | 1.41 in | 35.81 mm | Piezo | UL UR | Quick Connect Tab | 0.25 " | 6.35 mm | Indicator Internally Driven | DC | 2.9 kHz | 1.14 in | 28.96 mm | 30 mA | 5 mA | Top | Single Tone | IP68 - Dust Tight Waterproof | 93 dB | 3 V | 16 V |

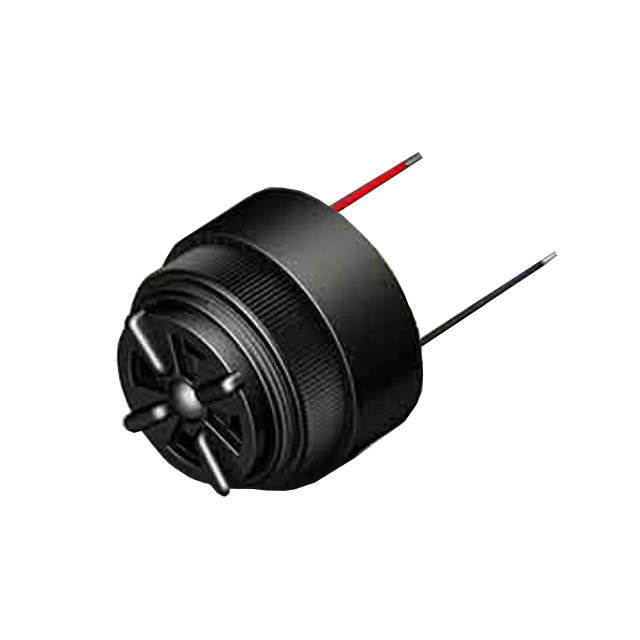

 Floyd Bell Inc | Panel Mount | 1.41 in | 35.81 mm | Piezo | UL UR | Wire Leads | Indicator Internally Driven | DC | 2.9 kHz | 1.14 in | 28.96 mm | 30 mA | 5 mA | Top | Single Tone | IP68 - Dust Tight Waterproof | 93 dB | 3 V | 16 V | ||

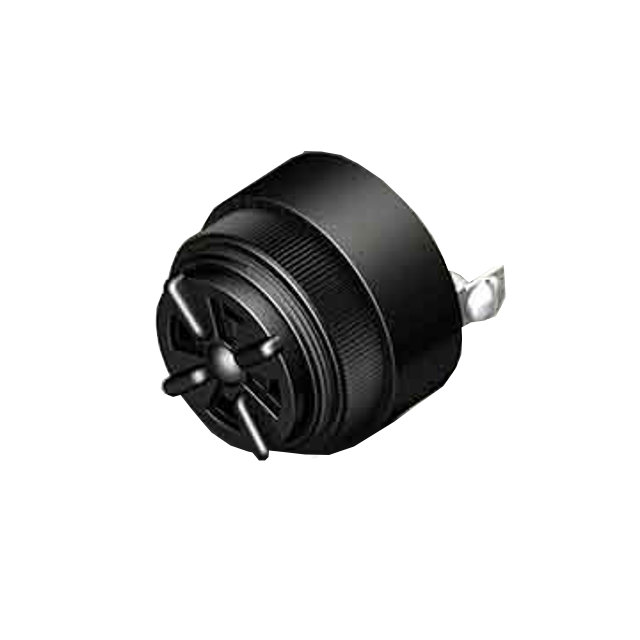

 Floyd Bell Inc | Panel Mount | 1.41 in | 35.81 mm | Piezo | UL UR | Screw Terminal Quick Connect Tab | 0.25 " | 6.35 mm | Indicator Internally Driven | DC | 2.9 kHz | 1.14 in | 28.96 mm | 30 mA | 5 mA | Top | Single Tone | IP68 - Dust Tight Waterproof | 93 dB | 3 V | 16 V |
