M80-853 Series

Catalog

22+22 POS. MALE DIL VERTICAL THROUGHBOARD CONN. LATCHES ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Mated Stacking Heights	Contact Material	Current Rating (Amps)	Style	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Shape	Contact Type	Voltage Rating	Mounting Type	Fastening Type	Termination	Contact Finish - Post	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Number of Positions	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Insulation Material	Insulation Color	Number of Positions [custom]
Harwin Inc. M80-8534442	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	Phosphor Bronze	2.2 A	Board to Board Cable	0.219 in	5.56 mm	UL94 V-0	All	-55 C	125 °C	Shrouded - 4 Wall	29.5 µin	0.75 µm	Circular	Male Pin	800 V	Through Hole	Latch Lock	Solder	Tin	Gold	0.079 "	2 mm	44	2	0.118 in	3 mm	2 mm	0.079 in	Header	Polyphenylene Sulfide (PPS) Glass Filled	Black
Harwin Inc. M80-8531842	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	Phosphor Bronze	2.2 A	Board to Board Cable	0.219 in	5.56 mm	UL94 V-0	All	-55 C	125 °C	Shrouded - 4 Wall	29.5 µin	0.75 µm	Circular	Male Pin	800 V	Through Hole	Latch Lock	Solder	Tin	Gold	0.079 "	2 mm	18	2	0.118 in	3 mm	2 mm	0.079 in	Header	Polyphenylene Sulfide (PPS) Glass Filled	Black

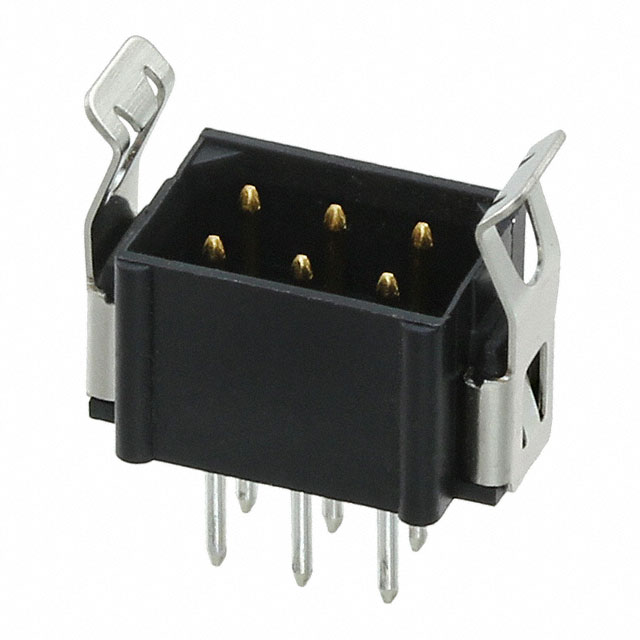

Harwin Inc. M80-8530642	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	Phosphor Bronze	2.2 A	Board to Board Cable	0.219 in	5.56 mm	UL94 V-0	All	-55 C	125 °C	Shrouded - 4 Wall	29.5 µin	0.75 µm	Circular	Male Pin	800 V	Through Hole	Latch Lock	Solder	Tin	Gold	0.079 "	2 mm	6	2	0.118 in	3 mm	2 mm	0.079 in	Header	Polyphenylene Sulfide (PPS) Glass Filled	Black
Harwin Inc. M80-8530442	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	Phosphor Bronze	2.2 A	Board to Board Cable	0.219 in	5.56 mm	UL94 V-0	All	-55 C	125 °C	Shrouded - 4 Wall	29.5 µin	0.75 µm	Circular	Male Pin	800 V	Through Hole	Latch Lock	Solder	Tin	Gold	0.079 "	2 mm	4	2	0.118 in	3 mm	2 mm	0.079 in	Header	Polyphenylene Sulfide (PPS) Glass Filled	Black

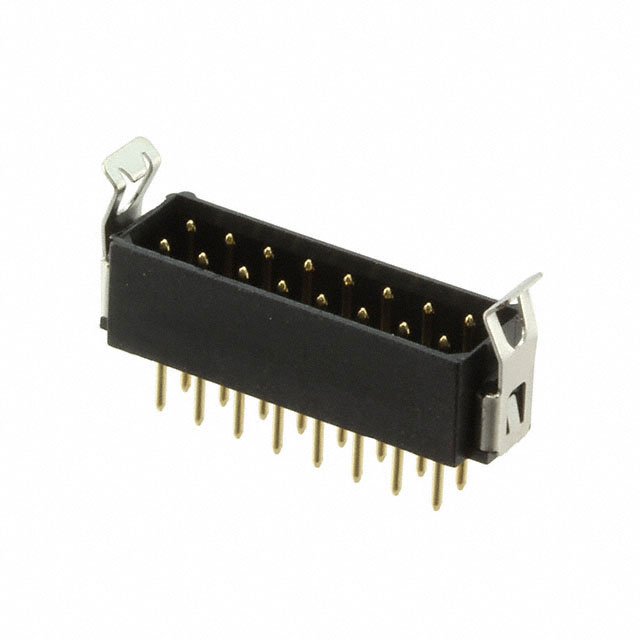

Harwin Inc. M80-8531645			7.23 mm 7.85 mm 10.2 mm 13.51 mm	Phosphor Bronze	2.2 A	Board to Board Cable	0.219 in	5.56 mm	UL94 V-0	All	-55 C	125 °C	Shrouded - 4 Wall	29.5 µin	0.75 µm	Circular	Male Pin	800 V	Through Hole	Latch Lock	Solder		Gold	0.079 "	2 mm	16	2	0.118 in	3 mm	2 mm	0.079 in	Header	Polyphenylene Sulfide (PPS) Glass Filled	Black

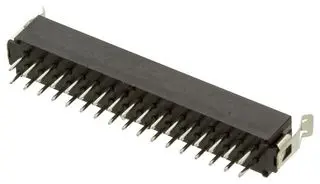

Harwin Inc. M80-8533442	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	Phosphor Bronze	2.2 A	Board to Board Cable	0.219 in	5.56 mm	UL94 V-0	All	-55 C	125 °C	Shrouded - 4 Wall	29.5 µin	0.75 µm	Circular	Male Pin	800 V	Through Hole	Latch Lock	Solder	Tin	Gold	0.079 "	2 mm		2	0.118 in	3 mm	2 mm	0.079 in	Header	Polyphenylene Sulfide (PPS) Glass Filled	Black	34
