17EHD026 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

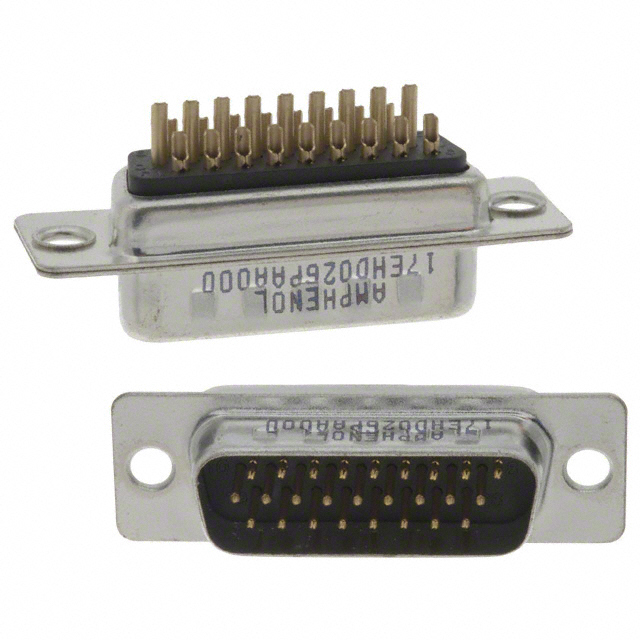

CONN D-SUB HD PLUG 26P VERT SLDR
| Part | Voltage Rating | Color | Contact Form | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mounting Type | Connector Type | Connector Style | Number of Positions | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Material Flammability Rating | Features | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Flange Feature | Flange Feature | Contact Finish | Number of Rows [custom] | Shell Material, Finish | Current Rating (Amps) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | 125 VDC | Black | Stamped | Copper Alloy | -55 C | 105 ░C | Glass Filled Nylon Polyamide (PA) | Through Hole | Plug Male Pins | D-Sub High Density | 26 | Solder | 30 Áin | 0.76 Ám | Signal | UL94 V-0 | Board Lock Grounding Indents | 2 | DA A | Housing/Shell | 4-40 | Gold | 3 | Nickel Plated Steel | 3 A | |
 Amphenol ICC (Commercial Products) | 125 VDC | Black | Stamped | Copper Alloy | -55 C | 105 ░C | Glass Filled Nylon Polyamide (PA) | Through Hole | Receptacle Female Sockets | D-Sub High Density | 26 | Solder | 30 Áin | 0.76 Ám | Signal | UL94 V-0 | Board Lock | 2 | DA A | 4-40 Mating Side Female Screwlock | Gold | 3 | Nickel Plated Steel | 3 A | ||
Amphenol ICC (Commercial Products) | 125 VDC | Black | Stamped | Copper Alloy | -55 C | 105 ░C | Glass Filled Nylon Polyamide (PA) | Free Hanging (In-Line) | Receptacle Female Sockets | D-Sub High Density | 26 | 30 Áin | 0.76 Ám | Signal | UL94 V-0 | 2 | DA A | Housing/Shell (Unthreaded) | Gold | 3 | Nickel Plated Steel | 3 A | ||||
 Amphenol ICC (Commercial Products) | 125 VDC | Black | Stamped | Copper Alloy | -55 C | 105 ░C | Glass Filled Nylon Polyamide (PA) | Free Hanging (In-Line) | Plug Male Pins | D-Sub High Density | 26 | Signal | UL94 V-0 | Grounding Indents | 2 | DA A | Housing/Shell (Unthreaded) | Gold | 3 | Nickel Plated Steel | 3 A | Flash |
