JN2FS04F Series

Catalog

CONN PLUG FMALE 4P SOLDER CUP

Part	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Orientation [x]	Ingress Protection	Color	Number of Positions	Mounting Type	Current Rating (Amps)	Contact Material	Shell Size - Insert	Shell Finish	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Backshell Material, Plating	Fastening Type	Primary Material	Voltage Rating	Connector Type	Features	Insert Material	Cable Opening [Max]	Orientation
JAE Electronics JN2FS04FK1X-R	0.224 "	5.7 mm	0.287 "	7.3 mm	X	IP67 - Dust Tight Waterproof	Black	4	Free Hanging (In-Line) Right Angle	5 A	Copper Alloy	S	Zinc	Zinc Alloy	-20 ░C	100 °C	Silver	Synthetic Resin	Push-Twist	Metal	200 VAC	Plug Female Sockets	Backshell Coupling Nut Rotatable	Synthetic Resin
JAE Electronics JN2FS04FK2X-R	0.256 in	6.5 mm	0.315 in		X	IP67 - Dust Tight Waterproof	Black	4	Free Hanging (In-Line) Right Angle	5 A	Copper Alloy	S	Zinc	Zinc Alloy	-20 ░C	100 °C	Silver	Synthetic Resin	Push-Twist	Metal	200 VAC	Plug Female Sockets	Backshell Coupling Nut Rotatable	Synthetic Resin	8 mm
JAE Electronics JN2FS04FKK-R						IP67 - Dust Tight Waterproof	Black	4	Free Hanging (In-Line) Right Angle	5 A		S			-20 ░C	100 °C	Silver	Synthetic Rubber	Push-Twist		200 VAC	Plug Female Sockets	Backshell Coupling Nut Rotatable			N (Normal)

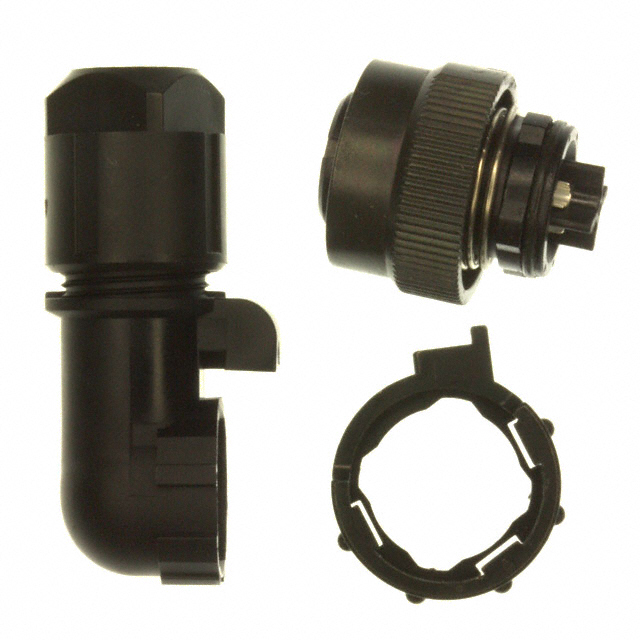

JAE Electronics JN2FS04FK2-R	0.256 in	6.5 mm	0.315 in			IP67 - Dust Tight Waterproof	Black	4	Free Hanging (In-Line) Right Angle	5 A	Copper Alloy	S	Zinc	Zinc Alloy	-20 ░C	100 °C	Silver	Synthetic Resin	Push-Twist	Metal	200 VAC	Plug Female Sockets	Backshell Coupling Nut Rotatable	Synthetic Resin	8 mm	N (Normal)
