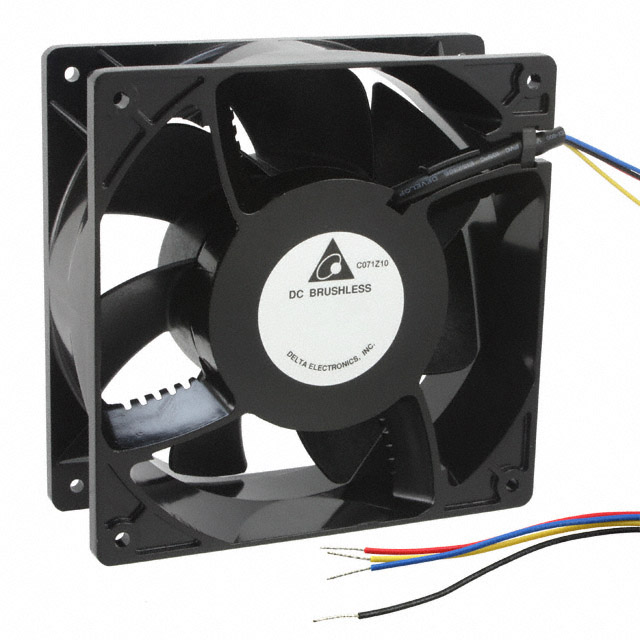

TFA1448 Series
Manufacturer: Delta Electronics
Beta
⌘K
FAN AXIAL 139.7X50.8MM 48VDC
| Part | Material - Blade | Material - Frame | Voltage Range [Max] | Voltage Range [Min] | Current Rating (Amps) | Lifetime @ Temp. | Operating Temperature [Max] | Operating Temperature [Min] | Noise | Features | Termination | Air Flow | Air Flow | Static Pressure | Static Pressure | Voltage - Rated | Weight | Weight | Power (Watts) | Bearing Type | Fan Type | Width [y] | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | Plastic | 56 VDC | 30 VDC | 0.72 A | 70000 Hrs | 70 °C | -10 °C | 62.5 dB | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 4 Wire Leads | 285 CFM | 7.98 m³/min | 1.02 in H2O | 255 Pa | 48 VDC | 1.6 lbs | 725.7 g | 34.56 W | Ball | Tubeaxial | 50.8 mm | 4200 RPM |
