TPS65580 Series
Manufacturer: Texas Instruments
Beta
⌘K
4.5 TO 18V INPUT, 2.5A/1.5A/1.5A TRIPLE SYNC. STEP-DOWN CONVERTER W/ ADVANCED D-CAP2™
| Part | Frequency - Switching | Supplier Device Package | Synchronous Rectifier | Voltage - Input (Min) [Min] | Mounting Type | Output Configuration | Voltage - Input (Max) [Max] | Number of Outputs | Voltage - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Output Type | Package / Case | Package / Case | Current - Output | Function | Topology | Voltage - Output (Min/Fixed) | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Voltage - Input [Max] | Voltage - Input [Min] | Main Purpose | Regulator Topology | Voltage - Output | Contents | Utilized IC / Part | Outputs and Type [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | 700 kHz | 20-HTSSOP | 4.5 V | Surface Mount | Positive | 18 V | 3 | 7 V | 85 C | -40 ¯C | Adjustable | 0.173 " 4.4 mm | 20-PowerTSSOP | 1.5 A 2.5 A | Step-Down | Buck | 0.764 V | |||||||||||||
Texas Instruments | 700 kHz | 20-HTSSOP | 4.5 V | Surface Mount | Positive | 18 V | 3 | 7 V | 85 C | -40 ¯C | Adjustable | 0.173 " 4.4 mm | 20-PowerTSSOP | 1.5 A 2.5 A | Step-Down | Buck | 0.764 V | |||||||||||||

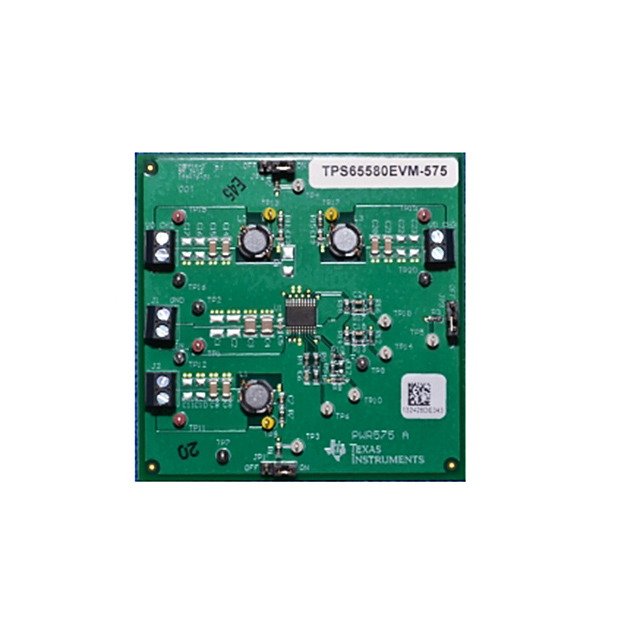

 Texas Instruments | 700 kHz | 1.5 A 2 A | Board(s) | Non-Isolated Non-Isolated Outputs | 3 | Fully Populated | 18 V | 4.5 V | DC/DC Step Down | Buck | 1.2 V 1.5 V 3.3 V | Board(s) | TPS65580 | 3 |
