104351 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 22POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Material	Connector Type	Contact Length - Mating	Contact Length - Mating	Number of Rows [custom]	Termination	Insulation Color	Current Rating (Amps)	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Mounting Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Shrouding	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Type	Number of Positions	Voltage Rating	Style	Contact Length - Post	Contact Length - Post	Contact Shape	Number of Positions [custom]
TE Connectivity AMP Connectors 1-104351-1	2.54 µm	100 µin	All	Copper Alloy	Header Breakaway	0.23 in	5.84 mm	2	Kinked Pin Solder	Black	3 A	Thermoplastic	0.1 in	2.54 mm	105 ░C	-65 ░C	Push-Pull	Tin-Lead	0.09 in	2.29 mm	Through Hole	Gold	0.38 µm	15 µin	11.18 mm	0.44 in	Unshrouded	UL94 V-0	0.1 "	2.54 mm	Male Pin	22	30 VAC	Board to Board Cable	3.05 mm	0.12 in	Square
TE Connectivity AMP Connectors 1-104351-6	2.54 µm	100 µin	All	Copper Alloy	Header Breakaway	0.23 in	5.84 mm	2	Kinked Pin Solder	Black	3 A	Thermoplastic	0.1 in	2.54 mm	105 ░C	-65 ░C	Push-Pull	Tin-Lead	0.09 in	2.29 mm	Through Hole	Gold	0.38 µm	15 µin	11.18 mm	0.44 in	Unshrouded	UL94 V-0	0.1 "	2.54 mm	Male Pin		30 VAC	Board to Board Cable	3.05 mm	0.12 in	Square	34
TE Connectivity AMP Connectors 1-104351-7	2.54 µm	100 µin	All	Copper Alloy	Header Breakaway	0.23 in	5.84 mm	2	Kinked Pin Solder	Black	3 A	Thermoplastic	0.1 in	2.54 mm	105 ░C	-65 ░C	Push-Pull	Tin-Lead	0.09 in	2.29 mm	Through Hole	Gold	0.38 µm	15 µin	11.18 mm	0.44 in	Unshrouded	UL94 V-0	0.1 "	2.54 mm	Male Pin	40	30 VAC	Board to Board Cable	3.05 mm	0.12 in	Square
TE Connectivity AMP Connectors 1-104351-4	2.54 µm	100 µin	All	Copper Alloy	Header Breakaway	0.23 in	5.84 mm	2	Kinked Pin Solder	Black	3 A	Thermoplastic	0.1 in	2.54 mm	105 ░C	-65 ░C	Push-Pull	Tin-Lead	0.09 in	2.29 mm	Through Hole	Gold	0.38 µm	15 µin	11.18 mm	0.44 in	Unshrouded	UL94 V-0	0.1 "	2.54 mm	Male Pin	28	30 VAC	Board to Board Cable	3.05 mm	0.12 in	Square
TE Connectivity AMP Connectors 1-104351-0	2.54 µm	100 µin	All	Copper Alloy	Header Breakaway	0.23 in	5.84 mm	2	Kinked Pin Solder	Black	3 A	Thermoplastic	0.1 in	2.54 mm	105 ░C	-65 ░C	Push-Pull	Tin-Lead	0.09 in	2.29 mm	Through Hole	Gold	0.38 µm	15 µin	11.18 mm	0.44 in	Unshrouded	UL94 V-0	0.1 "	2.54 mm	Male Pin	20	30 VAC	Board to Board Cable	3.05 mm	0.12 in	Square

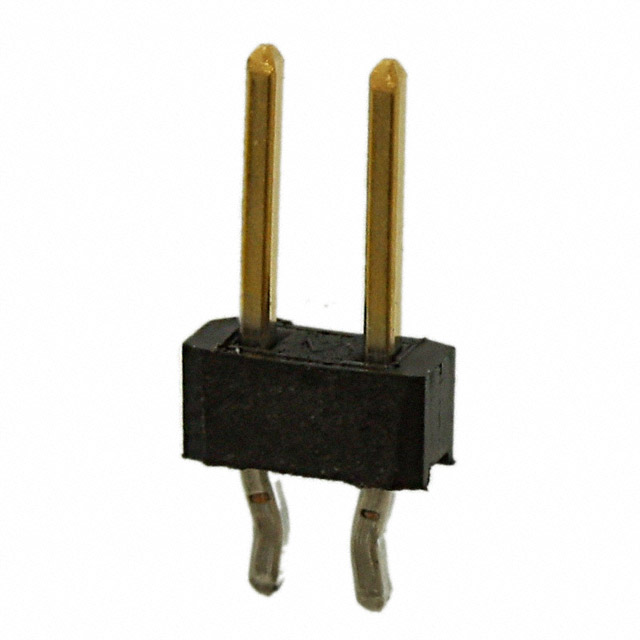

TE Connectivity AMP Connectors 104351-1	2.54 µm	100 µin	All	Copper Alloy	Header Breakaway	0.23 in	5.84 mm	2	Kinked Pin Solder	Black	3 A	Thermoplastic	0.1 in	2.54 mm	105 ░C	-65 ░C	Push-Pull	Tin-Lead	0.09 in	2.29 mm	Through Hole	Gold	0.38 µm	15 µin	11.18 mm	0.44 in	Unshrouded	UL94 V-0			Male Pin	2	30 VAC	Board to Board Cable	3.05 mm	0.12 in	Square
TE Connectivity AMP Connectors 104351-9	2.54 µm	100 µin	All	Copper Alloy	Header Breakaway	0.23 in	5.84 mm	2	Kinked Pin Solder	Black	3 A	Thermoplastic	0.1 in	2.54 mm	105 ░C	-65 ░C	Push-Pull	Tin-Lead	0.09 in	2.29 mm	Through Hole	Gold	0.38 µm	15 µin	11.18 mm	0.44 in	Unshrouded	UL94 V-0	0.1 "	2.54 mm	Male Pin	18	30 VAC	Board to Board Cable	3.05 mm	0.12 in	Square
