C14621R025 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K
CONN HOOD CPLNG BOTTOM SZA16 M25
| Part | Style | Features | Housing Material | Size | Lock Location | Operating Temperature [Min] | Operating Temperature [Max] | Thread Size | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Connector Type | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

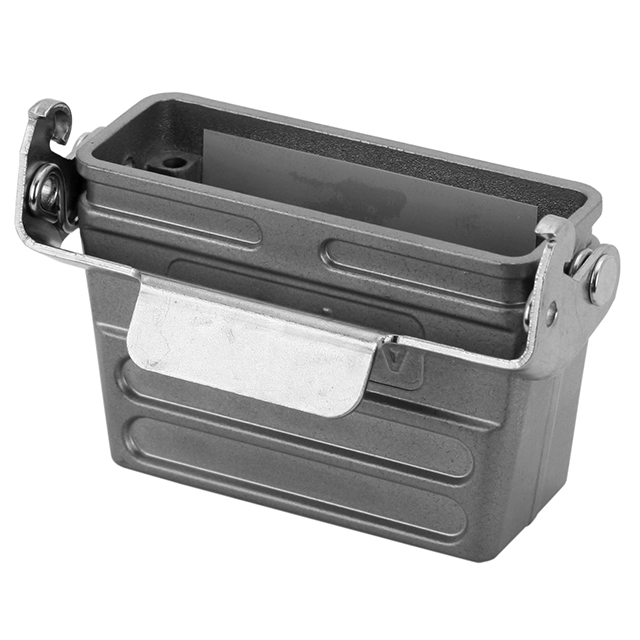

 Amphenol Tuchel Industrial | Bottom Entry Top or Bottom Entry | Cable to Cable | Aluminum Alloy Die Cast | A16 | Locking Clip (1) on Hood Top | -40 C | 100 °C | M25 | 2.559 " | 29.5 mm | 65 mm | 1.161 in | 79 mm | 3.11 " | Hood - Coupling | IP65 - Dust Tight Water Resistant |

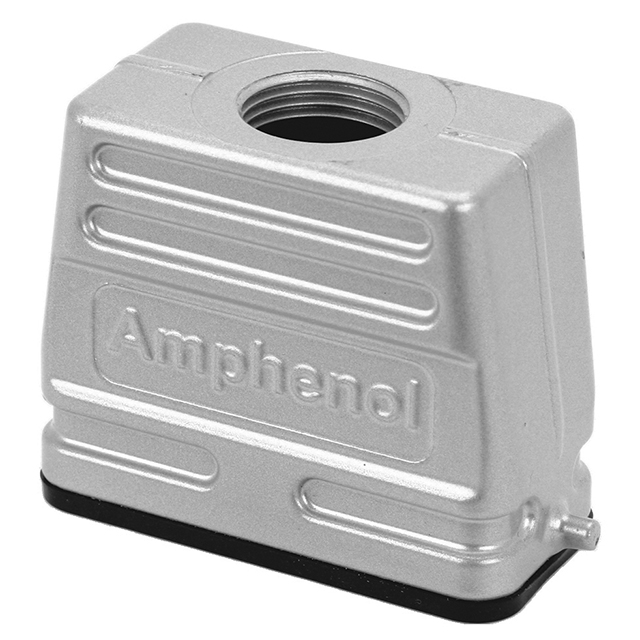

 Amphenol Tuchel Industrial | Top Entry | Aluminum Alloy Die Cast | A16 | Locking Clip (1) on Base Bottom | -40 C | 100 °C | M20 | 2.776 " | 29.5 mm | 70.5 mm | 1.161 in | 79 mm | 3.11 " | Hood | IP65 - Dust Tight Water Resistant | |

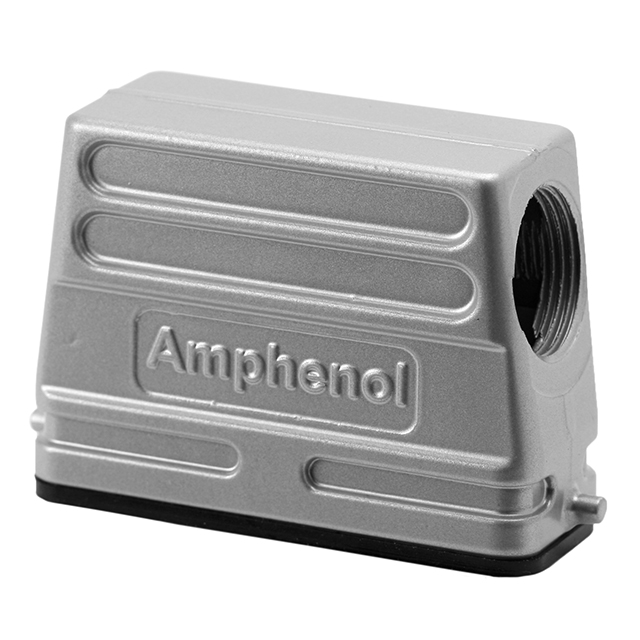

 Amphenol Tuchel Industrial | Side Entry | Aluminum Alloy Die Cast | A16 | Locking Clip (1) on Base Bottom | -40 C | 100 °C | M25 | 2.776 " | 29.5 mm | 70.5 mm | 1.161 in | 79 mm | 3.11 " | Hood | IP65 - Dust Tight Water Resistant |
