SRD1-1F Series

Catalog

SWITCH ROCKER SPDT 21A 14V

Part	Electrical Life	Mechanical Life	Voltage Rating - DC	Switch Function	Actuator Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Illumination Voltage (Nominal)	Ingress Protection	Mounting Type	Current Rating (Amps)	Termination Style	Illumination Type, Color	Actuator Marking	Circuit	Voltage Rating - AC

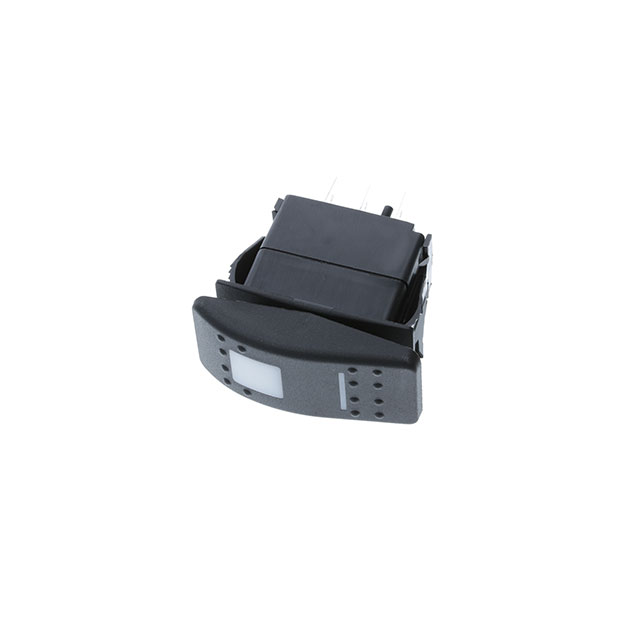

Switch Components SRD1-1F-DC-1-BRR	6000 Cycles	10000 Steps	14 V	On-Off-On	Convex (Reverse V) - Illuminated	36.8 mm	21.2 mm	85 °C	-25 °C	Black	14 VDC	IP56 - Dust Protected Water Resistant	Panel Mount Snap-In	21 A	Quick Connect - 0.250" (6.3mm)	LED Red	No Marking	SPDT

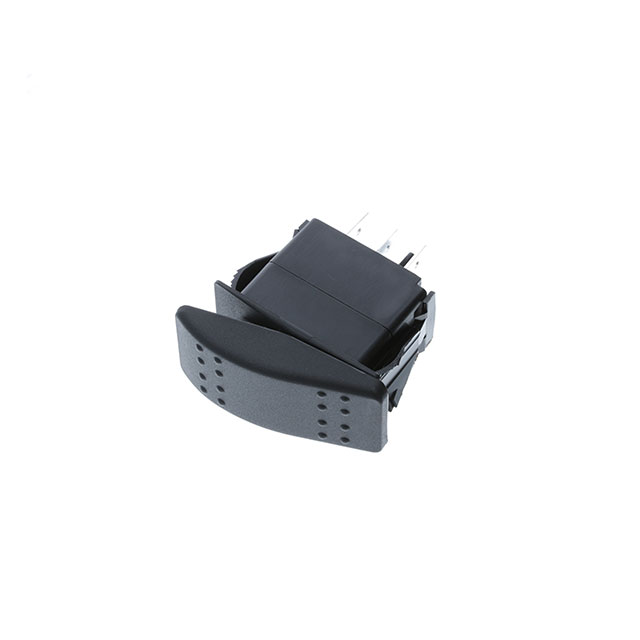

Switch Components SRD1-1F-AC-1-BNN				On-Off-On	Convex (Reverse V)	36.8 mm	21.2 mm	85 °C	-25 °C	Black		IP56 - Dust Protected Water Resistant	Panel Mount Snap-In	20 A	Quick Connect - 0.250" (6.3mm)		No Marking	SPDT	125 V

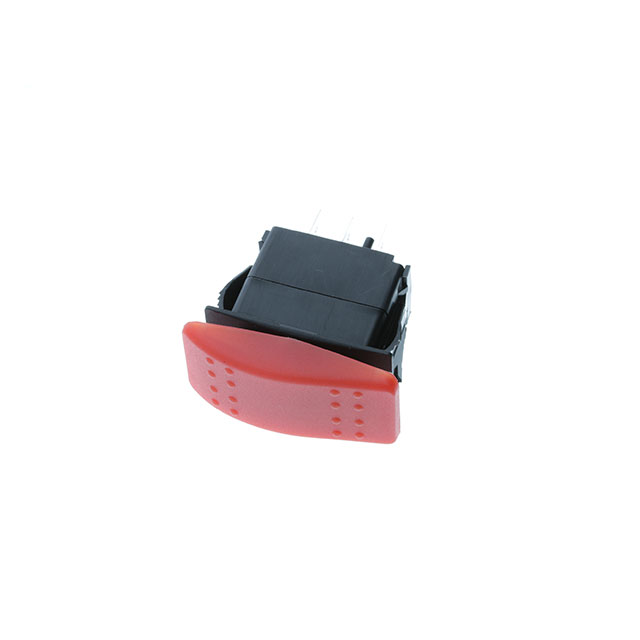

Switch Components SRD1-1F-DC-1-RNN	6000 Cycles	10000 Steps	14 V	On-Off-On	Convex (Reverse V)	36.8 mm	21.2 mm	85 °C	-25 °C	Red		IP56 - Dust Protected Water Resistant	Panel Mount Snap-In	20 A 21 A	Quick Connect - 0.250" (6.3mm)		No Marking	SPDT	125 V
Switch Components SRD1-1F-DC-1-BAA	6000 Cycles	10000 Steps	14 V	On-Off-On	Convex (Reverse V) - Illuminated	36.8 mm	21.2 mm	85 °C	-25 °C	Black	14 VDC	IP56 - Dust Protected Water Resistant	Panel Mount Snap-In	21 A	Quick Connect - 0.250" (6.3mm)	Amber LED	No Marking	SPDT
Switch Components SRD1-1F-DC-1-BNN	6000 Cycles	10000 Steps	14 V	On-Off-On	Convex (Reverse V)	36.8 mm	21.2 mm	85 °C	-25 °C	Black		IP56 - Dust Protected Water Resistant	Panel Mount Snap-In	20 A 21 A	Quick Connect - 0.250" (6.3mm)		No Marking	SPDT	125 V

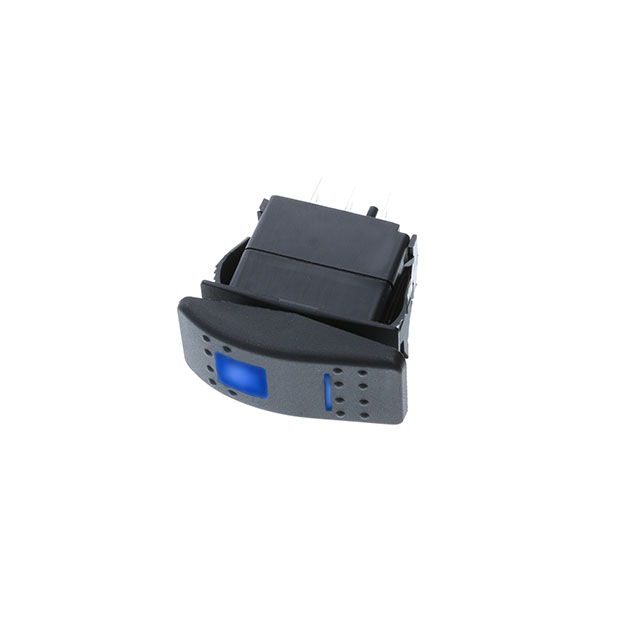

Switch Components SRD1-1F-DC-1-BUU	6000 Cycles	10000 Steps	14 V	On-Off-On	Convex (Reverse V) - Illuminated	36.8 mm	21.2 mm	85 °C	-25 °C	Black	14 VDC	IP56 - Dust Protected Water Resistant	Panel Mount Snap-In	21 A	Quick Connect - 0.250" (6.3mm)	Blue LED	No Marking	SPDT
