3295 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERMINAL,PG R 16-14 6

Part	Termination	Features	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Contact Finish	Mounting Type	Insulation	Thickness	Thickness	Length - Overall [x]	Length - Overall [x]	Contact Material	Color	Terminal Type	Material - Insulation	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Style	Center Contact Material	Conversion Type	Mating Cycles	Impedance	Center Contact Plating	Adapter Series	Convert To (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Fastening Type	Body Material	Adapter Type	Dielectric Material	Convert From (Adapter End)	Insulation Diameter [Max] [diameter]	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Overall	Wire Gauge [Max]	Wire Gauge [Min]	Stud/Tab Size

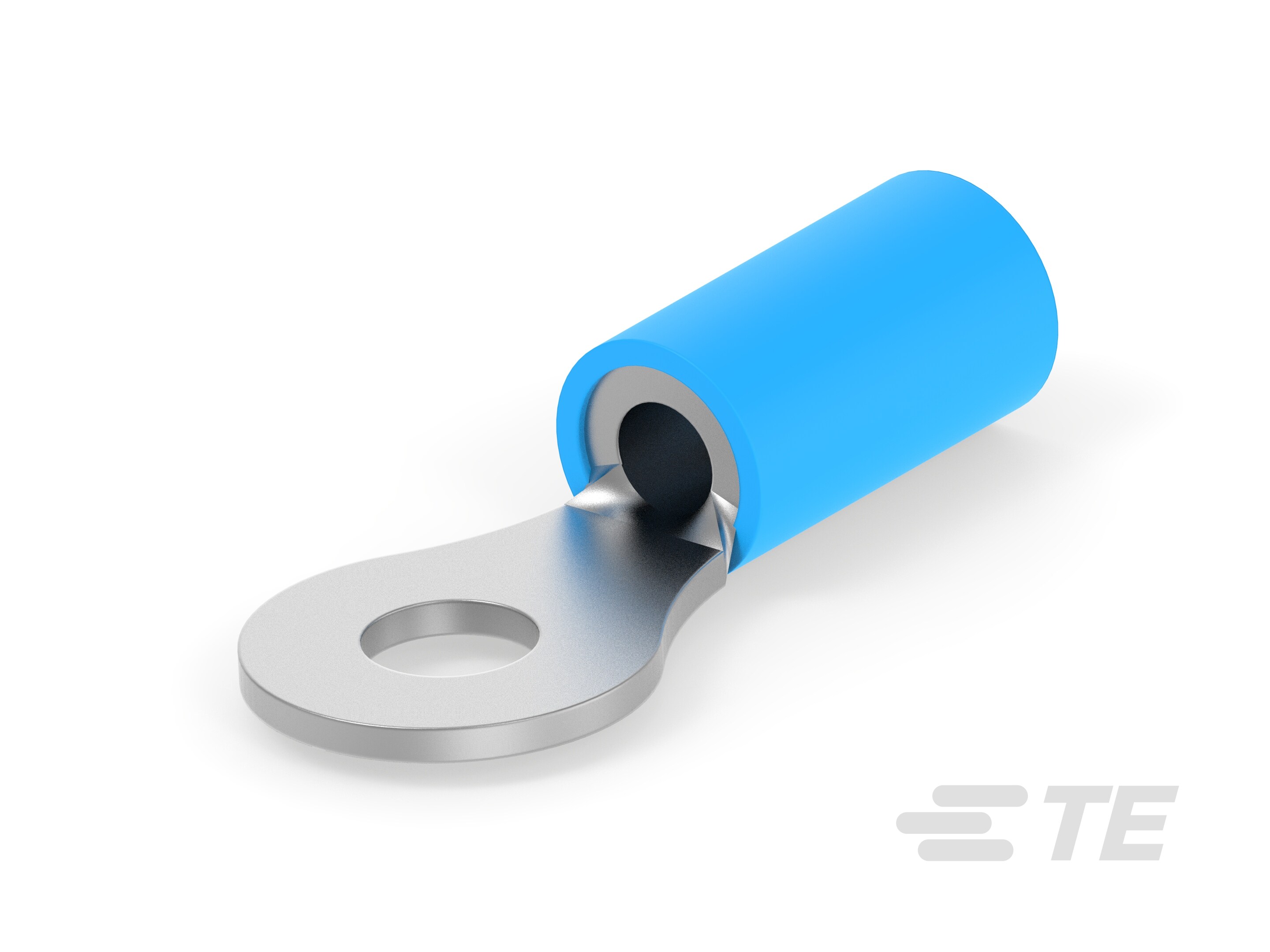

TE Connectivity Raychem Cable Protection 32958	Crimp	Serrated Termination	0.343 in	8.71 mm	6 Stud	Tin	Free Hanging (In-Line)	Insulated	0.031 in	0.79 mm	22.12 mm	0.871 in	Copper	Blue	Circular	Poly-Vinyl Chloride (PVC)	0.145 in 3.68 mm	0.105 in	2.67 mm
TE Connectivity Raychem Cable Protection 329518							Free Hanging (In-Line)													T-Shape	Beryllium Copper Brass	Same Series	500	50 Ohms	Silver	BNC to BNC Dual	BNC Jack Female Socket (2)	85 °C	-55 °C	Nickel	Bayonet Lock	Zinc Die Cast	Plug to Jack	Polymethylpentene (PMP)	BNC Plug Male Pin
TE Connectivity Raychem Cable Protection 32952	Crimp	Serrated Termination			10 Stud	Tin	Free Hanging (In-Line)	Insulated	0.031 in	0.79 mm		0.856 "	Copper	Red	Circular	Poly-Vinyl Chloride (PVC)	3.18 mm	0.08 in	2.03 mm																	0.125 "	7.92 mm	0.312 in	21.74 mm	22 AWG	16 AWG

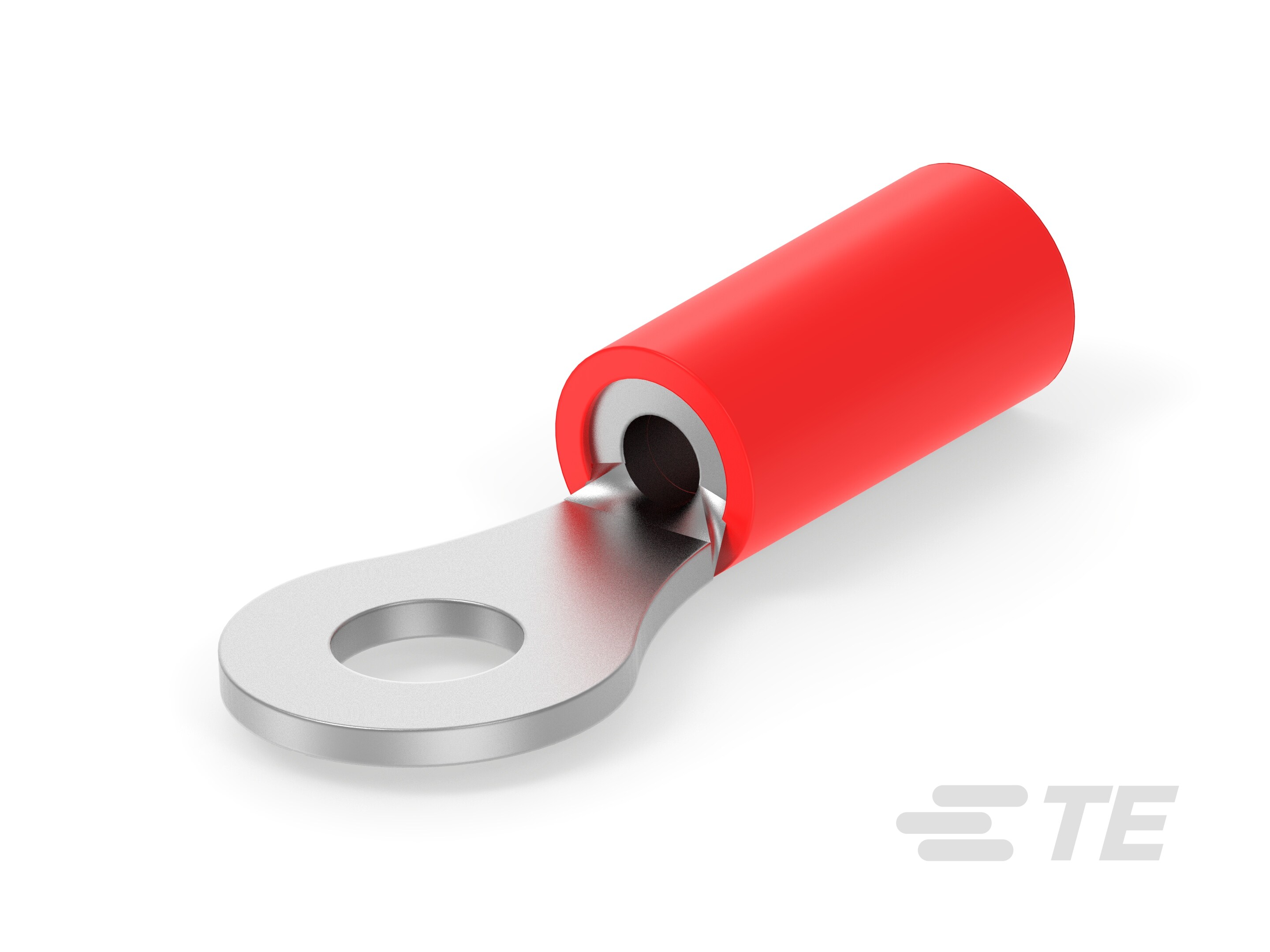

TE Connectivity Raychem Cable Protection 32950	Crimp	Serrated Termination			6 Stud	Tin	Free Hanging (In-Line)	Insulated	0.031 in	0.79 mm		0.856 "	Copper	Red	Circular	Poly-Vinyl Chloride (PVC)	3.18 mm	0.08 in	2.03 mm																	0.125 "	7.92 mm	0.312 in	21.74 mm	22 AWG	16 AWG

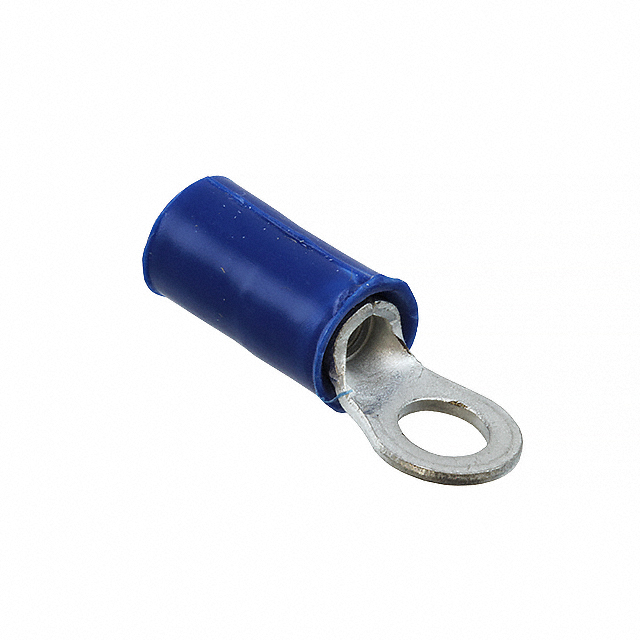

TE Connectivity Raychem Cable Protection 32957	Crimp	Serrated Termination			6 Stud	Tin	Free Hanging (In-Line)	Insulated	0.031 in	0.79 mm	18.16 mm	0.715 "	Copper	Blue	Circular	Poly-Vinyl Chloride (PVC)	0.145 in 3.68 mm	0.105 in	2.67 mm																		6.35 mm	0.25 "

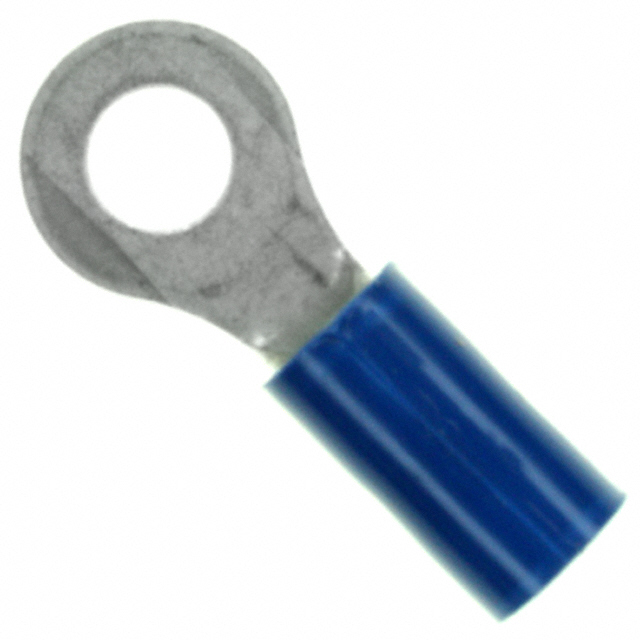

TE Connectivity Raychem Cable Protection 32959	Crimp	Serrated Termination	0.343 in	8.71 mm		Tin	Free Hanging (In-Line)	Insulated	0.031 in	0.79 mm	22.12 mm	0.871 in	Copper	Blue	Circular	Poly-Vinyl Chloride (PVC)	0.145 in 3.68 mm	0.105 in	2.67 mm																							8 Stud
