BRPG1211 Series

Catalog

LED GREEN/RED DIFFUSED SMD

Part	Wavelength - Dominant	Size / Dimension [y]	Size / Dimension [x]	Lens Style	Height (Max) [Max] [z]	Lens Transparency	Mounting Type	Package / Case	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Viewing Angle	Viewing Angle	Lens Size [x]	Lens Size [y]	Lens Color	Wavelength - Peak	Configuration	Color	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test [custom]	Current - Test [custom]	Height (Max) [z]

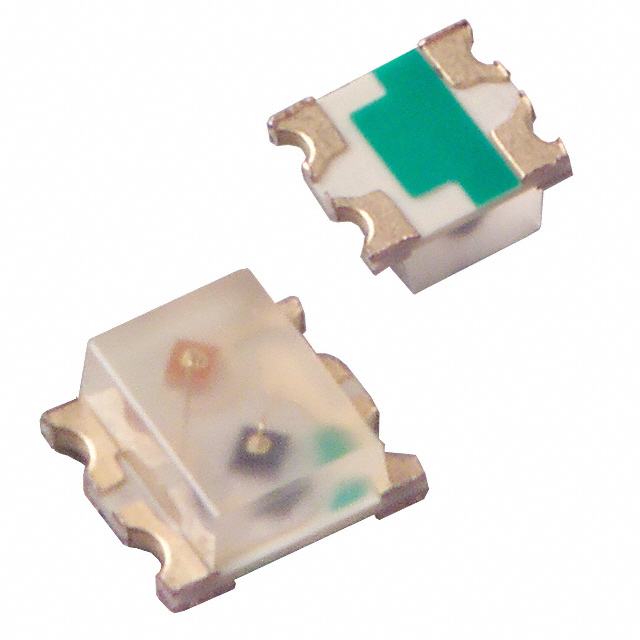

Stanley Electric Co BRPG1211C-TR	567nm Green 647nm Red	1.5 mm	1.6 mm	Rectangle with Flat Top	0.8 mm	Diffused	Surface Mount	0606 (1616 Metric)	2.1 V	1.7 V	139 ° 140 ° 150 ° 168 °	Red	1.1 mm	1.5 mm	White	560 nm 660 nm	Independent	Green Red	6.4 mcd	11.7 mcd	20 mA	20 mA
Stanley Electric Co BRPG1211F-TR	567nm Green 647nm Red	2 mm	3 mm	Rectangle with Domed Top		Diffused	Surface Mount	2-SMD No Lead	2.1 V	1.7 V	140 ° 143 ° 149 ° 150 °		2 mm	1 mm	White	560 nm 660 nm	Common Anode	Green Red	5.2 mcd	17.6 mcd	20 mA	20 mA	1 mm
