55003 Series

Catalog

CONN HEADER HIGH SPEED 36POS PCB

Part	Number of Rows	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Number of Positions	Termination	Color	Features	Number of Columns	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mounting Type	Pitch [x]	Pitch [x]	Connector Style	Number of Positions Loaded	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]

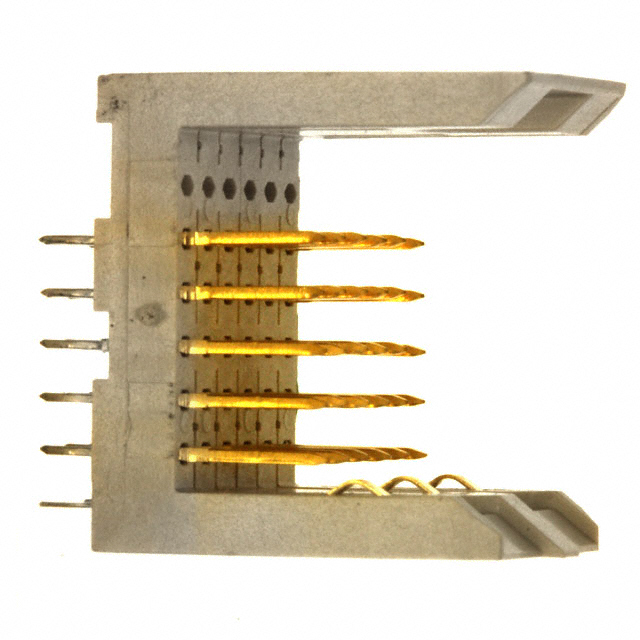

Amphenol ICC (FCI) 55003-101004LF	5	6	30	36	Press-Fit	Natural	Shielded	6	Gold	0.76 Ám	30 Áin	Header Male Pins	Through Hole	0.079 in	2 mm	High Speed	All	UL94 V-0	105 ░C	-55 °C
Amphenol ICC (FCI) 55003-101003	5	6	30	36	Press-Fit	Natural	Shielded	6	Gold	0.76 Ám	30 Áin	Header Male Pins	Through Hole	0.079 in	2 mm	High Speed	All	UL94 V-0	105 ░C	-55 °C
Amphenol ICC (FCI) 55003-101005LF	5	6	30	36	Press-Fit	Natural	Shielded	6	Gold	0.76 Ám	30 Áin	Header Male Pins	Through Hole	0.079 in	2 mm	High Speed	All	UL94 V-0	105 ░C	-55 °C
Amphenol ICC (FCI) 55003-301003LF	5	6	30	36	Press-Fit	Natural	Shielded	6	Gold	1.27 µm	50 µin	Header Male Pins	Through Hole	0.079 in	2 mm	High Speed	All	UL94 V-0	105 ░C	-55 °C
Amphenol ICC (FCI) 55003-301002LF	5	6	30	36	Press-Fit	Natural	Shielded	6	Gold	1.3 Ám	51.2 Áin	Header Male Pins	Through Hole	0.079 in	2 mm	High Speed	All	UL94 V-0	105 ░C	-55 °C
Amphenol ICC (FCI) 55003-101004	5	6	30	36	Press-Fit	Natural	Shielded	6	Gold	0.76 Ám	30 Áin	Header Male Pins	Through Hole	0.079 in	2 mm	High Speed	All	UL94 V-0	105 ░C	-55 °C
Amphenol ICC (FCI) 55003-101002LF	5	6	30	36	Press-Fit	Natural	Shielded	6	Gold	0.76 Ám	30 Áin	Header Male Pins	Through Hole	0.079 in	2 mm	High Speed	All	UL94 V-0	105 ░C	-55 °C
