29612 Series
Manufacturer: Phoenix Contact
Beta
⌘K

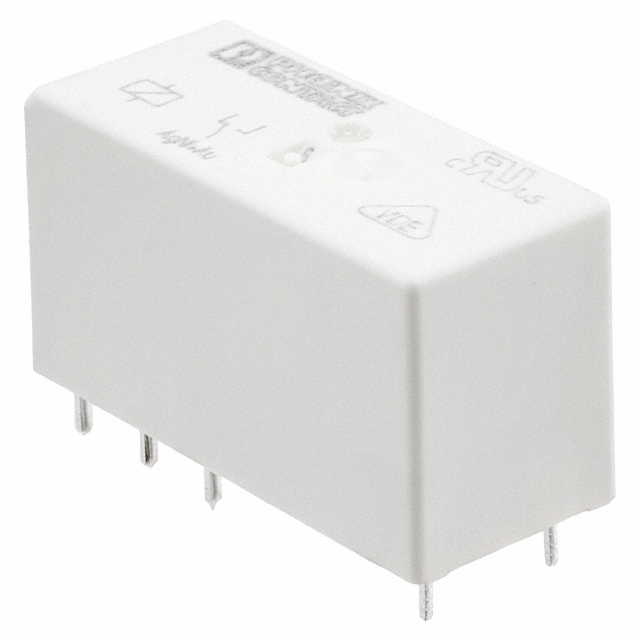

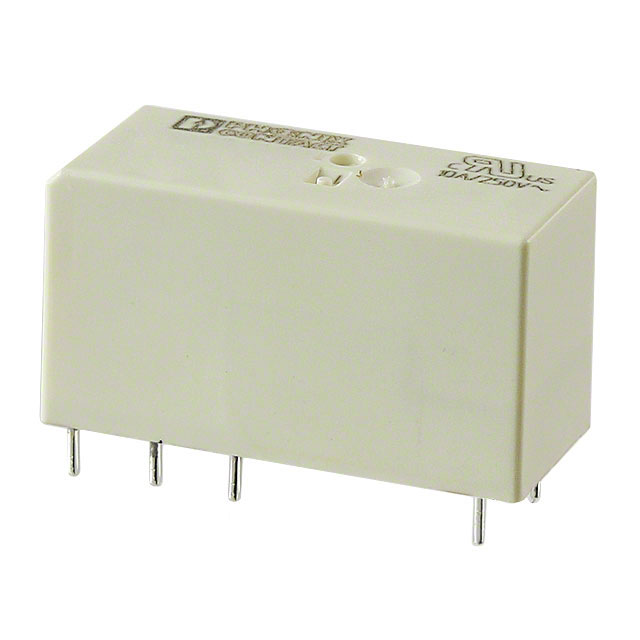

RELAY GEN PURPOSE DPDT 8A 110V
| Part | Coil Resistance | Approval Agency | Switching Voltage | Mounting Type | Contact Form | Operate Time | Contact Material | Release Time | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Termination Style | Contact Rating (Current) | Coil Type | Coil Current | Switching Voltage [Max] | Load - Max Switching [Max] | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 26.6 kOhms | cULus EAC UR | 250 VAC 250 VDC | Through Hole | DPDT (2 Form C) | 7 ms | Silver Nickel (AgNi) | 3 ms | General Purpose | 85 °C | -40 C | 110 VDC | PC Pin | 8 A | Non Latching | 4.1 mA | |||
 Phoenix Contact | 26.6 kOhms | cULus EAC UR | Through Hole | DPDT (2 Form C) | 7 ms | Gold (Au) Silver Nickel (AgNi) | 3 ms | General Purpose | 85 °C | -40 C | 110 VDC | PC Pin | 8 A | Non Latching | 4.1 mA | 250 VAC | 2000 VA | ||
Phoenix Contact | 360 Ohms | cULus EAC UR | 250 VAC 250 VDC | Through Hole | DPDT (2 Form C) | 7 ms | Gold (Au) Silver Nickel (AgNi) | 3 ms | General Purpose | 85 °C | -40 C | 12 VDC | PC Pin | 8 A | Non Latching | 33 mA | |||
Phoenix Contact | 1440 Ohms | cULus EAC UR | Through Hole | DPDT (2 Form C) | 7 ms | Gold (Au) Silver Nickel (AgNi) | 3 ms | General Purpose | 85 °C | -40 C | 24 VDC | PC Pin | 8 A | Non Latching | 17 mA | 250 VAC | 2000 VA | ||

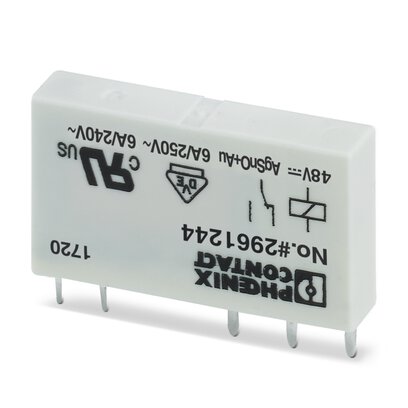

 Phoenix Contact | 960 Ohms | cUR EAC UR VDE | Through Hole | SPDT (1 Form C) | Gold (Au) Silver (Ag) | General Purpose | 85 °C | -40 C | 48 VDC | PC Pin | 6 A | Non Latching | 50 mA | 250 VAC | 1500 VA | ||||

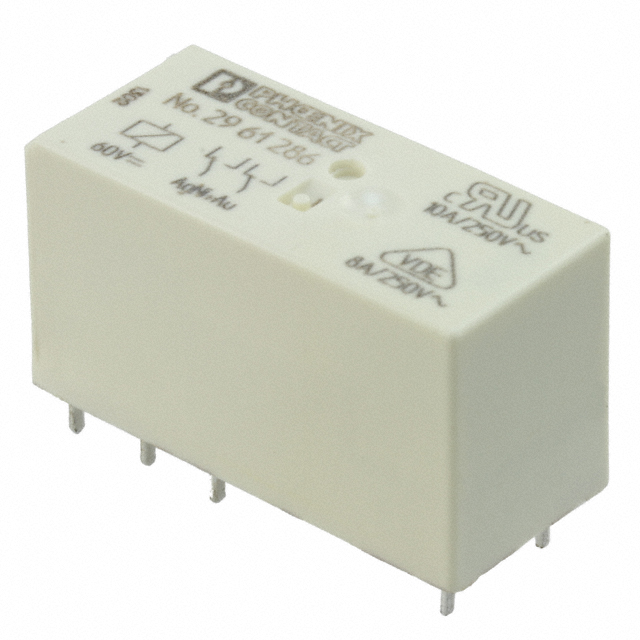

 Phoenix Contact | 7.34 kOhms | cULus UR VDE | Through Hole | DPDT (2 Form C) | 7 ms | Gold (Au) Silver Nickel (AgNi) | 3 ms | General Purpose | 85 °C | -40 C | 60 VDC | PC Pin | 8 A | Non Latching | 8.2 mA | 250 VAC | 2000 VA |
