45373 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

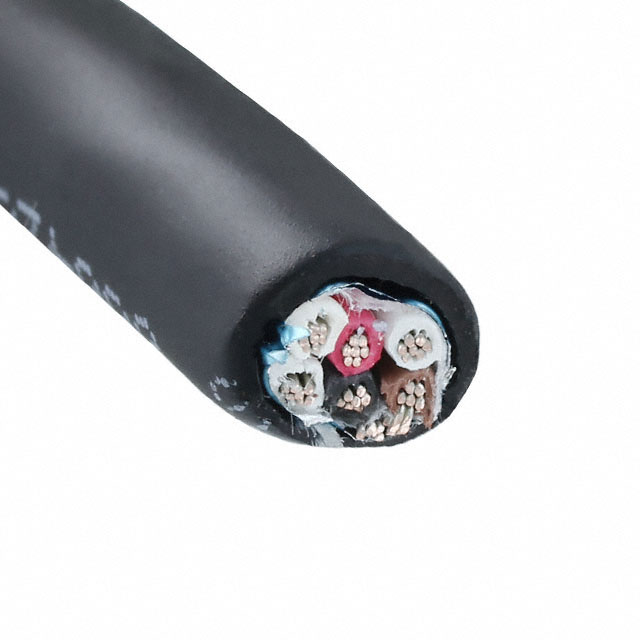

MULTI-PAIR 6COND 18AWG BLK FEET
| Part | Spool Size | Spool Size | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Shield Material | Jacket Color | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Length | Wire Gauge | Number of Conductors | Ratings | Shield Type | Shield Coverage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 1000 ft | 304.8 m | 1.143 mm | 0.045 in | Biological Compatibility Drain Wire Rip Cord | Aluminum | Black | Thermoplastic Elastomer (TPE) | 16 | 30 AWG | Copper Tinned | -50 °C | 125 °C | 300 V | Multi-Pair | 0.378 in | 9.6 mm | Thermoplastic Elastomer (TPE) | Enter Number of Feet in Order Quantity | 18 AWG | 6 | ISO 10993 | Foil | 100 % | ||
ALPHA WIRE | 1.143 mm | 0.045 in | Biological Compatibility Drain Wire Rip Cord | Aluminum | Black | Thermoplastic Elastomer (TPE) | 16 | 30 AWG | Copper Tinned | -50 °C | 125 °C | 300 V | Multi-Pair | 0.378 in | 9.6 mm | Thermoplastic Elastomer (TPE) | 18 AWG | 6 | ISO 10993 | Foil | 100 % | 30.5 m | 100 ft |
